The Bosch Rexroth Indramat MSK060B-0600-NN-M3-UG0-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features a motor size of 060 and a standard design. This servomotor uses natural convection cooling, offers IP65 protection, and operates within an ambient temperature range of 0 to 40°C. It comes with a plain shaft and rotatable 240° encoder connector, using Hiperface interface and capacitive multiturn absolute encoder technology.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

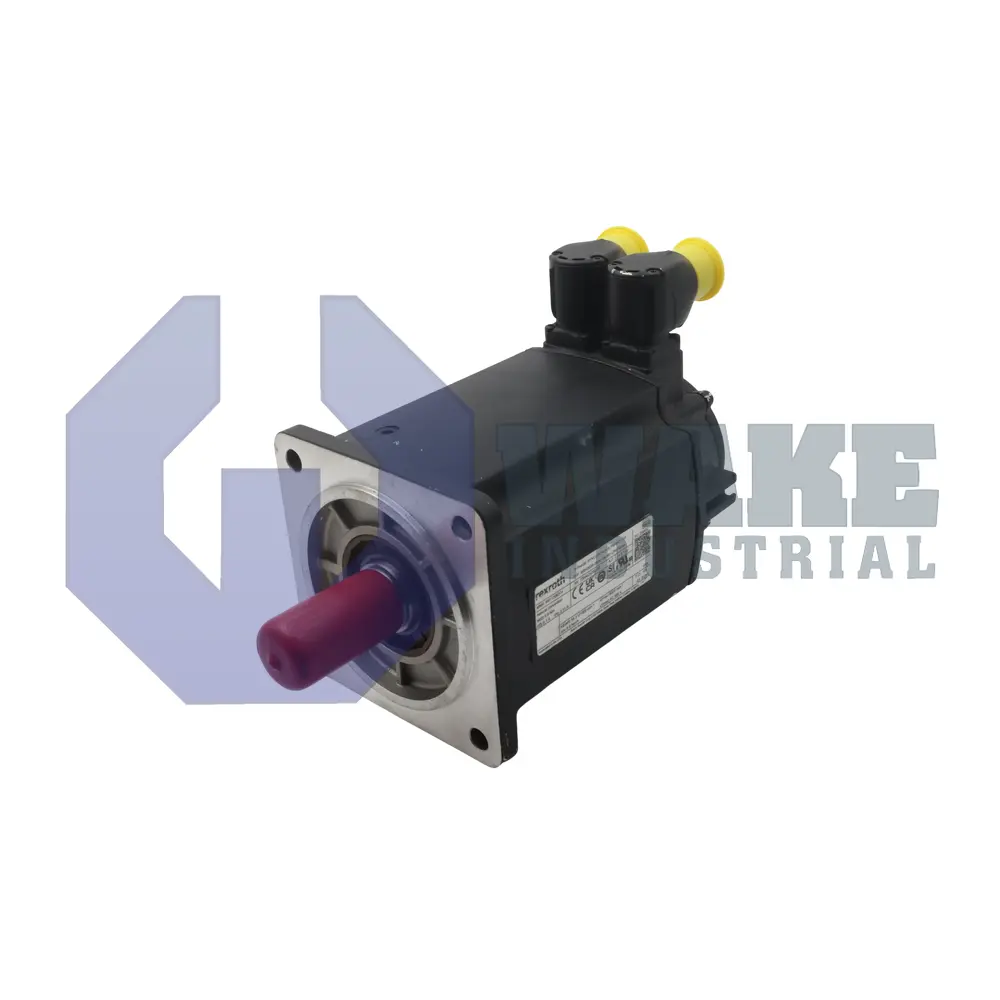

The MSK060B-0600-NN-M3-UG0-NNNN is a brushless AC servomotor manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series for industrial motion control in compact machine assemblies. As an IndraDyn S synchronous servomotor, it converts drive current into accurately controlled torque. This supports positioning tables, packaging machinery, and other automation axes that require repeatable speed profiles. The brushless design reduces wear associated with mechanical commutation and supports consistent servo response during frequent start-stop cycles. The motor is supplied without a holding brake, so static holding must be provided externally when needed.
In operation, the motor dissipates heat through natural convection, so it can be mounted without external blowers or liquid circuits. Its die-cast housing meets the IP65 protection rating, which blocks dust and low-pressure water jets and permits installation outside sealed cabinets. Rotor position feedback travels through the Hiperface interface, and this bidirectional link carries absolute position data and electronic motor data to the controller. The internal measuring system resolves one mechanical turn into 16 signal periods, and its capacitive scanning principle maintains stable signals despite moisture or magnetic interference. The sealed housing and passive cooling arrangement suit machine layouts where added cooling hardware would take up valuable space.
The mechanical envelope follows size 060 with length code B, giving the motor a compact footprint for space-limited installations. A plain shaft delivers torque directly to couplings, and the motor uses winding code 0600 to match the impedance expected by compatible IndraDrive supply modules. Thermal endurance is supported by class 155 insulation, enabling continuous duty in ambient temperatures from 0 to 40 °C without forced cooling. The encoder connector can rotate 240°, which helps align the cable with available installation space, and the multiturn absolute encoder retains position after power is removed. Rotatable connector positioning is useful when the motor is installed near guarding or within tight machine frames, because the cable can exit in a more convenient direction.
Frequently Asked Questions about MSK060B-0600-NN-M3-UG0-NNNN:
Q: How is the MSK060B-0600-NN-M3-UG0-NNNN servo motor cooled?
A: The MSK060B-0600-NN-M3-UG0-NNNN motor uses natural convection cooling, so it operates without forced air or liquid cooling systems.
Q: Does the MSK060B-0600-NN-M3-UG0-NNNN motor include a holding brake?
A: This model is manufactured without a holding brake.
Q: What is special about the encoder connector on the MSK060B-0600-NN-M3-UG0-NNNN?
A: The MSK060B-0600-NN-M3-UG0-NNNN features a rotatable encoder connector that can be adjusted up to 240°.
Q: What encoder features are present on the MSK060B-0600-NN-M3-UG0-NNNN motor?
A: The MSK060B-0600-NN-M3-UG0-NNNN provides multiturn absolute feedback using Hiperface interface with 16 signal periods and capacitive technology.
Q: What is the protection rating of the MSK060B-0600-NN-M3-UG0-NNNN motor?
A: This servomotor is rated for IP65 protection, enabling use in environments with dust and water spray exposure.
