Product Description:

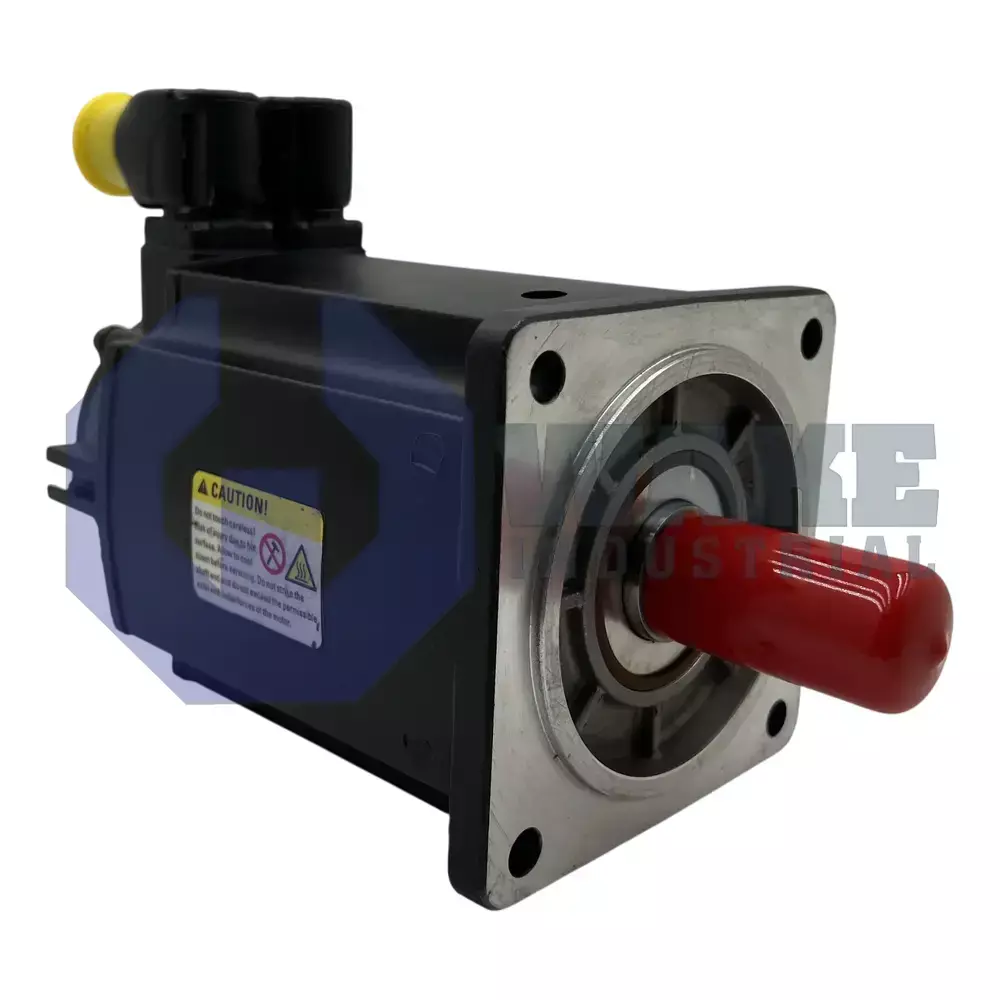

The MSK060B-0600-NN-M2-UG0-RNNN is a synchronous servomotor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. As a torque source for industrial automation, the unit converts controlled three-phase electrical energy into precise mechanical rotation that can be synchronized with motion controllers. This operating role supports packaging lines, pick-and-place modules, and other positioning tasks where repeatable movement is required. In servo applications, that controlled rotation lets the machine follow programmed speed changes, acceleration ramps, and stopping points with consistent repeatability during cyclic operation. Its compact housing also helps the motor fit equipment layouts where installation space is limited.

Thermal management relies on natural convection, eliminating the need for forced airflow or liquid cooling. The enclosure meets IP65, helping protect internal components from dust and water jets commonly present on production floors. Feedback is transmitted through an EnDat2.1 interface, which sends digital position data directly to the drive for closed-loop control. Inside the encoder, the optical scanning system produces 2048 signal periods, and interpolation provides the fine angular resolution needed for accurate servo response. Because the sensing principle is optical, nearby magnetic fields do not interfere with the position signal.

The feedback plug uses a 240° rotatable connector, allowing the cable exit angle to be adjusted after mounting in compact machines. The encoder also provides multiturn absolute feedback, so the axis can retain position information across multiple revolutions and return to operation without a homing cycle after power is restored. Power reaches the load through a plain shaft, which allows direct coupling to pulleys or hubs where minimal backlash is preferred. Thermal endurance is supported by insulation class 155, and the 0600 winding supports continuous duty in ambient temperatures from 0 to 40 °C without derating. The motor has size 060 with length code B and is supplied without a holding brake, so standstill holding must be provided by drive torque or an external locking device.
