The Bosch Rexroth Indramat MSK060B-0600-NN-M1-UG1-NSNN is a synchronous servomotor from the MSK IndraDyn S Synchronous Motors series. It features natural convection cooling and a rotatable encoder connector with Hiperface interface and optical multiturn absolute encoder technology. This model is equipped with an electrically-released holding brake with 10 Nm torque and has a protection rating of IP65.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

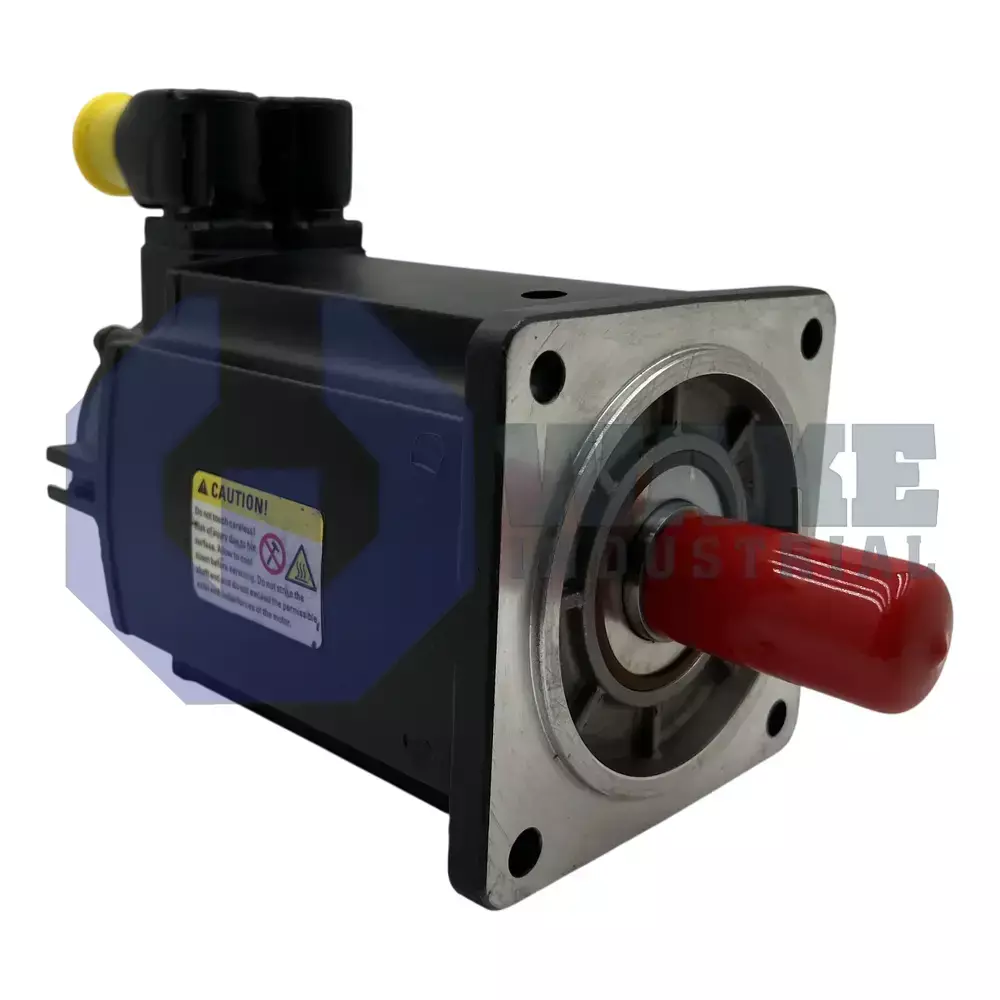

The MSK060B-0600-NN-M1-UG1-NSNN is a synchronous servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. It is used in industrial automation for speed and position control where compact dimensions and fast dynamic response are required. In automated equipment, the motor provides controlled rotary motion for indexing, handling, and synchronized transfer tasks that depend on accurate acceleration and stable speed regulation. It is well suited to packaging, assembly, and material-handling axes where installation space is limited and repeatable motion is essential.
This MSK060 frame unit relies on natural convection to remove heat from the stator windings, so no external fan or liquid circuit is needed. An enclosure rating of IP65 helps protect internal components from dust and low-pressure water jets during washdown. A rotatable 240° connector improves installation flexibility by allowing the feedback cable to exit in several directions. Position data is transmitted through the Hiperface interface, and the integrated optical scale produces 128 signal periods per mechanical revolution for interpolation by the drive. The motor has size code 060 and length designation B, which correspond to its frame geometry and continuous torque capability while keeping the overall envelope compact for multi-axis assemblies. That compact form helps when several motors must be mounted close together on the same machine section.
An electrically released holding brake provides 10 Nm of static torque to help prevent rotation when the controller is de-energized. The feedback system uses an optical scanning principle with a multi-turn absolute counter, so shaft position can be tracked across multiple revolutions without battery support. The motor is approved for standard-duty use and explosion-protected zones, and its windings use insulation class 155 to withstand elevated copper temperatures. Continuous operation is permitted in ambient conditions from 0–40 °C, and the 0600 winding code matches the electrical characteristics expected by compatible IndraDrive power stages during closed-loop servo operation.
Frequently Asked Questions about MSK060B-0600-NN-M1-UG1-NSNN:
Q: Does the MSK060B-0600-NN-M1-UG1-NSNN motor include a holding brake?
A: This model has an electrically-released holding brake that provides a holding brake torque of 10 Nm.
Q: What type of encoder is used on the MSK060B-0600-NN-M1-UG1-NSNN motor?
A: The MSK060B-0600-NN-M1-UG1-NSNN servomotor uses a multiturn absolute optical encoder with 128 signal periods and Hiperface interface.
Q: What is the protection rating of the MSK060B-0600-NN-M1-UG1-NSNN servomotor?
A: The motor has a protection rating of IP65, providing good resistance to dust and water ingress.
Q: How is the MSK060B-0600-NN-M1-UG1-NSNN servomotor cooled?
A: Natural convection provides cooling for the MSK060B-0600-NN-M1-UG1-NSNN servo motor, eliminating the need for external cooling devices.
Q: What is the operating ambient temperature range for the MSK060B-0600-NN-M1-UG1-NSNN servo motor?
A: This unit is rated for operation in ambient temperatures ranging from 0 to 40°C.
