Product Description:

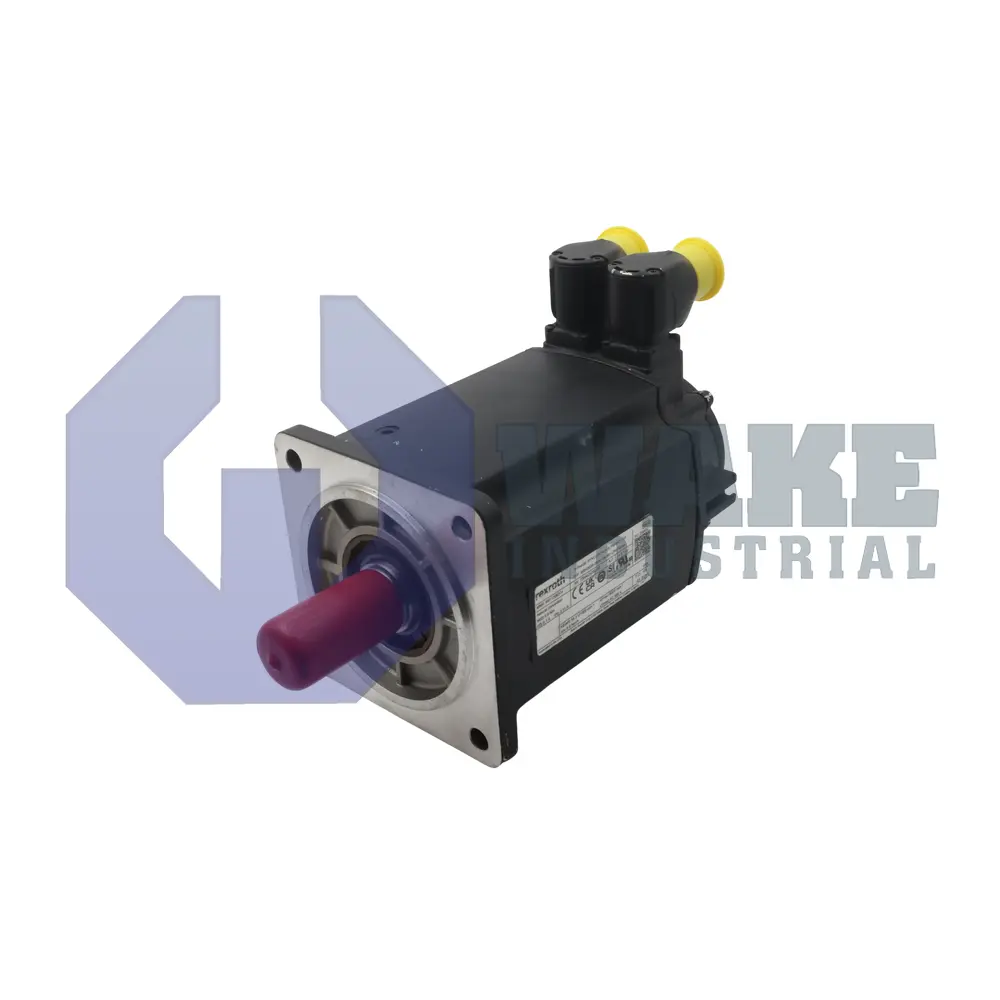

The MSK060B-0300-NN-M3-UG0-NNNN is a synchronous servomotor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It converts controlled three-phase power from an IndraDrive controller into accurate rotary motion for positioning and velocity control in automated equipment. Supplied in a standard mechanical design, the motor fits compact machinery layouts and provides the dynamic response needed for packaging stations, gantries, and material-handling axes. Its operating concept suits applications that require repeatable motion, stable speed regulation, and direct integration with closed-loop servo control.

Heat generated by the stator windings is removed through natural convection, so the housing relies on ambient airflow instead of forced cooling. The feedback connector is rotatable through 240°, which allows the plug position to be aligned with the cable path and helps reduce strain at the connection point. Position data is transferred over the Hiperface interface, combining analog sine-cosine signals with a digital communication channel for encoder data. Inside the encoder, a resolution of 16 signal periods per mechanical turn works with drive interpolation to support fine position evaluation. The sensing system uses capacitive technology, which helps maintain reliable signal detection in environments affected by vibration or magnetic influence.

The encoder is a multi-turn absolute type, so the drive can retain position information across multiple shaft revolutions after power is restored. Mechanical output is delivered through a plain shaft, allowing torque transfer by friction couplings or other hub arrangements instead of a keyed connection. The motor is supplied without a holding brake, so any static load must be secured by the drive or by external mechanical means when the axis is idle. Frame size 060 with length B provides a compact motor envelope for medium-duty servo tasks. The 0300 winding is matched to the electrical operating point expected by compatible drive amplifiers, supporting the intended current and voltage relationship during normal operation.
