Product Description:

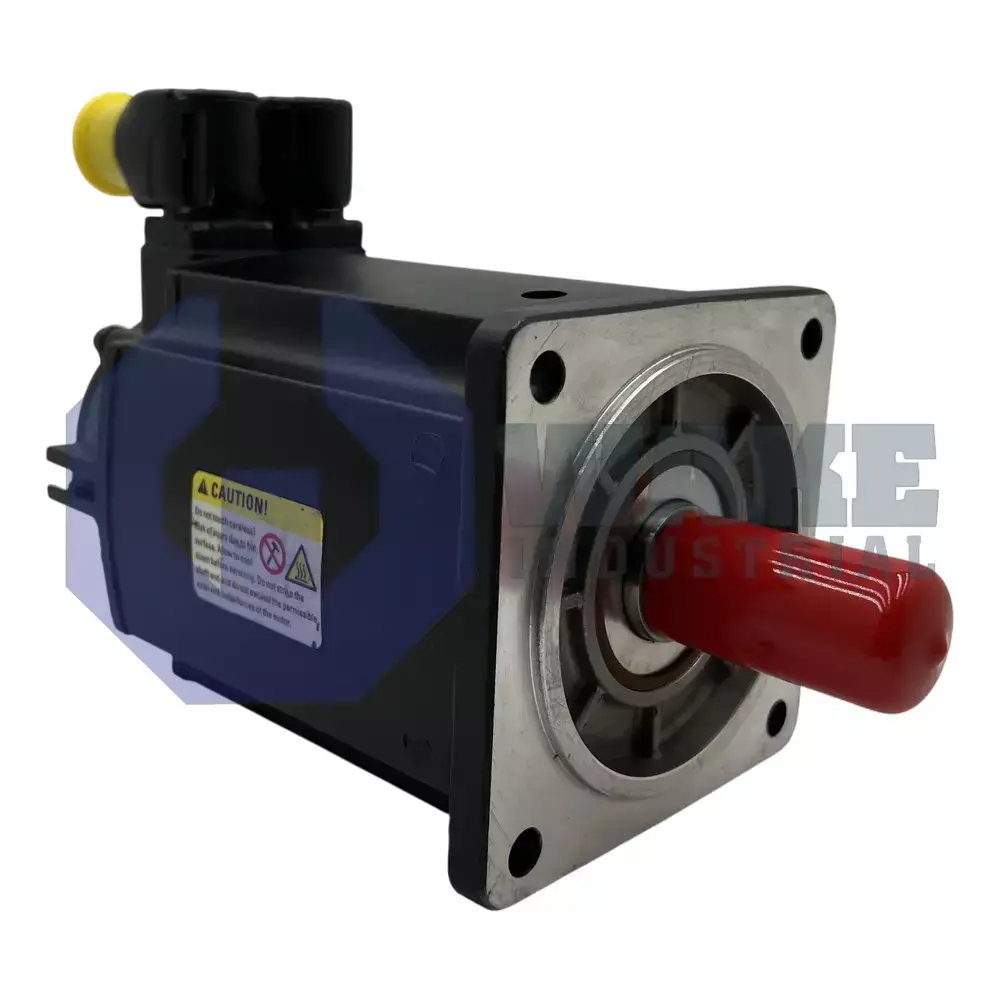

The MSK060B-0300-NN-M2-UG1-RNNN is a synchronous servo motor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Intended for electrically commutated drive systems, the unit converts drive current into controlled torque and speed for automated pick-and-place modules, packaging axes, and CNC positioning stages on industrial lines. Its permanent-magnet rotor, when paired with a suitable IndraDrive controller, delivers precise feedback-based motion while maintaining a compact footprint for moderate load requirements.

Thermal regulation is handled by natural convection, eliminating the need for external blowers and allowing installation in sealed cabinets. The motor has a frame size of 060, which corresponds to a 60 mm stator pitch, and winding code 0300 indicates the coil turns and impedance associated with its nominal current range. The motor uses an optical encoder head that communicates through an EnDat2.1 serial interface, so the controller reads position and diagnostic data on a single pair of conductors. The motor length B increases active stack height for higher continuous torque, while the plain shaft simplifies coupling to gearheads or timing pulleys. A design with increased concentricity keeps radial runout low and supports smooth rotation at elevated speeds.

The feedback line exits through a rotatable 240° connector, enabling cable routing either upward or sideways without stressing the harness. Position information is delivered at 2048 signal periods per mechanical revolution, and the multiturn absolute format retains position data across multiple revolutions even when power is removed. For static holding or vertical axes, an electrically released brake supplies 10 Nm of counter-torque and engages automatically when the drive is disabled. The unobstructed housing lets waste heat dissipate through the motor surface and keeps the overall dimensions compact.
