The Bosch Rexroth Indramat MSK060B-0300-NN-M1-UG1-NSNN is part of the MSK IndraDyn S Synchronous Motors series and features a plain shaft with a holding brake providing 10 Nm of torque. This synchronous servomotor has natural convection cooling, IP65 protection rating, and supports multiturn absolute optical encoders with Hiperface interface. It is designed for standard and explosion protection, with a rotatable encoder connector and operates in ambient temperatures from 0 to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

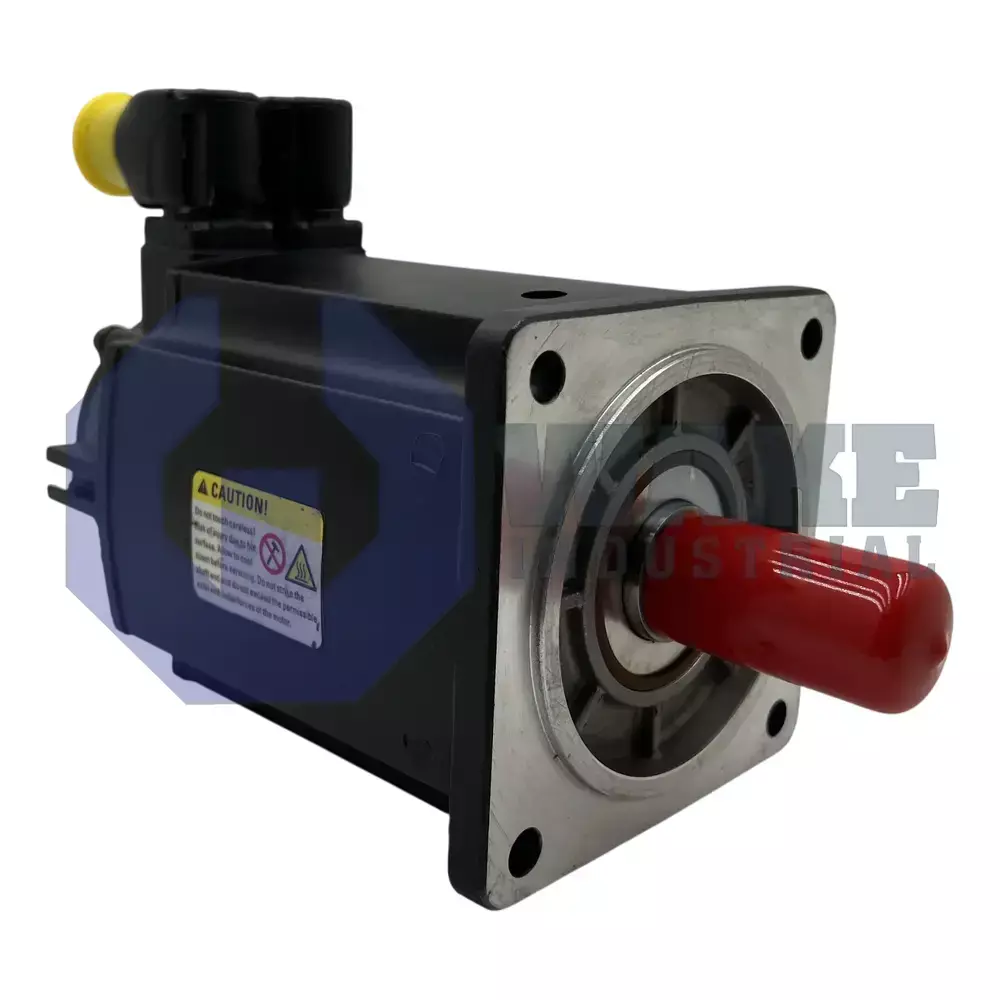

The MSK060B-0300-NN-M1-UG1-NSNN is a servo motor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. The unit converts electrical energy into controlled mechanical rotation for closed-loop speed and position control on packaging lines, pick-and-place gantries, and other automated axes. Integrated feedback and a compact cylindrical housing support installation directly on moving machine elements where accurate encoder data and high torque density are important. In motion systems, it works with a matched drive to regulate acceleration, holding position, and repeatable indexing under changing load conditions.
Heat produced by the stator is removed by natural convection, so no external blower or liquid lines are needed and the installation should leave clearance for airflow. Position data travels over the Hiperface serial channel, allowing compatible IndraDrive controllers to receive feedback through a compact interface. The optical sensor disc delivers 128 signal periods, and the scanning system is multi-turn absolute, so the motor can retain position information across up to 4096 revolutions without battery backup. For load holding during power loss, the motor includes an electrically released brake with 10 Nm of static torque, which helps keep vertical axes in place until drive torque returns.
Mechanical protection is rated at IP65, sealing the stator housing against dust and low-pressure water jets within an ambient range of 0 to 40 °C. The housing uses a standard design with explosion protection, and a plain shaft supports coupling to low-backlash gearheads or similar drive elements. A rotatable 240° connector allows the feedback plug to exit in a convenient direction and can reduce cable strain in crowded assemblies. Size code 060 and length code B establish the motor envelope, while winding code 0300 identifies the electrical values selected for medium-torque, medium-speed duty. Thermal class 155 insulation supports sustained operation at elevated winding temperatures.
Frequently Asked Questions about MSK060B-0300-NN-M1-UG1-NSNN:
Q: How is the MSK060B-0300-NN-M1-UG1-NSNN motor cooled?
A: This motor is cooled by natural convection, relying on ambient airflow for temperature management.
Q: Does the MSK060B-0300-NN-M1-UG1-NSNN include a holding brake and what is its torque?
A: The MSK060B-0300-NN-M1-UG1-NSNN is equipped with a holding brake that is electrically released and provides 10 Nm of torque.
Q: What type of encoder connector is used with the MSK060B-0300-NN-M1-UG1-NSNN motor?
A: This model uses a rotatable encoder connector that can be adjusted within a 240° range for flexible installation.
Q: What kind of feedback does the MSK060B-0300-NN-M1-UG1-NSNN motor provide?
A: The MSK060B-0300-NN-M1-UG1-NSNN has a multiturn absolute encoder that utilizes Hiperface interface and optical technology.
Q: What is the protection rating on the MSK060B-0300-NN-M1-UG1-NSNN?
A: This motor offers an IP65 protection rating, making it resistant to dust and low-pressure water jets from any direction.
