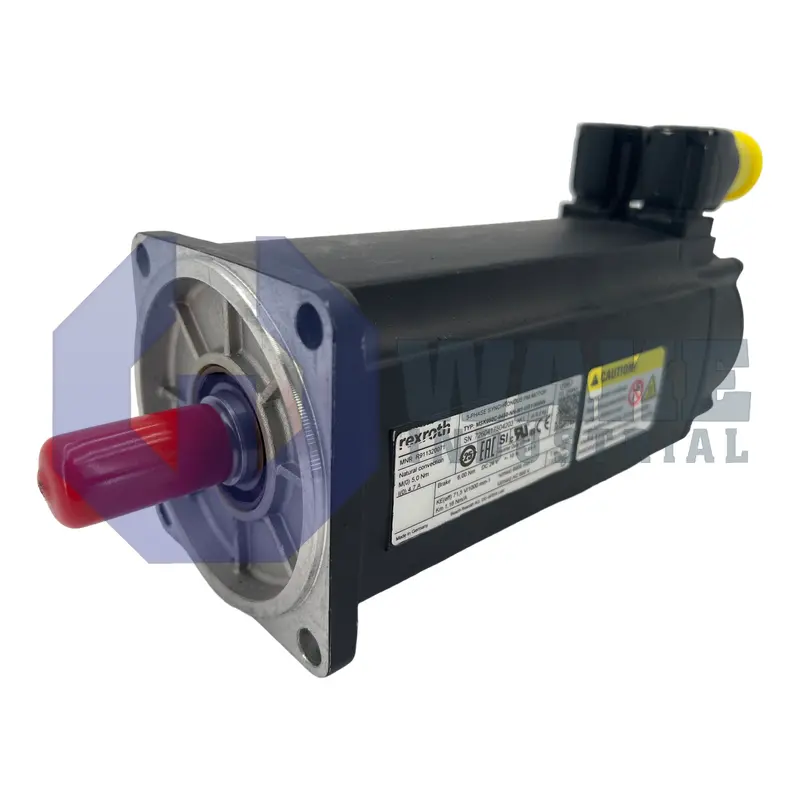

MSK050C-0450-NN-M1-UG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911320071
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
5 Seconds
The Bosch Rexroth Indramat MSK050C-0450-NN-M1-UG1-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features natural convection cooling and a plain shaft design. This standard synchronous servomotor has a multiturn absolute optical encoder with Hiperface interface and a holding brake that provides 6 Nm of torque.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK050C-0450-NN-M1-UG1-NNNN servomotor is built by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. As an IndraDyn S synchronous servomotor, it converts electrical drive commands into controlled rotary motion for positioning axes, pick-and-place heads, and other precise industrial automation tasks. The unit employs a permanent-magnet rotor and integrated encoder to provide accurate feedback and consistent torque in compact machine layouts. This arrangement supports repeatable speed and position control in equipment that must respond quickly during continuous automated operation.
The motor relies on natural convection for heat removal, so enclosure airflow and mounting orientation must allow rising air to carry thermal energy away without external fans. A 240° rotatable encoder connector lets harnesses exit through a wide arc, simplifying cable routing in tight cabinets. Position data travels over the Hiperface bus, allowing digital feedback exchange between the motor and drive. Inside the feedback unit, an optical scanning system divides each mechanical rotation into 128 signal periods, supplying fine incremental information that the drive can interpolate for precise position control.
The encoder stores absolute multi-turn data, and its multi-turn absolute design preserves position even after power loss, eliminating homing cycles at startup. During power-off holding, an electrically released brake applies 6 Nm of torque, keeping the shaft fixed against moderate loads until drive current returns. The motor frame corresponds to size 050, and the plain shaft transfers torque without keyways to reduce stress on mating components. This shaft is ground for use with clamping hubs or shrink disks, while the C length and 0450 winding suit medium-duty servo axes that need a balance of continuous torque, speed, and inertia.
Frequently Asked Questions about MSK050C-0450-NN-M1-UG1-NNNN:
Q: What cooling method is used by the MSK050C-0450-NN-M1-UG1-NNNN servomotor?
A: This motor utilizes natural convection for cooling, operating without the need for forced air or external fans.
Q: What encoder technology and resolution are featured on the MSK050C-0450-NN-M1-UG1-NNNN motor?
A: The encoder is an optical multiturn absolute type, providing enhanced position detection with 128 signal periods per revolution.
Q: What type and strength of holding brake does the MSK050C-0450-NN-M1-UG1-NNNN motor include?
A: This model is equipped with an electrically-released holding brake that delivers a holding torque of 6 Nm.
Q: What shaft type is present on the MSK050C-0450-NN-M1-UG1-NNNN servomotor?
A: The MSK050C-0450-NN-M1-UG1-NNNN uses a plain shaft for mechanical coupling.
Q: How is the encoder connector configured on the MSK050C-0450-NN-M1-UG1-NNNN servomotor?
A: The encoder connector on this model is rotatable up to 240°, facilitating flexible cable routing during installation.
