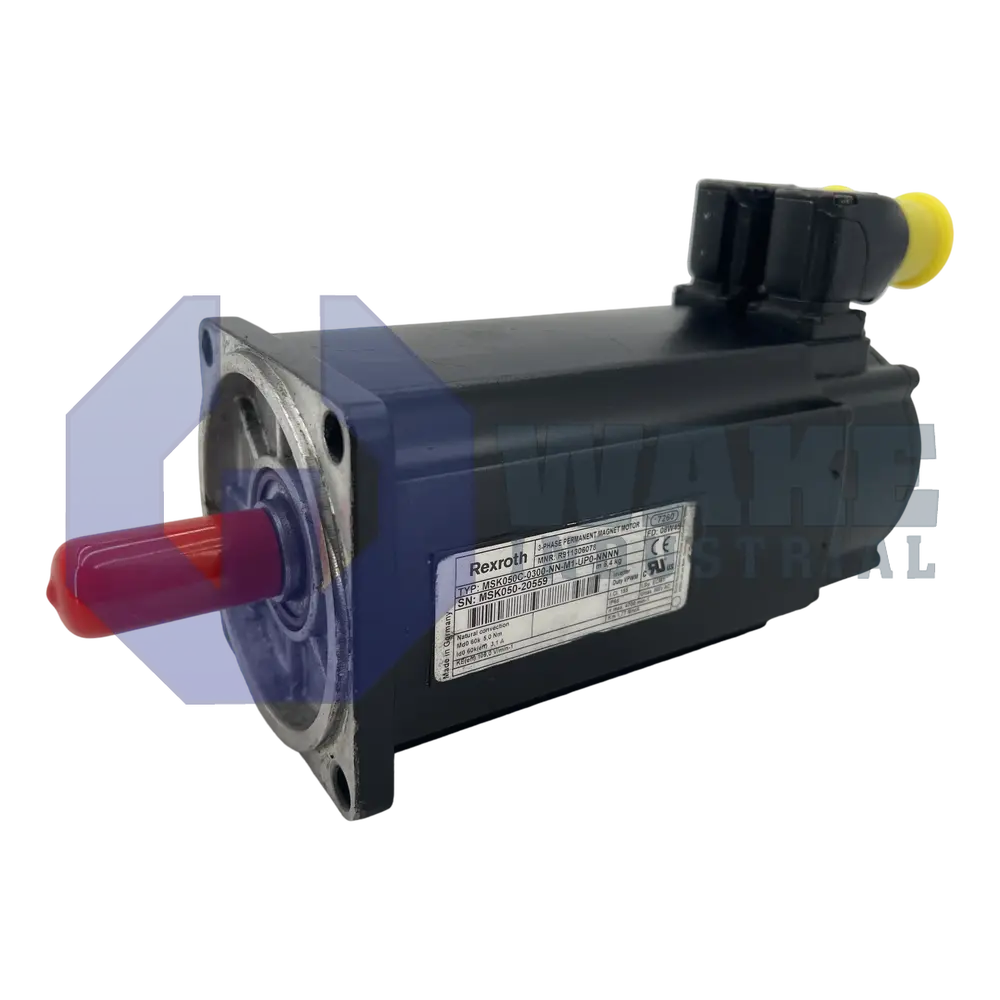

MSK050C-0300-NN-M1-UP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911306078
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
15 Seconds
The Bosch Rexroth Indramat MSK050C-0300-NN-M1-UP0-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This standard servomotor features natural convection cooling and a shaft with keyway. It has a multiturn absolute optical encoder with Hiperface interface and a resolution of 128 signal periods.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK050C-0300-NN-M1-UP0-NNNN is an IndraDyn S synchronous servomotor produced by Bosch Rexroth Indramat in the MSK IndraDyn S Synchronous Motors series. Designed for closed-loop axis duties in packaging machines, printing modules, and general motion platforms, this motor converts drive inverter commands into precise rotary motion while maintaining position feedback for the controller. Its compact frame supports integration in cabinets or on-machine assemblies where servo accuracy, quick acceleration, and low maintenance are required. In a matched servo system, the motor helps the drive regulate speed, torque, and position as load conditions change during continuous machine operation.
Cooling relies on natural convection, so airflow around the housing must remain unobstructed during operation. The frame size is 050 with C length, giving an intermediate stator stack that balances torque output with compact dimensions. Torque is transmitted through a shaft with a keyway, which allows direct coupling to pulleys or gearboxes without extra shaft adapters. The winding code 0300 identifies the electrical winding used with compatible MSK drive inverters. Because the motor is supplied without a holding brake, any static load must be secured by external clamping or by the drive’s holding torque. All electrical terminations provide IP54 sealing when the mating connectors are installed.
Position reporting is handled by an optical encoder that delivers 128 signal periods per revolution and stores travel history in a multi-turn counter. Communication to the drive controller occurs through the Hiperface protocol, and the feedback lines are routed through a 240° rotatable connector that simplifies cable exit direction inside tight enclosures. The encoder is a multi-turn absolute type, so the axis can power up with immediate position knowledge instead of running a reference move. This arrangement helps the controller track shaft angle and revolution count during repeated indexing, positioning, and speed-controlled movement.
Frequently Asked Questions about MSK050C-0300-NN-M1-UP0-NNNN:
Q: What type of cooling is used in the MSK050C-0300-NN-M1-UP0-NNNN servomotor?
A: The MSK050C-0300-NN-M1-UP0-NNNN servomotor uses natural convection for cooling, eliminating the need for external fans.
Q: What type of encoder and resolution does the MSK050C-0300-NN-M1-UP0-NNNN feature?
A: This model is equipped with an optical multiturn absolute encoder, providing 128 signal periods of resolution.
Q: Is a holding brake included with the MSK050C-0300-NN-M1-UP0-NNNN servomotor?
A: The MSK050C-0300-NN-M1-UP0-NNNN is configured without a holding brake.
Q: What is the rotation capability of the encoder connector on the MSK050C-0300-NN-M1-UP0-NNNN?
A: The servomotor has a rotatable encoder connector that can rotate 240 degrees for flexible installation.
Q: What type of shaft does the MSK050C-0300-NN-M1-UP0-NNNN servomotor have?
A: It features a shaft with a keyway, which aids in secure mechanical coupling.
