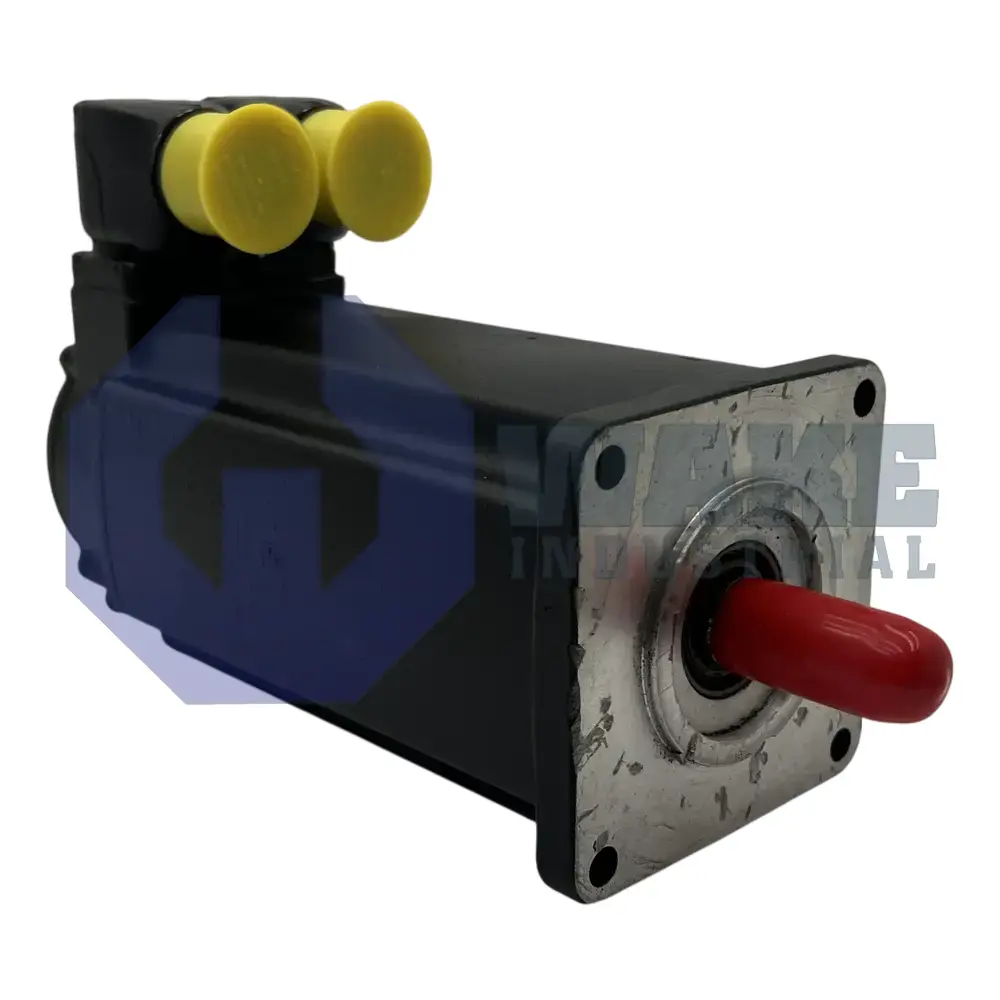

MSK043C-0600-NN-M3-UG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911375466
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
9 Seconds
The Bosch Rexroth Indramat MSK043C-0600-NN-M3-UG1-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This servomotor features natural convection cooling and a plain shaft design, along with a rotatable 240 degree encoder connector using Hiperface capacitive multiturn absolute technology. It comes with a holding brake providing 4 Nm torque and is rated for IP65 protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK043C-0600-NN-M3-UG1-NNNN synchronous servomotor is produced by Bosch Rexroth Indramat as part of the MSK IndraDyn S Synchronous Motors series. Designed for industrial automation, it converts drive current into controlled rotary torque for feed axes, pick-and-place heads, and auxiliary spindles that require repeatable positioning. When paired with an IndraDrive power stage, its Hiperface feedback channel supports real-time monitoring of speed and position, making the motor suitable for packaging machines, printing lines, and other multi-axis motion systems where accurate cycle-to-cycle response is important.
Cooling is handled by natural convection, eliminating the need for external fans and keeping the installation simple. The enclosure carries an IP65 rating, so dust is kept out and low-pressure water jets do not interfere with operation. An allowable ambient range of 0–40 °C fits typical machine and cabinet conditions in factory settings. The motor uses a plain shaft, which simplifies coupling to gearheads or belt drives that do not require a keyed connection. Its 155 insulation class supports the winding temperatures associated with continuous cyclic duty. Motor size 043, length C, the standard design, and winding code 0600 match the electrical characteristics expected by compatible 400 V IndraDrive amplifiers.
A rotatable 240° encoder connector and a Hiperface serial interface connect the feedback system to the drive. Inside the motor, a multi-turn absolute encoder tracks up to 4096 revolutions, so position data remain available after power loss. The feedback system uses capacitive measurement and provides 16 signal periods, which the controller can interpolate for precise angle evaluation. For load-holding requirements, the electrically released brake supplies 4 Nm of static torque, allowing vertical or suspended axes to remain parked when the drive is disabled. This combination of absolute feedback and holding brake support is useful in machines that must resume operation with predictable axis status after brief stops or power interruptions.
Frequently Asked Questions about MSK043C-0600-NN-M3-UG1-NNNN:
Q: What is the holding brake torque and release method of the MSK043C-0600-NN-M3-UG1-NNNN motor?
A: This model is equipped with a holding brake that provides a torque of 4 Nm and is electrically released.
Q: What type of encoder and interface does the MSK043C-0600-NN-M3-UG1-NNNN use for position sensing?
A: The MSK043C-0600-NN-M3-UG1-NNNN motor uses a multiturn absolute capacitive encoder with a Hiperface interface for precise feedback.
Q: How is the MSK043C-0600-NN-M3-UG1-NNNN motor cooled?
A: The MSK043C-0600-NN-M3-UG1-NNNN features natural convection cooling, eliminating the need for external cooling systems.
Q: What shaft configuration is featured on the MSK043C-0600-NN-M3-UG1-NNNN motor?
A: This motor comes with a plain shaft for direct mechanical coupling without keys or splines.
Q: What is the protection rating of the MSK043C-0600-NN-M3-UG1-NNNN motor?
A: The MSK043C-0600-NN-M3-UG1-NNNN provides an IP65 protection rating, indicating it is dust-tight and protected against water jets.
