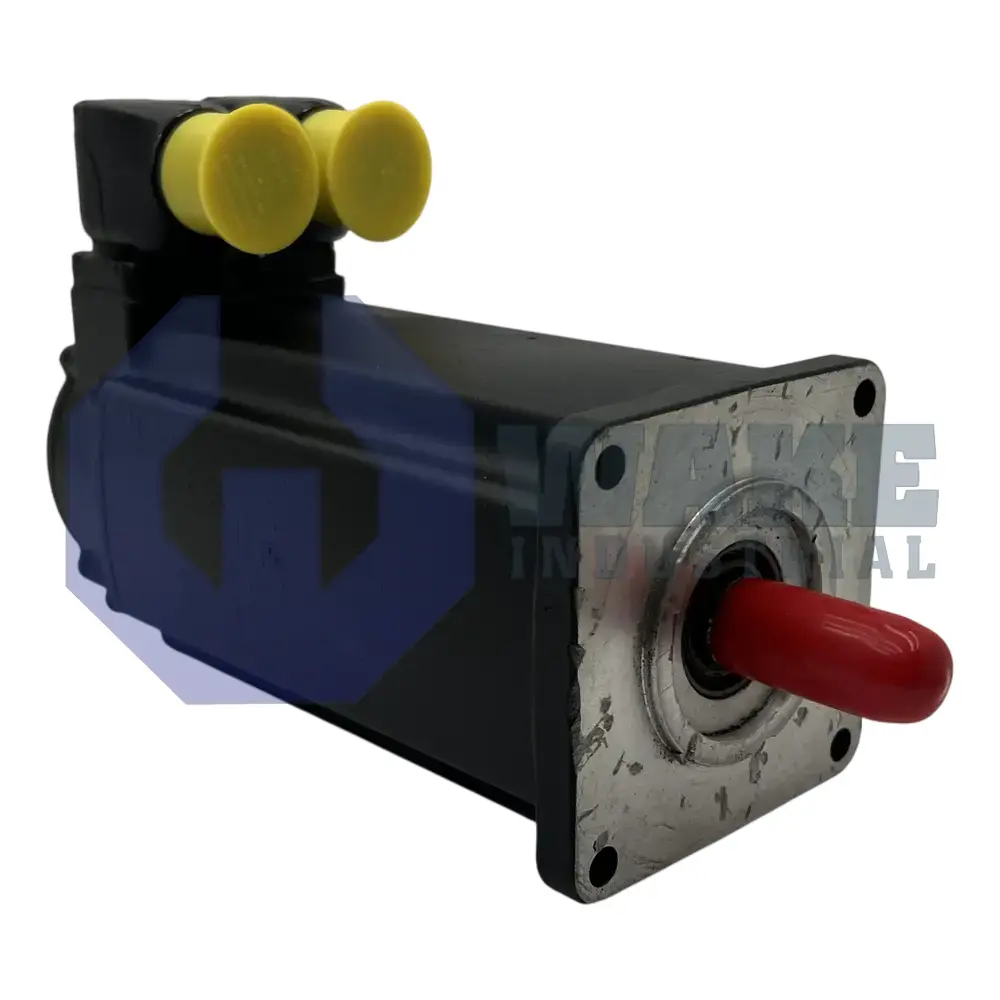

MSK043C-0600-NN-M3-UG0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911334538
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
20 Seconds
The Bosch Rexroth Indramat MSK043C-0600-NN-M3-UG0-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features a standard design with natural convection cooling. This servomotor has a plain shaft, motor size 043, length C, and achieves IP65 protection. It offers a capacitive multiturn absolute encoder with Hiperface interface, rotatable connector, and operates in ambient temperatures from 0 to 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK043C-0600-NN-M3-UG0-NNNN is a synchronous servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. Designed for closed-loop positioning tasks, the motor converts drive current into precise rotary motion for tooling heads, pick-and-place actuators, and packaging axes. Its 043 frame size and C length combine moderate continuous torque capability with a compact envelope, allowing integration on machines where space and mass must be minimized without sacrificing dynamic response. This layout suits compact motion systems that need accurate start-stop behavior, repeatable positioning, and smooth speed control during frequent cycle changes.
Heat produced during operation is removed through natural convection, so the housing requires unobstructed airflow around it. Feedback is supplied through a rotatable 240° connector that carries the Hiperface protocol to a compatible drive. Inside the encoder, the scale generates 16 signal periods per mechanical revolution, and the sensing element is capacitive, which helps maintain stable signal quality in environments where light contamination can affect optical systems. The front end uses a plain shaft, enabling backlash-free coupling to gearheads or timing pulleys. This arrangement supports direct integration into compact drive trains and helps simplify cable routing when installation space is limited.
Position data is retained through power cycles because the rotor sensor is a multiturn absolute design, which removes the need for a reference run after shutdowns. The housing carries a protection rating of IP65, blocking dust ingress and resisting water jets encountered during routine washdowns. Continuous operation is permitted in ambient temperatures from 0 to 40 °C, and the windings use insulation class 155 to withstand the internal temperatures reached under rated load. The 0600 winding code corresponds to the electrical values expected by matching IndraDrive controllers, and the motor is supplied without a holding brake, so static load retention must be provided by external mechanics or controlled drive torque when power is removed.
Frequently Asked Questions about MSK043C-0600-NN-M3-UG0-NNNN:
Q: What cooling method does the MSK043C-0600-NN-M3-UG0-NNNN motor use?
A: The MSK043C-0600-NN-M3-UG0-NNNN motor operates with natural convection cooling, requiring no external fans or forced air systems.
Q: What type of encoder connector is used on this model?
A: This motor features a rotatable encoder connector with a range of 240°, allowing for flexible cable positioning.
Q: What is the protection rating of the MSK043C-0600-NN-M3-UG0-NNNN motor?
A: An IP65 protection rating means the motor is dust-tight and protected against water jets from any direction.
Q: What shaft type is provided with this specific model?
A: The MSK043C-0600-NN-M3-UG0-NNNN is built with a plain shaft for straightforward mechanical integration.
Q: What encoder technology does the MSK043C-0600-NN-M3-UG0-NNNN utilize?
A: The encoder fitted to this motor is a multiturn absolute model using capacitive technology for position feedback.
