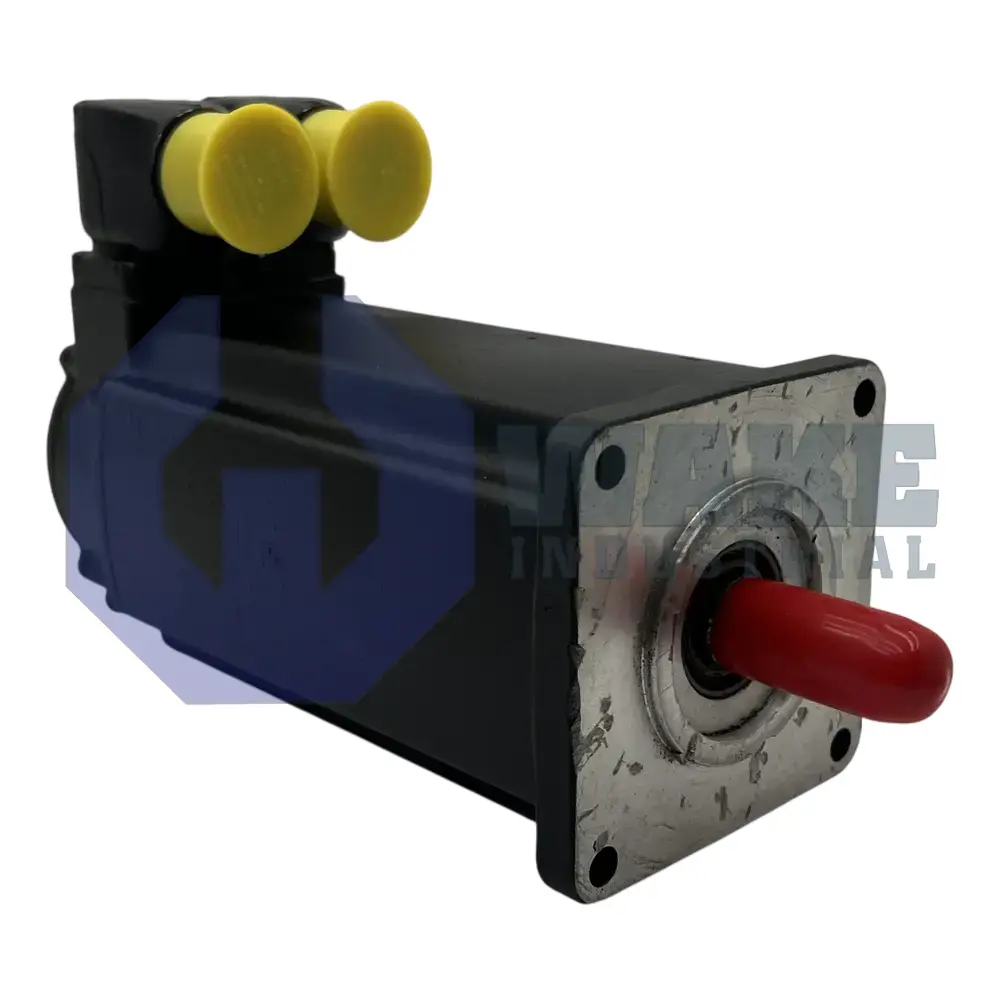

MSK043C-0600-NN-M1-UG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911330232
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
39 Seconds
The Bosch Rexroth Indramat MSK043C-0600-NN-M1-UG1-NNNN is part of the MSK IndraDyn S Synchronous Motors series and is a standard design servomotor with natural convection cooling. It features a plain shaft, size 043, a rotatable 240-degree encoder connector, and Hiperface optical multiturn absolute encoder technology with 128 signal periods. This servomotor comes with an electrically-released holding brake that provides 4 Nm of torque.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK043C-0600-NN-M1-UG1-NNNN is an IndraDyn S synchronous servo motor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Delivered in the standard mechanical design, the motor is intended for closed-loop position and speed control on compact automation axes such as pick-and-place heads, dosing pumps, and small gantry drives. This standard housing keeps overall dimensions small, easing installation inside crowded machine frames. An electrically released holding brake is integrated so that the shaft remains locked whenever drive power is removed, preventing unwanted motion and protecting tooling in vertical or safety-critical stations. That arrangement also supports axes that pause frequently between short positioning moves.
Thermal management is handled by Natural convection, allowing the housing fins to dissipate losses without forced airflow and keeping enclosure noise low. A rotatable 240° connector lets the feedback cable exit in several directions, which helps when the motor is mounted near panels, guards, or machine framing. Position data are transmitted through the Hiperface interface; the Optical scanning head reads 128 signal periods per mechanical revolution to supply high-density sine-cosine tracks for smooth commutation. This feedback arrangement supports stable low-speed rotation and consistent speed control during load changes. During idle states, the electrically released brake applies 4 Nm of static torque to maintain position under load.
The feedback unit also records revolution count with its multiturn absolute design, so the controller recovers exact position after power cycling without a reference move. Mechanical integration is straightforward because the motor uses a plain shaft, the compact IEC motor size 043, and the C-length housing, enabling direct coupling to gearboxes or belt pulleys in tight spaces. Winding code 0600 identifies this electromagnetic variant for use with compatible drive tuning data. The compact form also suits small drive trains where available mounting space is limited.
Frequently Asked Questions about MSK043C-0600-NN-M1-UG1-NNNN:
Q: What cooling method is employed by the MSK043C-0600-NN-M1-UG1-NNNN servomotor?
A: The MSK043C-0600-NN-M1-UG1-NNNN features natural convection cooling, requiring no external fans.
Q: What type of encoder and interface does the MSK043C-0600-NN-M1-UG1-NNNN servomotor use?
A: This motor is equipped with a multiturn absolute optical encoder using Hiperface interface technology.
Q: Does the MSK043C-0600-NN-M1-UG1-NNNN include a holding brake and what is its holding torque?
A: Yes, the model includes an electrically-released holding brake with a torque of 4 Nm.
Q: What type of shaft does the MSK043C-0600-NN-M1-UG1-NNNN servomotor have?
A: The shaft on this servomotor is a plain shaft, offering a simple and direct mechanical interface.
Q: What is the rotation capability of the encoder connector on the MSK043C-0600-NN-M1-UG1-NNNN?
A: The encoder connector on this motor is rotatable up to 240°, allowing flexible installation.
