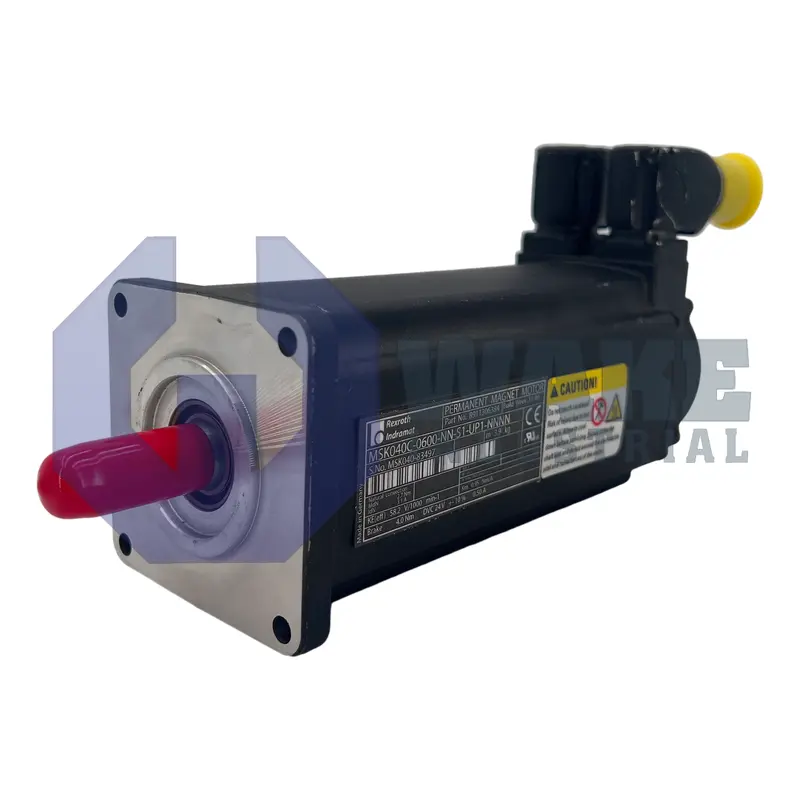

MSK040C-0600-NN-S1-UP1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911306384
The Bosch Rexroth Indramat MSK040C-0600-NN-S1-UP1-NNNN is an IndraDyn S Synchronous Servomotor in the MSK IndraDyn S Synchronous Motors series. This motor features natural convection cooling, a shaft with keyway, and includes a holding brake with a torque of 4 Nm. It uses an optical singleturn Hiperface encoder with 128 signal periods and a rotatable 240-degree connector.
Internal Product Review
The MSK040C-0600-NN-S1-UP1-NNNN is an IndraDyn S synchronous servomotor from Bosch Rexroth Indramat featuring natural convection cooling and a standard design. It is equipped with a rotatable encoder connector (240°) and Hiperface optical singleturn encoder technology, offering 128 signal periods of resolution. The inclusion of an electrically-released holding brake with 4 Nm torque supports secure and reliable positioning in automation applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK040C-0600-NN-S1-UP1-NNNN is an IndraDyn S synchronous servomotor manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. Supplied in the standard mechanical design, the unit couples high-precision feedback with compact dimensions for general-purpose positioning in industrial automation. As a servomotor it converts electrical drive commands into controlled rotary motion for tasks such as indexing tables or conveyor axes, while its integrated feedback electronics maintain close velocity and position loops with the connected drive controller. The motor’s construction supports direct mounting in machinery where rapid cycle times and repeatability are required.
Passive thermal management is provided by natural convection, so heat is removed through the housing without forced airflow; this simplifies installation and reduces maintenance. An electrically-released holding brake delivers 4 Nm of static torque, allowing the axis to stay in place when power is removed and disengaging automatically once the drive energizes it. Power is transmitted through a shaft with keyway, which gives positive mechanical coupling to pulleys or couplings and prevents slip under dynamic loads. For feedback, the optical encoder generates 128 signal periods per revolution, giving fine incremental information that the control loop interpolates for precision motion.
Additional configuration elements define how the motor integrates with the automation platform. The frame is classified as 040, and the active length is code C; together they establish the continuous torque envelope and overall body dimensions that match drive sizing charts. Digital communication to the controller uses the Hiperface protocol, and signals are routed through a connector that can be rotated through 240°, simplifying cable layout inside tight cabinets. Manufactured with winding code 0600, the stator resistance and inductance are matched to MSK drives for optimal current rise. The single-turn, optical measurement principle supplies absolute position data after every power cycle without external batteries.
