Product Description:

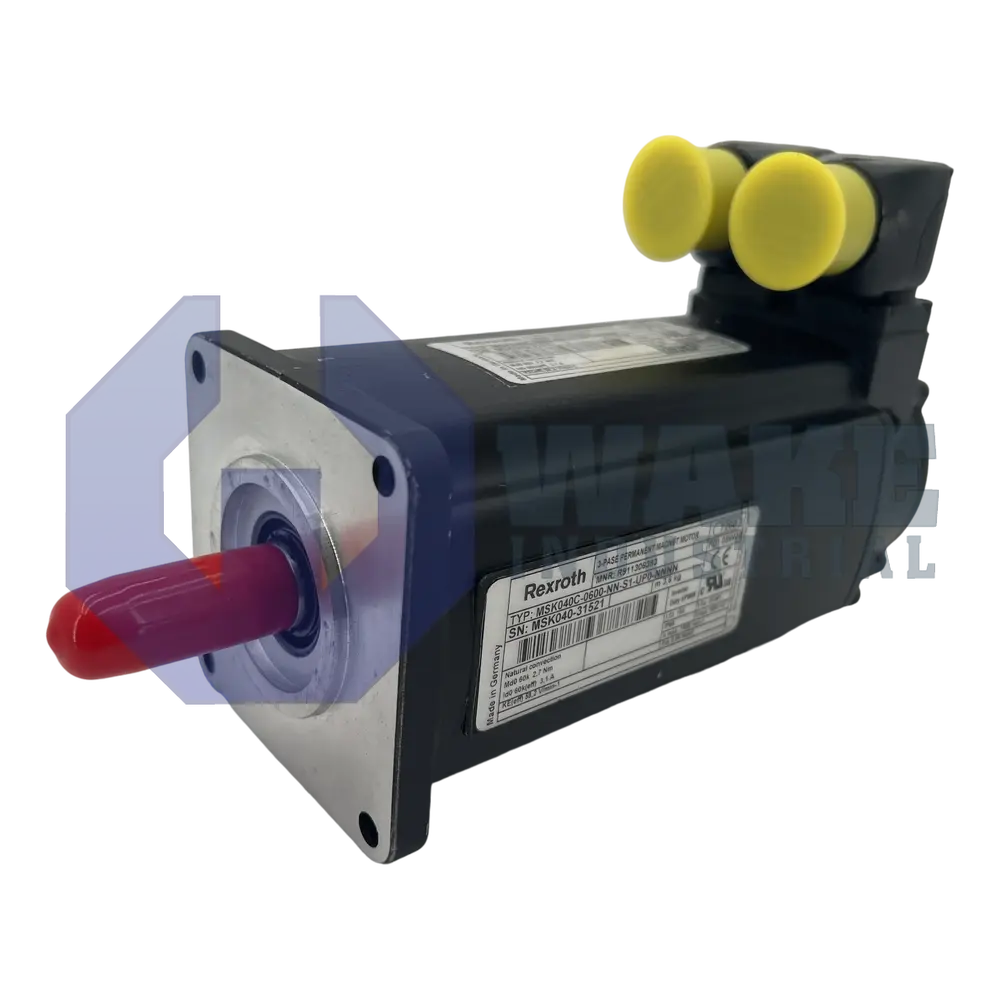

The MSK040C-0600-NN-S1-UP0-NNNN is a synchronous servomotor in the MSK IndraDyn S Synchronous Motors series from Bosch Rexroth Indramat. As an IndraDyn S servomotor, it converts drive current from digital servo amplifiers into controlled rotary motion for indexing tables, pick-and-place arms, and other precise automation axes. Closed-loop operation allows the motor to respond quickly to command changes while maintaining stable motion under varying load conditions. Its compact housing suits tight machine spaces while still supporting the torque response needed for industrial positioning tasks.

This motor is cooled by natural convection, so it does not require external fans or liquid circuits. The motor has a C length code, which helps balance power density with the overall installation envelope. The stator uses winding code 0600, which matches the electrical characteristics expected by compatible MSK drives. A keyed steel shaft transfers torque through standard couplings and provides a familiar mechanical interface for general machine assemblies. It is supplied without a holding brake, so any static load must be held by external means when the axis is de-energized.

Position feedback is provided by an integrated encoder package, and the connector is rotatable through 240° to ease cable routing in compact cabinets. Inside the housing, an optical scanning module reads a glass code disk with 128 signal periods and transmits absolute position data over the Hiperface serial interface. The encoder is single-turn, so it reports rotor angle within one mechanical revolution and is suited to axes that are referenced again after startup. This arrangement supports accurate velocity and position control while keeping the feedback connection straightforward for compatible Rexroth drive systems. Because the feedback components are integrated into the motor, no separate external sensing device is needed at the shaft.
