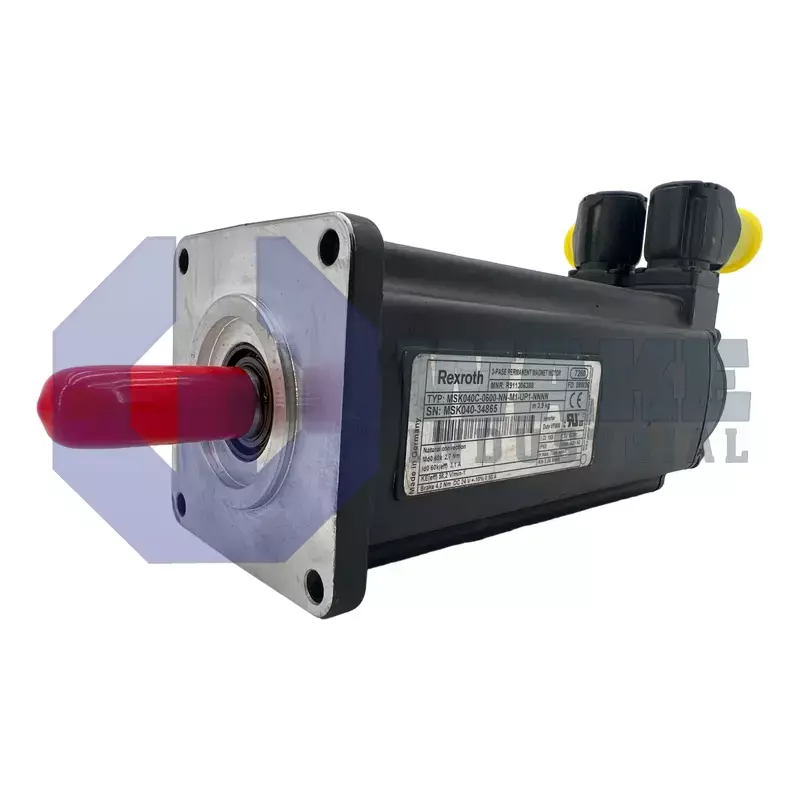

The Bosch Rexroth Indramat MSK040C-0600-NN-M1-UP1-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features a standard design with natural convection cooling. This servomotor includes a multiturn absolute optical encoder with a Hiperface interface and 128 signal periods, and comes with a shaft with keyway plus a 4 Nm electrically-released holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK040C-0600-NN-M1-UP1-NNNN is an AC synchronous servo motor in the MSK IndraDyn S Synchronous Motors series from Bosch Rexroth Indramat. It interfaces directly with an IndraDrive controller to convert digital motion commands into controlled torque and speed for coordinated multi-axis movement in packaging, assembly, and material-handling stations. In servo applications, the motor provides the rotary output needed for indexing tables, feed systems, and compact handling modules. Its synchronous design allows the drive to regulate speed and position closely during starts, stops, and short repetitive moves. This makes the unit suitable for automated axes that require accurate motion and repeatable cycle behavior.
Mechanical configuration centers on the 040 frame size and C housing length, which balance inertia with compact installation in crowded machines. The compact envelope is useful where nearby sensors, guards, or adjacent axes leave little mounting clearance. The stator winding code 0600 indicates the electrical resistance and inductance values used by the drive. Heat generated during continuous duty is removed through natural convection, so no external fans or ducts are required and the cast jacket radiates heat to the surrounding air. The motor uses a shaft with a keyway for slip-free coupling to gears or belt pulleys, and the electrically released brake provides 4 Nm of holding torque when power is removed.
Position feedback relies on an optical encoder that transmits over the Hiperface interface, delivering sinusoidal and digital tracks at 128 signal periods per mechanical revolution. The optical feedback system supports accurate commutation and closed-loop position control across the operating range. The code wheel is read as a multi-turn absolute value, so the controller retains position across full rotations and after power cycles without a homing routine. The connector can be rotated 240° to suit cable routing, which helps when the cable must exit in a confined direction. Optical scanning of the glass scale avoids contact wear and helps maintain signal integrity over the motor's service life.
Frequently Asked Questions about MSK040C-0600-NN-M1-UP1-NNNN:
Q: How is the MSK040C-0600-NN-M1-UP1-NNNN servo motor cooled?
A: This model uses natural convection for cooling, operating efficiently without the need for additional cooling devices.
Q: What type of shaft does the MSK040C-0600-NN-M1-UP1-NNNN motor have?
A: The motor shaft is equipped with a keyway for secure mechanical integration.
Q: What type of encoder and feedback does the MSK040C-0600-NN-M1-UP1-NNNN use?
A: A multiturn absolute encoder with optical technology and Hiperface interface is provided for precise feedback.
Q: Does the MSK040C-0600-NN-M1-UP1-NNNN include a holding brake?
A: This model includes an electrically-released holding brake capable of supplying 4 Nm of holding torque.
Q: What is notable about the encoder connector on the MSK040C-0600-NN-M1-UP1-NNNN?
A: The motor features a rotatable encoder connector that can be adjusted 240° for flexible cable management.
