MSK040C-0600-NN-M1-AG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911321108
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
2 Seconds
The Bosch Rexroth Indramat MSK040C-0600-NN-M1-AG1-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This synchronous servomotor features a plain shaft, natural convection cooling, and an IP65 protection rating. It is equipped with a multiturn absolute optical encoder using Hiperface technology and includes a 4 Nm electrically-released holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

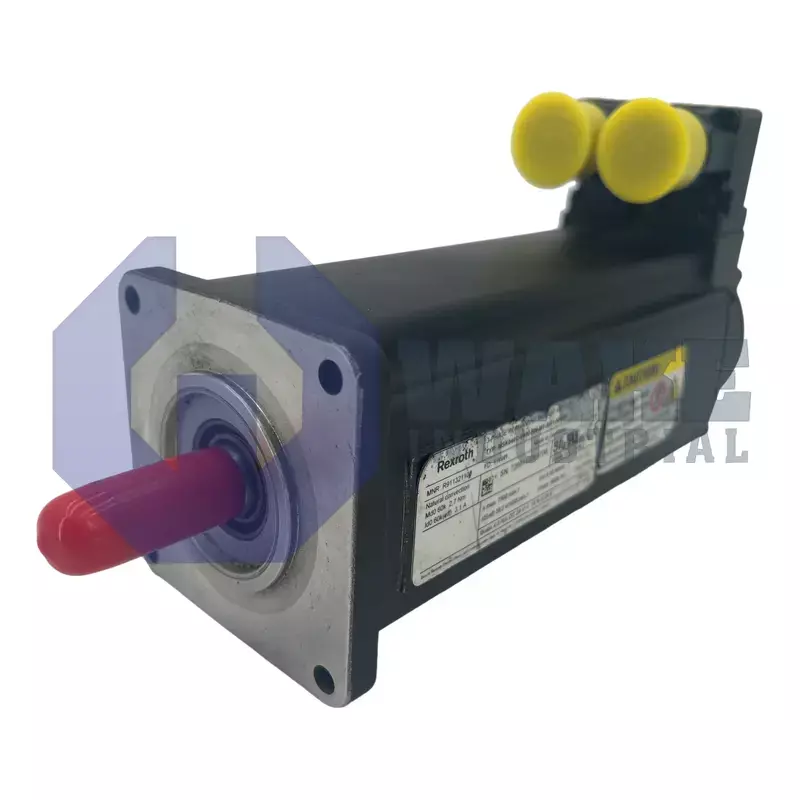

The MSK040C-0600-NN-M1-AG1-NNNN servomotor is manufactured by Bosch Rexroth Indramat as part of the MSK IndraDyn S Synchronous Motors series. Within an automation cell, it functions as the primary rotary actuator, translating drive controller commands into controlled motion for feeders, formers, or small gantry axes. A standard housing and a plain shaft allow the unit to couple directly to gearheads or belt pulleys without additional mechanical adapters, while the compact 040 frame and C length keep installation depth low in dense multi-axis arrangements.
Thermal losses leave the stator through natural convection, eliminating service points associated with forced-air parts. The enclosure carries an IP65 protection rating, so airborne dust and coolant spray do not reach the windings or the integrated optical feedback. Position data are transferred to the drive over the Hiperface interface, and the optical scanner resolves the code disk into 128 signal periods. Because the sensor is multi-turn absolute, the controller reads the exact shaft angle across 4096 revolutions, so homing after power loss is unnecessary. Winding code 0600 indicates the coil impedance and torque constant, giving predictable current demand across the speed range.
The electrically released brake holds the rotor with 4 Nm of static torque, preventing drift when vertical loads are present and supply voltage is removed. Continuous operation is specified for ambient air between 0 to 40 °C, which aligns with typical cabinet climate control limits. Motor power and earth conductors enter on the A-side, simplifying parallel routing when several MSK units share a cable chain. The motor uses insulation class 155, allowing winding temperatures up to 155 °C without degrading varnish integrity during repetitive duty cycles.
Frequently Asked Questions about MSK040C-0600-NN-M1-AG1-NNNN:
Q: How is the MSK040C-0600-NN-M1-AG1-NNNN motor cooled?
A: The MSK040C-0600-NN-M1-AG1-NNNN operates with natural convection cooling, so no external cooling devices are required.
Q: What type of encoder does the MSK040C-0600-NN-M1-AG1-NNNN use?
A: This model features an optical multiturn absolute encoder with a Hiperface interface and 128 signal periods for precise feedback.
Q: What are the holding brake features of the MSK040C-0600-NN-M1-AG1-NNNN?
A: A holding brake with 4 Nm of torque is provided, and it is electrically released for safe and reliable holding action.
Q: What is the protection rating of the MSK040C-0600-NN-M1-AG1-NNNN?
A: The MSK040C-0600-NN-M1-AG1-NNNN is designed with an IP65 protection rating, offering complete dust tightness and protection against water jets.
Q: What shaft type is used in the MSK040C-0600-NN-M1-AG1-NNNN motor?
A: A plain shaft is used in this model, which can be directly coupled to compatible mechanical components.
