MSK040C-0450-NN-S1-UP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911320801
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
27 Seconds

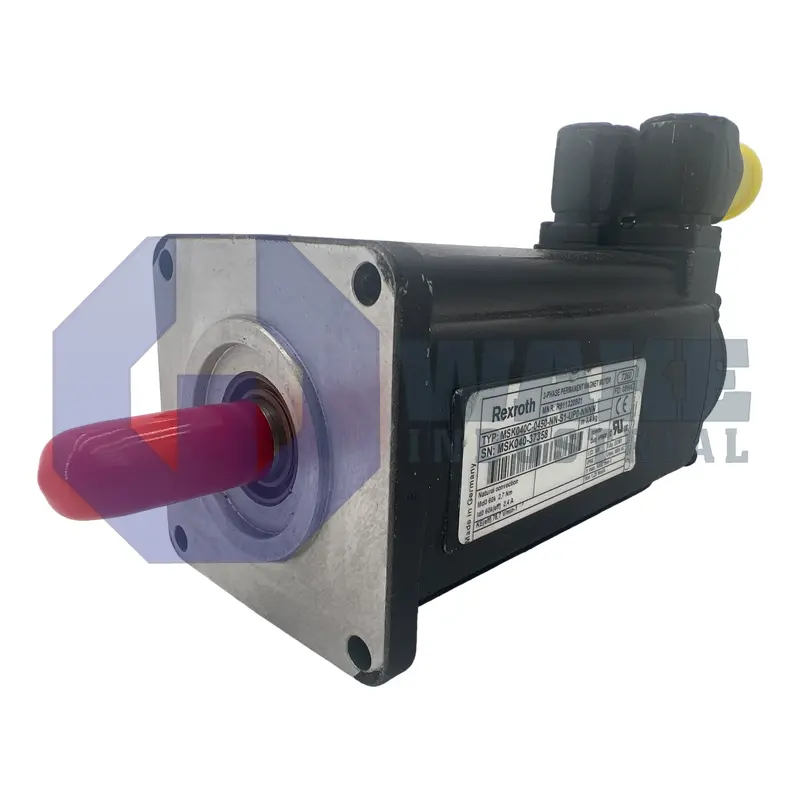

The Bosch Rexroth Indramat MSK040C-0450-NN-S1-UP0-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This standard servomotor features natural convection cooling, motor size 040 with length C, and a shaft with keyway. It has a singleturn optical encoder with a Hiperface interface and a rotatable connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK040C-0450-NN-S1-UP0-NNNN servo motor is manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As a permanently excited synchronous unit, it is intended to operate with IndraDrive amplifiers and deliver precise rotary motion in conveyor indexing tables, pick-and-place heads, and compact tool changers. By combining high-resolution feedback with a keyed output shaft, it provides repeatable torque transmission and accurate positioning in compact automation systems. This makes the motor useful on short-cycle equipment where repeatability and quick settling are more important than large frame size.
The motor uses natural convection to transfer heat from the stator to the surrounding air, eliminating external fans and simplifying ventilation requirements. It has a standard design housing, so mounting dimensions follow the common MSK outline used for this motor family. The motor has a size 040 frame and a length C housing, which helps machine builders plan space on tightly packed axes. A keyed output shaft supports positive torque transmission, and the motor is supplied without a holding brake, which lowers inertia when static load holding is not needed. Because cooling is passive, the motor can be installed in spaces where additional airflow hardware would be undesirable.
The motor uses winding code 0450 for its electrical configuration. Feedback comes from an optical single-turn encoder with 128 signal periods, and the data is transmitted through the Hiperface digital interface for direct compatibility with matching drives. Power and feedback connections are routed through a 240° rotatable connector, allowing the cable outlet to be aimed away from nearby machine parts after installation. This connection arrangement also helps keep cable routing orderly in crowded machine layouts. The optical encoder provides clear signal edges, and the single-turn arrangement reports absolute position within one revolution for accurate startup behavior and straightforward axis integration.
Frequently Asked Questions about MSK040C-0450-NN-S1-UP0-NNNN:
Q: What type of shaft does the MSK040C-0450-NN-S1-UP0-NNNN motor feature?
A: The MSK040C-0450-NN-S1-UP0-NNNN motor uses a shaft with keyway design.
Q: How is the MSK040C-0450-NN-S1-UP0-NNNN motor cooled?
A: This model is cooled by natural convection, so it does not require forced air or liquid cooling.
Q: What type of encoder is included in the MSK040C-0450-NN-S1-UP0-NNNN motor?
A: The MSK040C-0450-NN-S1-UP0-NNNN is equipped with an optical singleturn encoder using Hiperface with a resolution of 128 signal periods.
Q: Does the MSK040C-0450-NN-S1-UP0-NNNN motor come with a holding brake?
A: No holding brake is included with this motor model.
Q: What is the rotation range of the encoder connector on the MSK040C-0450-NN-S1-UP0-NNNN?
A: The encoder connector on this motor can be rotated up to 240°, allowing flexible cable management.
