MSK040B-0600-NN-S1-UG0-NSNN
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days
The Bosch Rexroth Indramat MSK040B-0600-NN-S1-UG0-NSNN is part of the MSK IndraDyn S Synchronous Motors series and uses natural convection for cooling. This servomotor is a standard and explosion protection design and does not include a holding brake. It features an optical encoder with Hiperface interface, singleturn type, and a rotatable 240° connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

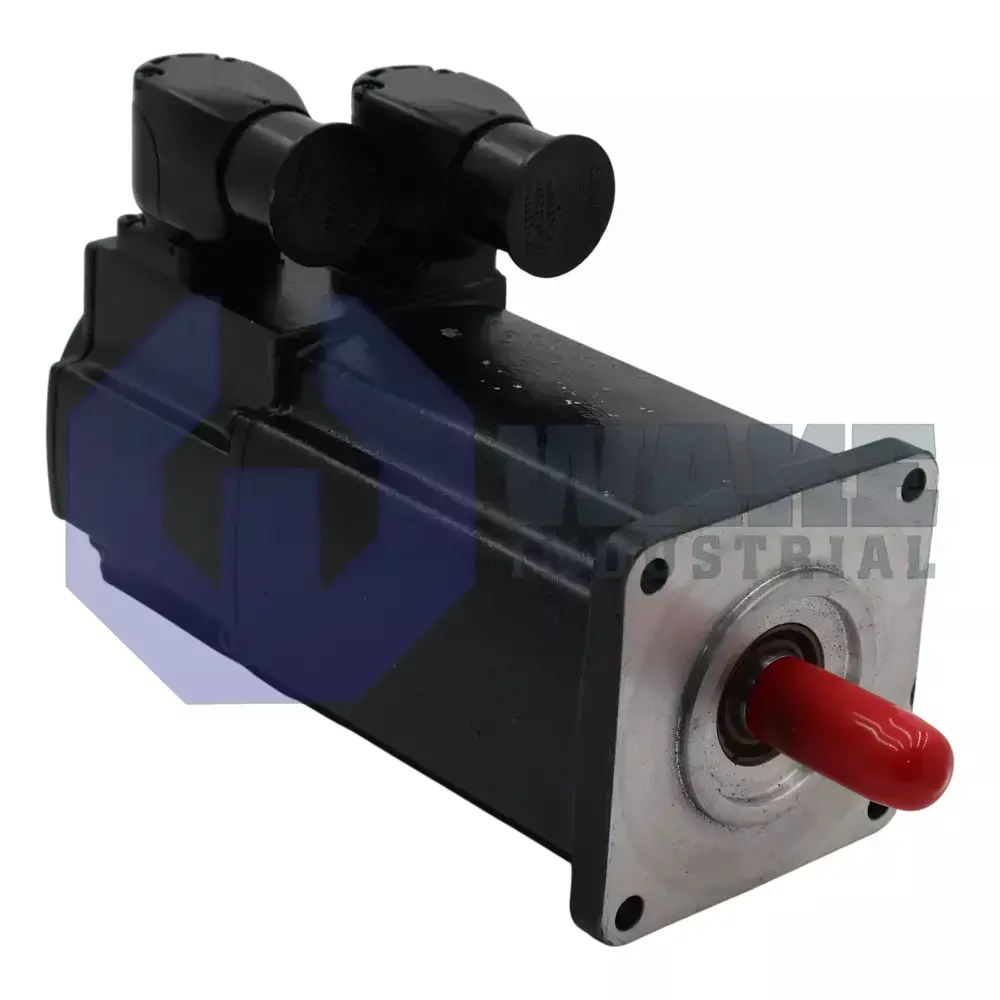

The MSK040B-0600-NN-S1-UG0-NSNN servomotor is produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. It converts electrical energy from a matched drive into rotational motion with tight position and velocity control, serving as the prime mover on pick-and-place arms, packaging spindles, and indexing tables. By combining permanent-magnet excitation with integrated feedback, the unit supports dynamic duty cycles and repeatable accuracy in industrial automation cells.
The motor relies on Natural convection for thermal management, so heat is shed through the housing without external fans or liquid circuits. Its output end is configured with a Plain shaft, allowing direct coupling through press-fit or clamp collars while eliminating keyway stress points. Position feedback is supplied by a Hiperface interface, enabling digital communication of angle, speed, and diagnostic data to Rexroth controllers over a two-wire channel. Internally, the encoder employs Optical sensing, delivering high fidelity of incremental tracks. Resolution is set to 128 signal periods, which defines the number of sinusoidal cycles per mechanical revolution and supports fine interpolation inside the drive for smooth low-speed control.
Complementing these features, the encoder stores absolute angle information over one revolution, classified as Singleturn. Field wiring is simplified by a connector that is Rotatable, 240°, so the cable can exit in several directions without straining conductors. The unit is shipped without a holding brake, therefore external mechanical restraints or drive torque must secure vertical axes during power-down situations. Electromagnetic behaviour is defined by winding code 0600, which pairs the stator impedance with the intended drive current range. A motor length code of B and a frame size 040 keep the envelope minimal, and the design offers both standard construction and protection for explosive atmospheres, expanding installation flexibility.
