Product Description:

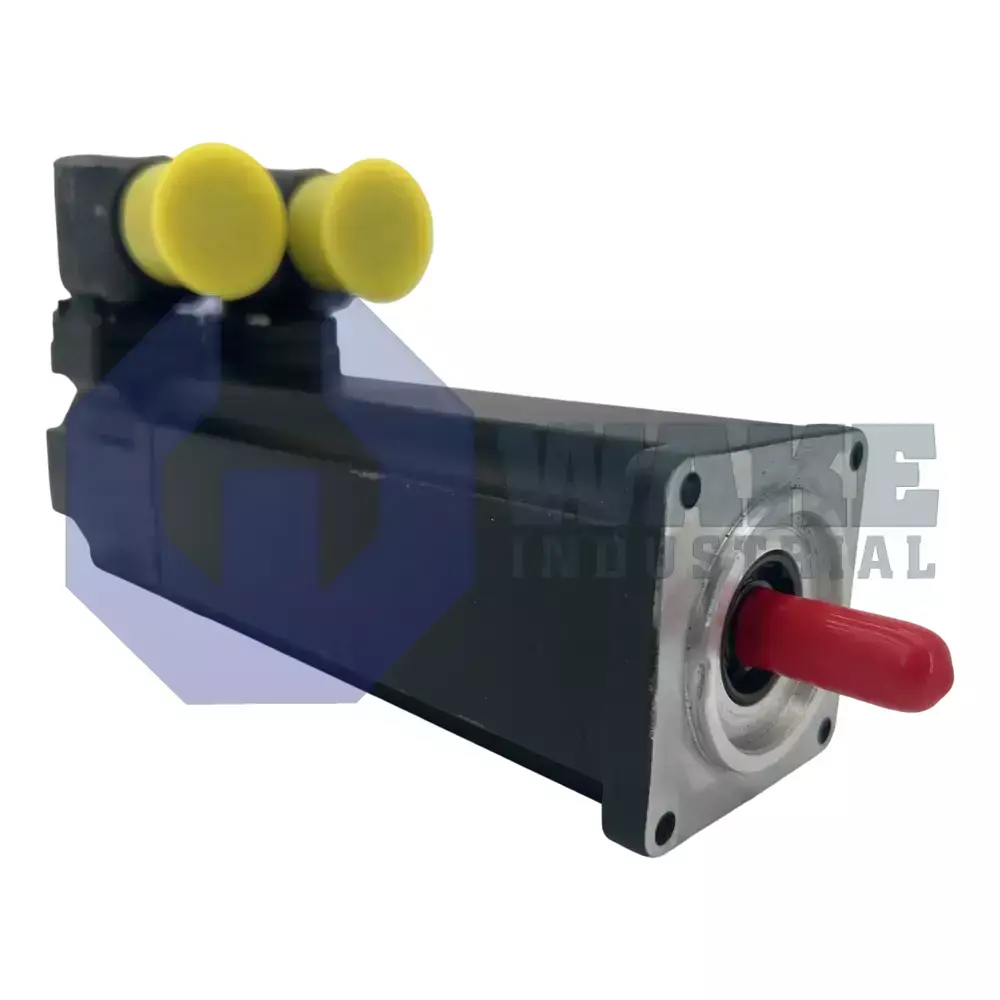

The MSK030C-0900-NN-M3-UG1-NNNN servo motor is produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As an IndraDyn S synchronous servomotor, it converts drive current into precisely controlled torque and speed for closed-loop motion in pick-and-place arms, packaging stations, and other CNC or PLC-directed axes. It is often paired with IndraDrive amplifiers to support high-resolution feedback and digital diagnostics during coordinated motion. The compact stator geometry also helps the motor fit into tightly spaced machine frames where installation space is limited.

The motor relies on natural convection for heat dissipation, so no external fan or liquid circuit is required. Its standard housing has an IP65 rating, which helps block dust and low-pressure water jets during cabinet-free mounting. The motor has size 030 and length code C, which set the stator stack and overall footprint for this frame. An electrically released holding brake provides 1 Nm of static torque to hold vertical loads at rest. Continuous service is permitted at ambient temperatures from 0–40 °C, and insulation class 155 helps the winding system tolerate elevated internal temperatures during operation.

A rotatable 240° encoder connector simplifies cable routing when space is limited and links to the motor’s Hiperface feedback channel. The capacitive multi-turn absolute encoder reports position across 16 signal periods and preserves position data through power cycles, so the connected drive can restore axis position after restart. Winding code 0900 is intended for use with compatible MSK inverters in the appropriate current range. The smooth plain shaft supports direct coupling with zero-backlash clamps or press-fit pulleys for compact drive arrangements.
