Product Description:

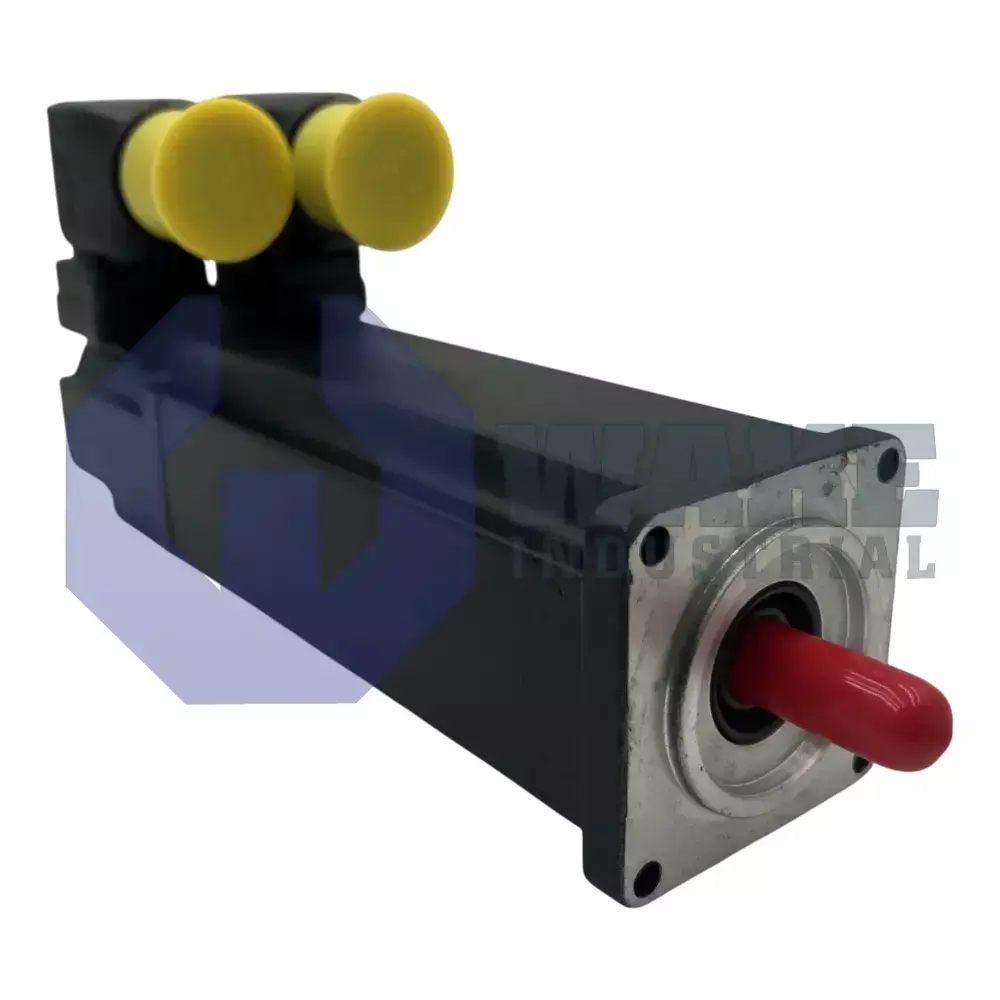

Bosch Rexroth Indramat’s MSK030C-0900-NN-M1-UP0-NSNN belongs to the MSK IndraDyn S Synchronous Motors series. It is a synchronous servomotor for precision axes in packaging machines, transfer systems, and assembly equipment, where the drive must regulate torque, speed, and position with high repeatability. The frame designation 030 and length code C keep the housing compact, allowing installation in clustered multi-axis layouts or other machines with limited mounting space. Its compact format also leaves room for nearby guides, couplings, and cable runs in tightly built automation cells.

Cooling is provided by natural convection, so the housing releases heat without fans or liquid circuits. The enclosure has an IP65 rating, which helps block dust and water jets during normal industrial use. The motor is suitable for standard industrial installation and for use in explosion-protected areas. Continuous operation is permitted in ambient air from 0 to 40 °C. The winding insulation is class 155, which supports elevated internal temperatures within the motor’s thermal limit. The motor is supplied without a holding brake, so stationary loads must be secured by external means. Digital feedback is transmitted through Hiperface, and the rotatable encoder connector helps simplify cable routing in tight cabinets.

Position feedback is generated by optical scanning with 128 signal periods per mechanical revolution. The encoder uses a multiturn absolute format, so the drive can retain position information across power cycles. This motor is intended for applications where precise positioning must be maintained through frequent acceleration and deceleration cycles. Mechanical power is delivered through a shaft with a keyway, which allows positive torque transfer with standard hub connections. The stator winding uses code 0900, matching the electrical characteristics expected by compatible drive controllers. A keyed shaft also works well with pulleys, pinions, and compact gearheads used on small servo axes.
