Product Description:

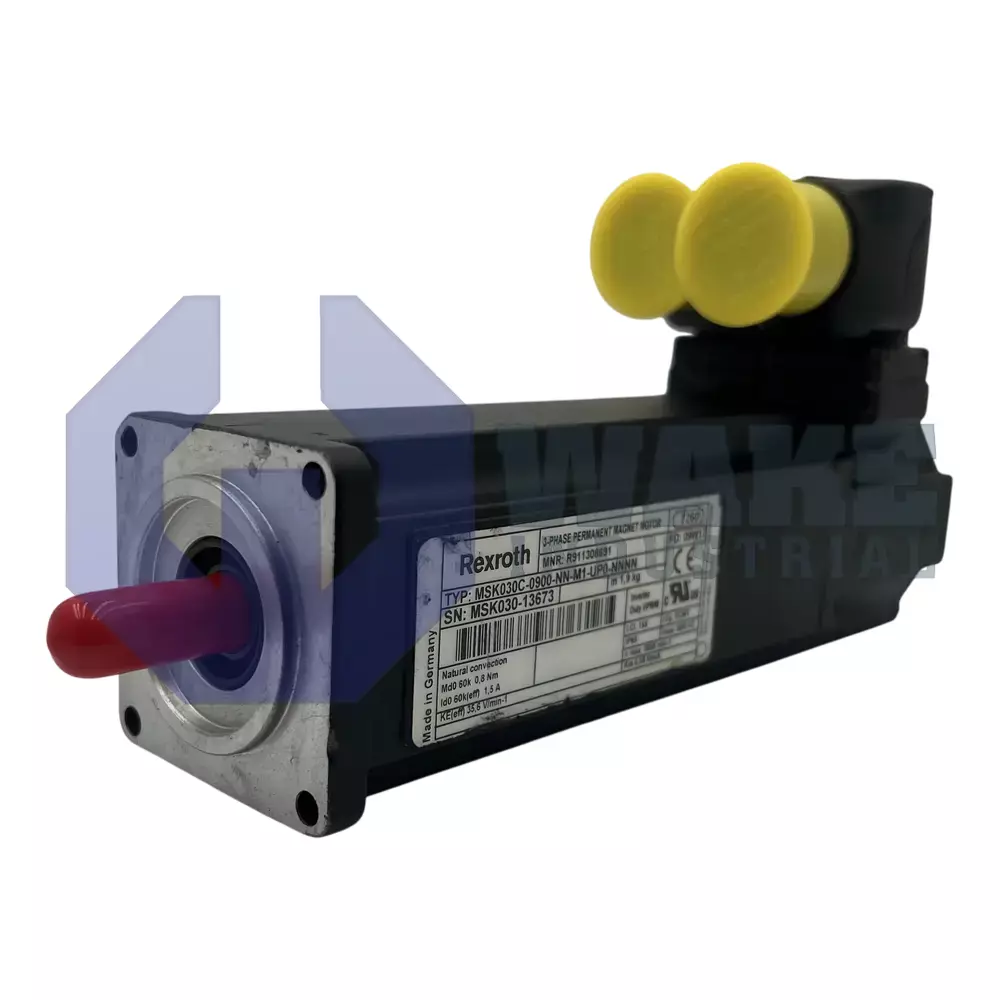

The MSK030C-0900-NN-M1-UP0-NNNN synchronous servo motor is manufactured by Bosch Rexroth Indramat and belongs to the MSK IndraDyn S Synchronous Motors series. As a compact rotary actuator, it converts electric power into torque for positioning and speed regulation in industrial automation equipment such as packaging modules and pick-and-place axes. The motor integrates an internal feedback system and standardized shaft geometry, allowing precise closed-loop motion while reducing the need for separate external encoders and extra wiring. It is well suited to indexing, transfer, and light handling tasks where repeatable rotary motion is required in a limited mounting space.

It relies on natural convection for heat dissipation, so the frame surface alone removes thermal energy and no forced-air or liquid cooling hardware is required. The power end is built to size code 030, which corresponds to a compact stator diameter suited to small machine spaces and compatible gearheads. Electrical behavior is set by winding code 0900, which corresponds to resistance and inductance values used by compatible IndraDrive amplifiers in low-to-medium torque ranges. Signal routing is simplified because the encoder connector is rotatable through 240°, allowing the cable exit to align with cabinet layouts without twisting the harness. Position data travel over the Hiperface interface, so feedback and absolute position information can pass through a single connection between the motor and the matching drive.

The feedback subsystem offers a resolution of 128 signal periods and uses an optical scanning principle that helps keep interpolation noise low at high speeds. Because the scanning head stores a multi-turn absolute value, the drive retains position after power loss and can resume operation without a homing routine. Mechanical holding torque is not provided because the unit is supplied without a holding brake, so static loads must be secured through the drive or an external brake. The absence of a brake also keeps the motor layout simple for applications that do not require load holding at standstill.
