MSK030C-0900-NN-M1-UG1-NSNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911318101
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
58 Seconds
The Bosch Rexroth Indramat MSK030C-0900-NN-M1-UG1-NSNN is part of the MSK IndraDyn S Synchronous Motors series and features a plain shaft with natural convection cooling. This servomotor is equipped with an optical multiturn absolute encoder using Hiperface technology and has a holding brake with 1 Nm torque. It is designed with standard and explosion protection options.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

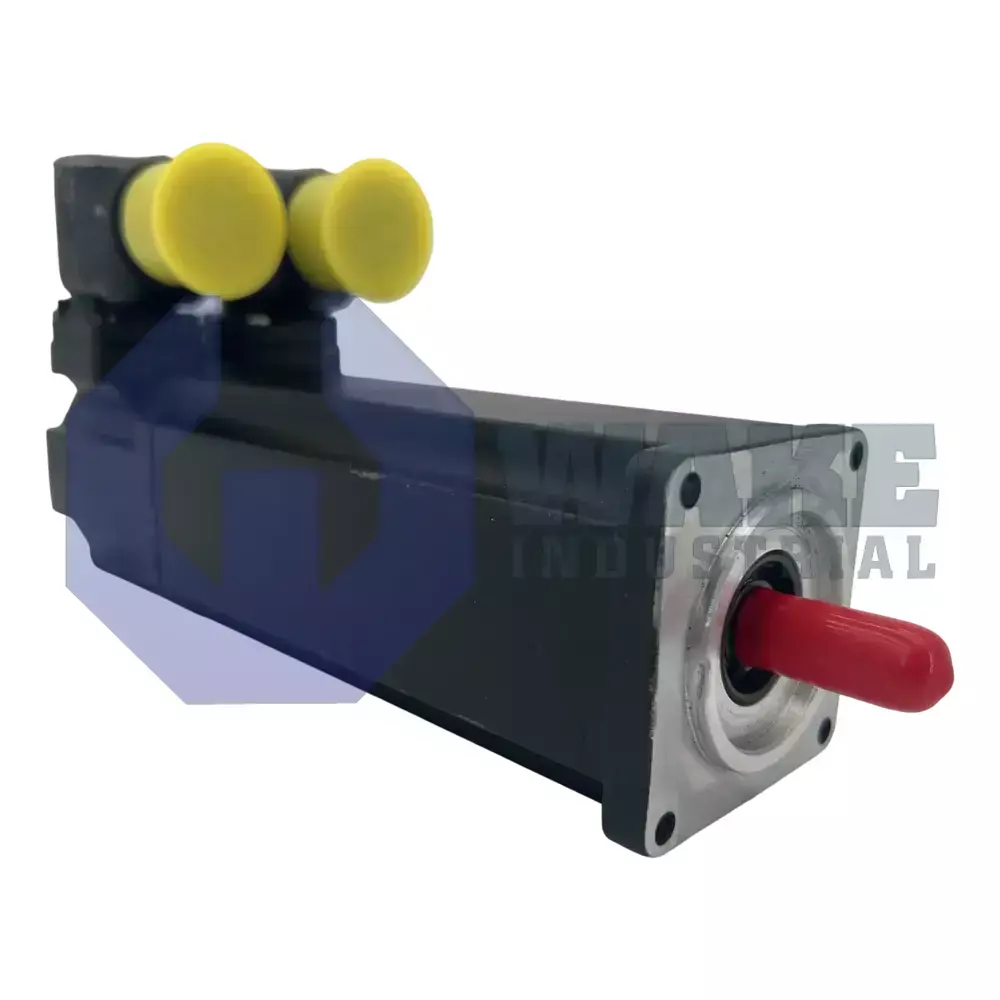

The MSK030C-0900-NN-M1-UG1-NSNN is a synchronous servo motor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Serving as the actuation element in closed-loop motion systems, this motor delivers repeatable torque and position feedback for pick-and-place modules, gantry axes, and other automated machinery that requires coordinated multi-axis control. By integrating a high-resolution feedback device and an electrically released brake, the unit maintains commanded position during dynamic operation and standstill, supporting safe and accurate automation cycles in packaging, printing, and material-handling environments. Its compact format also suits machine layouts where drive components must fit into limited installation space.
Heat is removed by natural convection, so the housing must be placed where surrounding air can carry away losses without auxiliary fans. The encoder connector is rotatable through 240°, allowing the plug to align with cable exits and reduce bending stress. Position data travels over the Hiperface digital link, while internal sensing uses an optical head that scans a disc with 128 signal periods. This arrangement provides fine incremental counts and an absolute reference with low electrical noise. The digital feedback path also helps the connected drive maintain stable commutation and accurate position tracking.
The feedback device is a multi-turn absolute encoder, so the drive receives the rotor’s revolutions across power cycles without an external homing routine. For mechanical holding during shutdown, an electrically released brake delivers 1 Nm of static torque. Coupled with the plain shaft, this permits direct coupling to pinions or compliant couplers while the brake locks motion when supply voltage is removed. Winding code 0900 identifies the stator’s resistance and inductance values, allowing the drive to apply correct current limits for the natural-convection thermal path and the high-resolution optical encoder. The holding brake also supports axes that must remain stationary when power is off.
Frequently Asked Questions about MSK030C-0900-NN-M1-UG1-NSNN:
Q: How is the MSK030C-0900-NN-M1-UG1-NSNN motor cooled?
A: The MSK030C-0900-NN-M1-UG1-NSNN motor is cooled by natural convection, operating without external fans.
Q: What type of encoder and interface does the MSK030C-0900-NN-M1-UG1-NSNN motor use?
A: This motor utilizes a multiturn absolute optical encoder with Hiperface interface for precise position feedback.
Q: What is the holding brake torque on the MSK030C-0900-NN-M1-UG1-NSNN and how is it released?
A: The holding brake on this model provides a torque of 1 Nm and is electrically released.
Q: How much can the encoder connector on the MSK030C-0900-NN-M1-UG1-NSNN rotate?
A: The encoder connector is rotatable up to 240°, allowing for flexible installation options.
Q: What shaft type is provided with the MSK030C-0900-NN-M1-UG1-NSNN motor?
A: A plain shaft design is featured on this servo motor, suitable for direct coupling applications.
