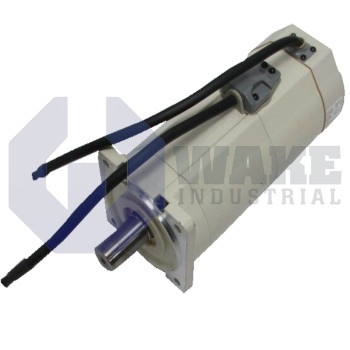

The Bosch Rexroth Indramat MMD082A-030-EG1-KN is a synchronous motor from the MMD Synchronous Motors series. It features a nominal motor speed of 3000 min-1 and a continuous torque at standstill of 2.4 Nm. This motor has a holding brake with a torque of 1.3 Nm and is protected with an IP65 rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MMD082A-030-EG1-KN belongs to the MMD Synchronous Motors series from Bosch Rexroth Indramat. As a compact servo motor, it is used in automated axes that need repeatable positioning and moderate continuous torque. Its integrated holding brake keeps the axis in position when power is off, and the incremental encoder with 2,500 increments sends feedback to the drive for closed-loop motion control. Because the brake and feedback are built into the motor, it suits compact automation systems where stable positioning and controlled stopping are important. The motor is intended for machinery that needs accurate motion without a large installation footprint.
This motor delivers a continuous standstill torque of 2.4 Nm and reaches a nominal speed of 3000 rpm. For short duty peaks, winding type 030 allows up to 6.9 Nm, and the maximum no-load speed is 4500 rpm. The higher peak capability supports brief acceleration events, while the available speed range gives the axis more flexibility during rapid moves. Mounting accuracy is supported by a 70 mm pilot on the flange. The electrically released brake operates on 24 V DC at 0.4 A and provides static holding torque, so an external clamp is not required on vertical axes. Motor connections exit on side A through a plug with about 25 cm of cable, and the plain shaft is fitted with a ring-type shaft seal to help protect the output end from contamination.
The motor has an IP65 enclosure, a mass of 3.7 kg, and a square flange that spans 90 mm. Its shaft journal measures 19 mm in diameter, which matches common servo couplings used in compact drive assemblies. Operation is permitted up to 1000 m above sea level without derating, and the A length code keeps the housing short for crowded multi-axis layouts. The square flange and shaft dimensions support straightforward integration with standard machine interfaces. This motor is well suited to packaging machines, pick-and-place heads, and other mid-speed equipment that depends on compact closed-loop motion control.
Frequently Asked Questions about MMD082A-030-EG1-KN:
Q: What shaft design and sealing does the MMD082A-030-EG1-KN motor feature?
A: The MMD082A-030-EG1-KN motor is fitted with a plain shaft that includes a sealing ring for better protection against dust and fluids.
Q: What type of encoder and resolution does the MMD082A-030-EG1-KN motor offer?
A: This model uses an incremental encoder with a resolution of 2,500 increments for precise position feedback.
Q: What is the maximum theoretical speed of the MMD082A-030-EG1-KN synchronous motor?
A: The maximum theoretical speed for this motor is 4,500 min-1, suitable for applications needing higher rotational speeds.
Q: Does the MMD082A-030-EG1-KN motor include a holding brake and what is its torque?
A: The MMD082A-030-EG1-KN comes equipped with a holding brake providing a holding torque of 1.3 Nm.
Q: What is the protection class rating for the MMD082A-030-EG1-KN motor?
A: This motor is rated with protection class IP65, making it highly resistant to dust and low-pressure water jets.
