Product Description:

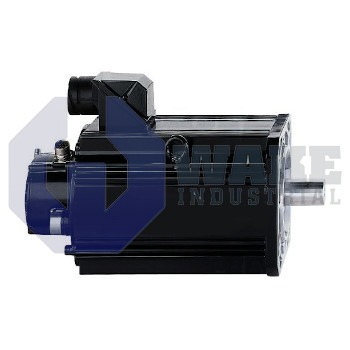

The MHP115C-024-HG1-BNNNNN is a permanent-magnet synchronous motor produced by Bosch Rexroth Indramat within the MHP Synchronous Motors series. The unit delivers closed-loop torque and speed control for positioning axes, gantries, and conveyor modules in automated machinery. Its electromechanical design converts three-phase drive output into precise rotary motion while maintaining feedback integration with compatible servo controllers. This arrangement supports stable motion where accurate positioning and repeatable speed response are required during automated operation.

At standstill, the motor can sustain a torque of 70.0 Nm when cooled by ambient air over its housing. Operation is permitted at ambient temperatures from 0 to +40 °C, so the surrounding machine area must remain within that range. The aluminum enclosure is rated IP65, which helps keep out dust and low-pressure water jets during normal industrial use. Its windings use F-class insulation for a 155 °C thermal limit, supporting dependable thermal performance under load. Position feedback comes from an incremental encoder with 2048 increments per revolution, allowing the drive to maintain fine speed and position control. The longer C-length stator stack adds copper volume for sustained load capability without changing the basic motor platform.

The motor includes an integrated spring-applied brake that clamps the shaft when power is removed, which helps hold the axis at rest. A plain shaft with a sealing ring is supplied, so external couplings seat directly on a smooth journal while the seal helps limit lubricant migration and contaminant entry. Frame size 115 identifies the mechanical interface and bolting pattern, while winding code 024 indicates the electrical characteristics expected by the matching drive. Power enters through a connector on side B, which can simplify cable routing where installation space is limited or where the machine layout favors side-mounted connections.
