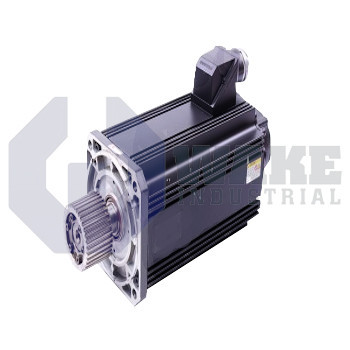

MHP115C-024-HG1-AFNNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299535
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MHP115C-024-HG1-AFNNNN is part of the MHP Synchronous Motors series and features a continuous standstill torque of 70 Nm with liquid cooling housing. This motor has a plain shaft with sealing ring, comes equipped with a holding brake delivering 70 Nm torque, and is built with IP65 protection. It includes an incremental encoder with 2048 increments for motor feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHP115C-024-HG1-AFNNNN is a synchronous servo motor built by Bosch Rexroth Indramat as part of the MHP Synchronous Motors series. With motor size 115 and length code C, it delivers high torque in a relatively short housing. The motor is intended for closed-loop positioning and velocity tasks when paired with compatible drives in automated machining, material handling, and packaging systems. Because it uses synchronous servo operation with feedback-based control, it supports accurate motion profiles during acceleration, steady running, and deceleration.
The motor can supply 70.0 Nm of continuous standstill torque under natural convection, so it can sustain rated torque at zero speed without forced airflow. Its housing is prepared for liquid cooling, which improves heat removal during demanding duty cycles. Rotor position is reported through an incremental encoder with 2048 increments, giving the controller clear feedback for speed and position regulation. The enclosure has an IP65 rating that helps keep out dust and low-pressure water jets. For controlled stops during power loss, an integrated brake provides 70.0 Nm of holding brake torque, helping prevent axis drift. The 024 winding code sets the electrical characteristics expected by the associated drive. This combination is useful on axes that must stop accurately and remain in position when motion is no longer commanded.
The motor is specified for an ambient range of 0 to +40 °C, so it should be installed where surrounding air stays within that limit during operation. The windings use Class F insulation, which supports elevated internal temperatures during cyclic loading. A plain shaft with a sealing ring transfers torque to the driven mechanism while helping keep contaminants away from internal bearing areas. The sealing ring is useful where light splash or airborne debris may be present near the coupling area. The power leads exit through a connector on side A, which can simplify cable routing when the motor is mounted in compact machinery. This connection position also helps keep the cable path clear of adjacent moving components.
