Product Description:

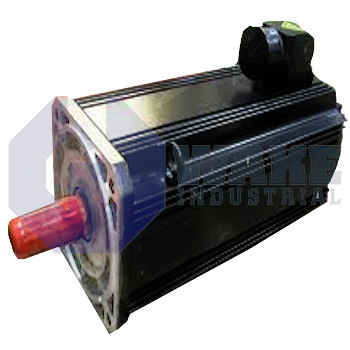

The MHP115C-024-HG0-ANNNNN is a three-phase synchronous servo motor produced by Bosch Rexroth Indramat for the MHP Synchronous Motors series. In automated machinery, the unit converts drive commands from a servo amplifier into precise rotation of a load shaft, allowing coordinated motion in packaging stations, material handling axes, and CNC positioning tables. Its electromechanical design aligns with industrial automation needs where accurate torque delivery, repeatable speed control, and sealed construction are required.

At stall, the motor supplies a continuous torque of 70.0 Nm, giving machinery the ability to hold tooling firmly without overheating. Heat leaves the stator through a housing that relies on natural convection, so no external blower or liquid circuit is needed under rated load. A plain shaft fitted with a sealing ring keeps lubricant in and contaminants out, while the design is delivered without a holding brake, making external clamps necessary when power-off position retention is required. Position feedback comes from an incremental encoder that provides 2048 increments per revolution, enabling fine step resolution for the drive controller. The enclosure has an IP65 rating, protecting internal windings from dust and directed water, and the insulation system uses Class F thermal limits.

Thermal and dimensional limits affect installation choices. An allowable ambient range of 0 to +40 °C means the motor can be mounted in most factory environments without derating, provided airflow around the frame is maintained. The frame uses size code 115, while the active magnetic set uses winding code 024, which corresponds to the nominal voltage and current used by the matching drive. C-length construction provides a longer lamination stack for higher torque density without changing the mounting footprint, and power conductors exit through a connector oriented toward side A, simplifying cable routing inside the cabinet.
