Product Description:

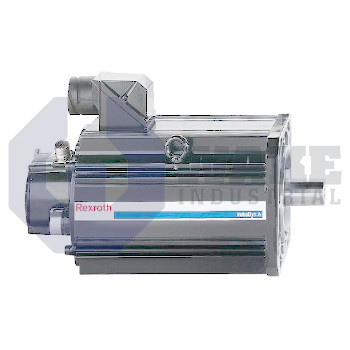

The MHP115A-024-HG1-ANNNNN is an AC synchronous servo motor produced by Bosch Rexroth Indramat and placed within the MHP Synchronous Motors series. It is built in the short A length to minimize overall depth. The motor is intended for positioning and velocity control in automated machinery where direct coupling and repeatable motion are required. As a synchronous servo motor, it works with a matching drive to convert commanded current into controlled rotary motion. It connects to Indramat drive controllers through its side-A power connector and returns feedback to the drive for closed-loop current, speed, and position control.

At standstill, the motor can deliver a continuous torque of 32.0 Nm when cooled through its aluminum housing. That housing uses natural convection, so no external fan or liquid circuit is required. The stator uses winding code 024, which identifies the electrical winding arrangement used for this motor and helps the connected drive apply the correct operating values. The housing is sealed to IP65, which helps keep out dust and low-pressure water jets, and the plain output shaft includes a sealing ring. For feedback, an incremental encoder provides 2048 increments per revolution, giving the drive accurate position and speed data during closed-loop operation.

When the axis must remain fixed during power loss, the integrated brake provides 70.0 Nm of holding torque. Operation is permitted at ambient temperatures from 0 to +40 °C, and the windings use class-F insulation to withstand elevated internal temperatures. The motor follows the IEC frame associated with size 115, which gives it the mounting envelope used for this frame class. This arrangement places the brake, feedback device, and cooling method in a compact servo package for machine axes with limited installation space.
