Product Description:

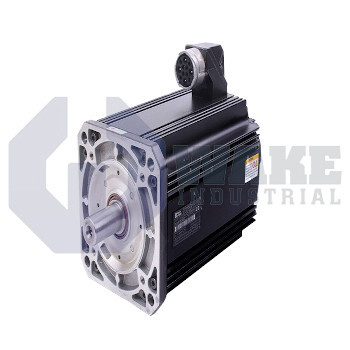

The MHP115A-024-HG0-ANNNNN is a synchronous motor manufactured by Bosch Rexroth Indramat for the MHP Synchronous Motors series. It converts three-phase electrical power into controlled rotary motion for indexing tables, gantry axes, and material-handling equipment, supporting closed-loop velocity and position control through its integrated feedback element. Its synchronous design gives stable torque response during repeated start-stop cycles and controlled speed changes in automated machinery. The mounting flange follows the series geometry, so the motor fits machine layouts that use the same mechanical interface.

Under rated conditions, the motor supplies a continuous 32.0 Nm of standstill torque, enough for moderate static loads without auxiliary cooling hardware. A plain shaft with a sealing ring transfers this torque to the driven machine while helping keep lubricant in place and contaminants away from the bearing area. The drive controller receives position data from an incremental sensor that outputs 2048 increments per revolution, allowing accurate speed correction and repeatable positioning over each shaft turn. The windings use F-class insulation, which supports winding temperatures up to 155 °C. The cast enclosure has an IP65 rating that helps protect internal parts from dust and low-pressure water spray.

The housing uses natural convection for cooling, so continuous duty is supported when surrounding air remains between 0 to +40 °C and no fan or liquid circuit is required. The motor comes without a holding brake, which reduces rotating inertia and removes the need for a separate brake supply. Winding code 024 identifies the electrical winding used for this model and matches the motor's intended drive pairing. All power conductors terminate through a connector on side A, which lets the cable route directly toward the cabinet in layouts with the connector facing outward.
