Product Description:

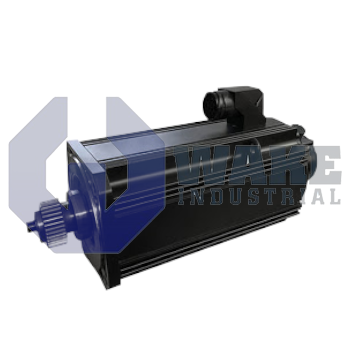

The MHP112C-024-HP0-BNNNNN belongs to the MHP Synchronous Motors series produced by Bosch Rexroth Indramat. It is a brushless AC servo motor used in industrial automation for closed-loop positioning and speed control of machine axes. This operating role supports repeatable motion and fast dynamic response in equipment that must maintain accurate speed and position under changing loads. It is suited for coordinated axis movement in packaging, handling, and other automated machinery.

The motor is designed to operate in ambient temperatures from 0 to +40 °C, and staying within this range avoids derating of continuous output. At standstill, natural cooling allows a continuous torque envelope of 38.0 to 43.5 Nm, providing sufficient static force for holding loads during dwell periods. Rotor position is reported through an incremental encoder with 2048 increments, giving compatible drive controllers fine resolution for velocity and position loops. Heat is removed through the housing surface by natural convection, so space around the motor is important when the unit runs near maximum load. Insulation materials meet class F limits, which means the stator windings can tolerate temperatures up to 155 °C before thermal aging accelerates.

A keyed shaft with a sealing ring transmits torque while helping block oil or dust migration along the shaft bore. The enclosure meets IP65, which protects internal parts from dust ingress and low-pressure water jets common on production floors. Power enters through a connector on side B, which can simplify cable routing when the motor face is oriented toward the operator. The stator uses winding code 024, which matches the electrical characteristics expected by the compatible drive. The design omits a holding brake, so any power-off locking function must be provided by an external clamping device or by the machine system.
