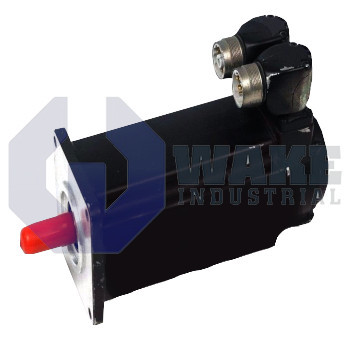

MHP112C-024-HG3-BNNNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911283720
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
27 Seconds
The Bosch Rexroth Indramat MHP112C-024-HG3-BNNNNN is part of the MHP Synchronous Motors series and has a motor size of 112 with length C. This synchronous motor features a plain shaft with sealing ring, natural convection housing, and a holding brake torque of 70 Nm. It uses an incremental encoder with 2048 increments for motor feedback and provides continuous torque at standstill between 38.0 and 43.5 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHP112C-024-HG3-BNNNNN synchronous motor is manufactured by Bosch Rexroth Indramat as part of the MHP Synchronous Motors series. This AC servomotor converts controlled electrical input from a compatible Rexroth drive into regulated mechanical torque for industrial automation. It is suited to pick-and-place robots, packaging machinery, and CNC feed axes where accurate speed and position control are required. Its electromagnetic design supports rapid acceleration and repeatable motion, which helps the axis respond quickly to changing commands during continuous machine operation.
At standstill, the motor delivers continuous torque from 38.0 to 43.5 Nm when cooled by natural convection, allowing it to sustain steady load without thermal overload under the stated operating conditions. An integrated holding brake supplies 70.0 Nm of locking torque so vertical or suspended axes can remain fixed when power is removed. The enclosure carries an IP65 rating, which protects the motor against dust and low-pressure water jets for installation directly on the machine. Rotor position is reported by an incremental encoder with 2048 increments, giving the drive fine feedback for stable regulation. Winding code 024 identifies the stator configuration used for this motor and matches it with the appropriate drive settings.
The permitted ambient temperature range is 0 to +40 °C, and the insulation system uses F class materials to support reliable thermal performance within that range. Power enters through a connector on side B, which can simplify cable routing along linear axes and compact machine frames. The output uses a plain shaft with a sealing ring to protect internal bearings while supporting the stated enclosure protection. Heat is removed by natural convection, so the housing does not require an external fan. The active length is C within the 112 frame size, allowing the motor to share the standard mounting interface used across comparable MHP models.
Frequently Asked Questions about MHP112C-024-HG3-BNNNNN:
Q: What type of drive shaft does the MHP112C-024-HG3-BNNNNN motor use?
A: The MHP112C-024-HG3-BNNNNN has a plain shaft with a sealing ring for effective protection against dust and moisture.
Q: Does the MHP112C-024-HG3-BNNNNN feature a holding brake and what is its holding torque?
A: This motor is equipped with a holding brake that offers a holding torque of 70.0 Nm.
Q: What is the continuous standstill torque for the MHP112C-024-HG3-BNNNNN?
A: The rated continuous torque at standstill with natural convection ranges from 38.0 to 43.5 Nm.
Q: What type of motor feedback does the MHP112C-024-HG3-BNNNNN use?
A: This model provides motor feedback via a 2048-increment incremental encoder.
Q: What is the protection category of the MHP112C-024-HG3-BNNNNN motor?
A: The MHP112C-024-HG3-BNNNNN offers IP65 protection, making it resistant to dust and water jets.
