Product Description:

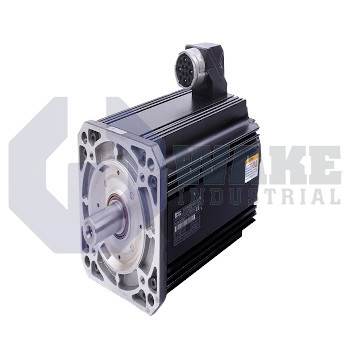

The MHP112B-024-HG1-ANNNNN is a synchronous motor manufactured by Bosch Rexroth Indramat for the MHP Synchronous Motors series. The unit functions as an electromechanical actuator in industrial automation, converting controlled drive current into precise rotation for indexing tables, gantry axes, and press feeds. Its mechanical envelope follows the 112 frame code of the series, and the B length variant provides a mid-range stacking height that balances torque capability with installation depth. Used with a compatible drive, the motor supports controlled acceleration, steady running, and accurate stopping on machine axes that require repeatable motion.

Under natural cooling, the motor can deliver a continuous standstill torque of 28.0 to 31.0 Nm, allowing stable holding or low-speed operation without overheating. The aluminum housing is sealed to IP65, so dust and water jets do not reach the internal windings during routine washdown. Operation is permitted at ambient temperatures of 0 to +40 °C, which suits common indoor industrial environments. The motor uses a plain shaft with a sealing ring, and heat is removed by natural convection, so no external blower is required for basic thermal management.

Dynamic stopping and position retention are handled by an integrated brake that provides 22.0 Nm of holding torque when the axis is de-energized. Position data is returned by an incremental encoder with 2048 increments, allowing the drive to monitor shaft movement and close the speed and position loops with moderate resolution. The stator insulation is Class F, which supports continuous operation at elevated winding temperatures during demanding duty cycles. Electrical characteristics correspond to winding code 024, and the power connector is oriented toward side A for direct cable routing along one side of the machine.
