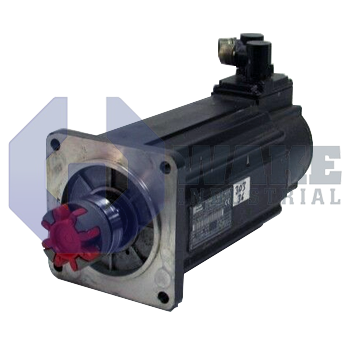

The Bosch Rexroth Indramat MHP093C-035-HG1-BFNNNN is part of the MHP Synchronous Motors series and features liquid cooling and a housing rated at IP65. This motor provides a continuous torque at standstill of 23.0 to 28.0 Nm and includes a plain shaft with a sealing ring as well as a holding brake rated at 20.0 Nm. It uses an incremental encoder with 2048 increments for motor feedback and is built with insulation class F.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHP093C-035-HG1-BFNNNN is a synchronous motor manufactured by Bosch Rexroth Indramat and belongs to the MHP Synchronous Motors series. Within an automation cell, it operates as an electromechanical actuator that delivers commanded torque and speed to belts, gears, or direct-drive tables. A plain shaft with a sealing ring supports direct mechanical coupling while helping keep fluids and fine particulates away from internal components. Its synchronous design supports closed-loop motion where the drive continually adjusts current to maintain stable rotation under changing loads.
During continuous standstill operation under natural convection, the motor can sustain a torque between 23.0–28.0 Nm, providing holding force for indexing loads before motion begins. Thermal load is moderated by the integrated liquid cooling jacket, allowing higher duty cycles than comparable air-cooled motors and promoting more consistent heat removal during repeated cycles. The housing carries a protection rating of IP65, so the stator windings remain isolated from dust and low-pressure water jets encountered on factory floors. Position and speed feedback are generated by an incremental encoder with 2048 increments, giving the connected drive fine feedback resolution for commutation and speed regulation. Acceptable operating environments extend from 0 to +40 °C, making the unit suitable for standard indoor industrial settings.
Dynamic stops are secured by the integrated holding brake that supplies 20.0 Nm whenever the controller removes power. Winding code 035 identifies the electrical configuration used by the motor so the matching drive can be paired correctly. Class F insulation supports elevated winding temperatures during cyclic overloads, and frame size 093 identifies the shared mechanical envelope used in this motor family. The power connector is oriented toward side B, which can simplify cable routing in multi-axis gantries, and length designation C indicates a longer motor stack for increased torque capability within this frame.
Frequently Asked Questions about MHP093C-035-HG1-BFNNNN:
Q: What type of drive shaft is provided on the MHP093C-035-HG1-BFNNNN?
A: This motor uses a plain shaft with a sealing ring to provide reliable shaft sealing and prevent contamination.
Q: What cooling method does the MHP093C-035-HG1-BFNNNN utilize?
A: The housing of the MHP093C-035-HG1-BFNNNN is designed for liquid cooling to help manage high-performance heat dissipation demands.
Q: Does this motor have a holding brake and what is its torque rating?
A: The MHP093C-035-HG1-BFNNNN is equipped with a holding brake that delivers 20.0 Nm of torque.
Q: What type of encoder and resolution does the MHP093C-035-HG1-BFNNNN use?
A: The encoder used on this model is an incremental type, offering 2048 increments for accurate feedback.
Q: What is the continuous torque at standstill for the MHP093C-035-HG1-BFNNNN?
A: This motor provides a continuous standstill torque ranging from 23.0 to 28.0 Nm with natural convection.
