Product Description:

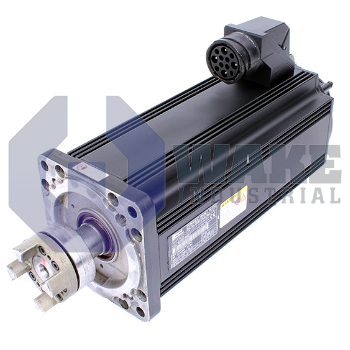

The MHP093B-035-HG0-ANNNNN is a synchronous servo motor produced by Bosch Rexroth Indramat and assigned to the MHP Synchronous Motors series. Designed for closed-loop drive systems, the unit converts electrical energy into controlled rotary motion for positioning or speed regulation tasks on automated machinery. It serves in environments where compact servo axes, coordinated through digital drives, must deliver precise torque under varying load conditions.

At a standstill, the motor delivers continuous torque from 17.5 to 20.0 Nm, giving machinery steady holding or low-speed drive capability without forced ventilation. Position feedback comes from an incremental encoder with 2,048 increments, enabling fine resolution for drive controllers that rely on quadrature pulse counting. A rating of IP65 seals the housing against dust ingress and low-pressure water jets, so the frame can be mounted directly on process equipment. The allowed ambient range is 0 to +40 °C, which keeps winding temperatures within class limits when the motor is fully loaded. Electrical parameters follow winding code 035, matching inductance and resistance to MHD and MKE drives of the corresponding current class.

The mechanical interface uses a plain shaft with a sealing ring, preventing lubricant migration into the bearing seat while transmitting torque through clamp or coupling hubs. Windings are insulated to class F, permitting internal temperatures up to 155 °C before degradation. Heat leaves the stator by natural convection, so no external fan is required and audible noise is minimized. Power cabling exits through a side-mounted connector on side A, simplifying routing inside compact cabinets. The motor uses size 093 with length code B, giving a compact installation envelope. It is supplied without a holding brake, so external holding force is required when the axis must remain fixed after power is removed.
