MHD115A-024-PG1-AA

  • Rated 4.5 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911289836
    In-Stock, Ships 3-5 Days
  • Unused Original Box Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

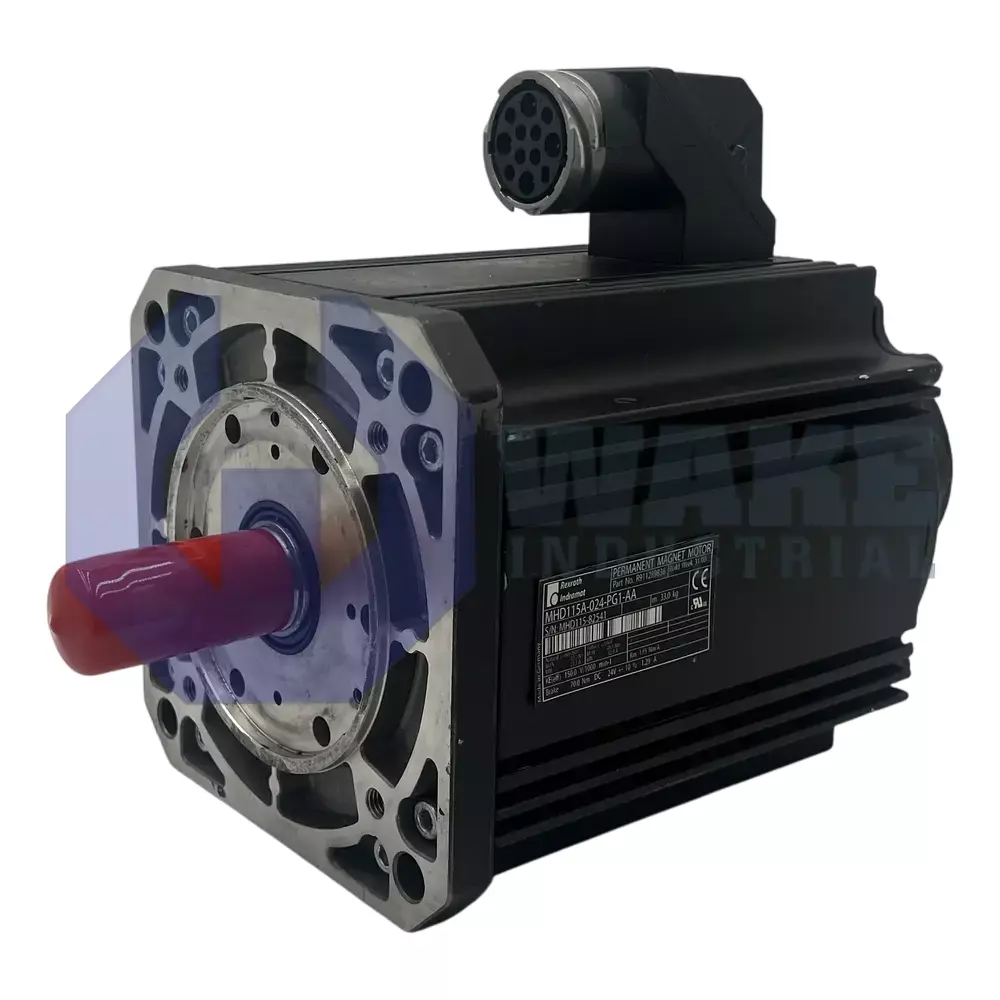

The MHD115A-024-PG1-AA Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 24 and has a Multiturn Motor Encoder. The Driven Shaft for this motor is Plain and it is Equipped with a holding brake.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is a manufacturer of industrial drive control systems and motion control products.

The MHD115A-024-PG1-AA is a high quality synchronous motor. This motor comes from the MHD series of motors that are known for their universality and high functional reliability. The motor is very durable during operation and can be used at different operating speeds. This model is highly suitable for assembly line automation because of its ability to support high speed start stop tasks. The motor is provided with state of the art permanent magnets that have the ability to produce an increased amount of magnetic flux and a high energy density. This results in the motor’s ability to produce a high amount of torque at different operating speeds. Various types of systems can be integrated with this model and the motor can be attached to various types of host machines.

The MHD115A-024-PG1-AA can be used in varying external climates. The motor should ideally be used within external temperatures of 0 °C and 40 °C. The maximum achievable velocity with this model is 4000 rpm while the characteristic motor speed is 2000 rpm. This model is very reliable during operation and can be used in areas where a high torque output is required at varying output speeds. The position control ability of this model is also very impressive because of the use of high-quality drive control systems that have been made compatible with this model. The advanced drive controllers have the ability to monitor the rotor’s position at every instant and rectify any mismatch between the actual and programmed values. This model comes with a theoretical maximum torque of 110 Nm.

  • MHD115A024PG1AA
  • MHD115A 024 PG1 AA
  • mhd115a-024-pg1-aa

MHD115A-024-PG1-AA Technical Specifications

Product: Industrial motor
Pole pairs: 4
Encoder: Digital servo feedback with integrated encoder
Shaft: Plain
Cooling: Natural convection and surface cooling
Holding brake: 70 Nm brake
Rated speed: 2000 RPM
Maximum speed: 4000 RPM
Weight: 30 kg
Housing varnish: Prime coat black

Frequently Asked Questions about MHD115A-024-PG1-AA


Q: What is the main benefit of a holding brake?

A: A holding brake is designed to prevent accidents by preventing accidental or unintentional motor shaft rotation.

Q: What type of brake is installed on the motor?

A: The brake installed on the motor operates according to the principle of electrical release.

Q: What are specifications for the holding brake?

A: Holding torque of the brake is 70 Nm, its voltage rating is 24 VDC and its weight is 3.8 kg.

Q: Is the rated motor torque constant or variable?

A: The rated torque depends on the cooling method, with surface cooling enabling higher rated torque.

Q: What is surface cooling?

A: It is a cooling method that uses airflow from a fan or blower to increase the rate of heat dissipation.

Internal Product Review

  • ‘‘MHD115A-024-PG1-AA is an advanced synchronous servo motor with optional holding brake.’’
