The Bosch Rexroth Indramat MHD115A-058-PG1-AA is a servo motor in the MHD Synchronous Motors series with a continuous standstill torque of 32.0 Nm and a holding brake torque of 70.0 Nm. This model features IP65 protection, a flange size of 192 mm, a plain shaft with shaft seal, and operates with digital servo feedback from an integrated encoder. It has a natural convection cooling system and an insulation class F rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

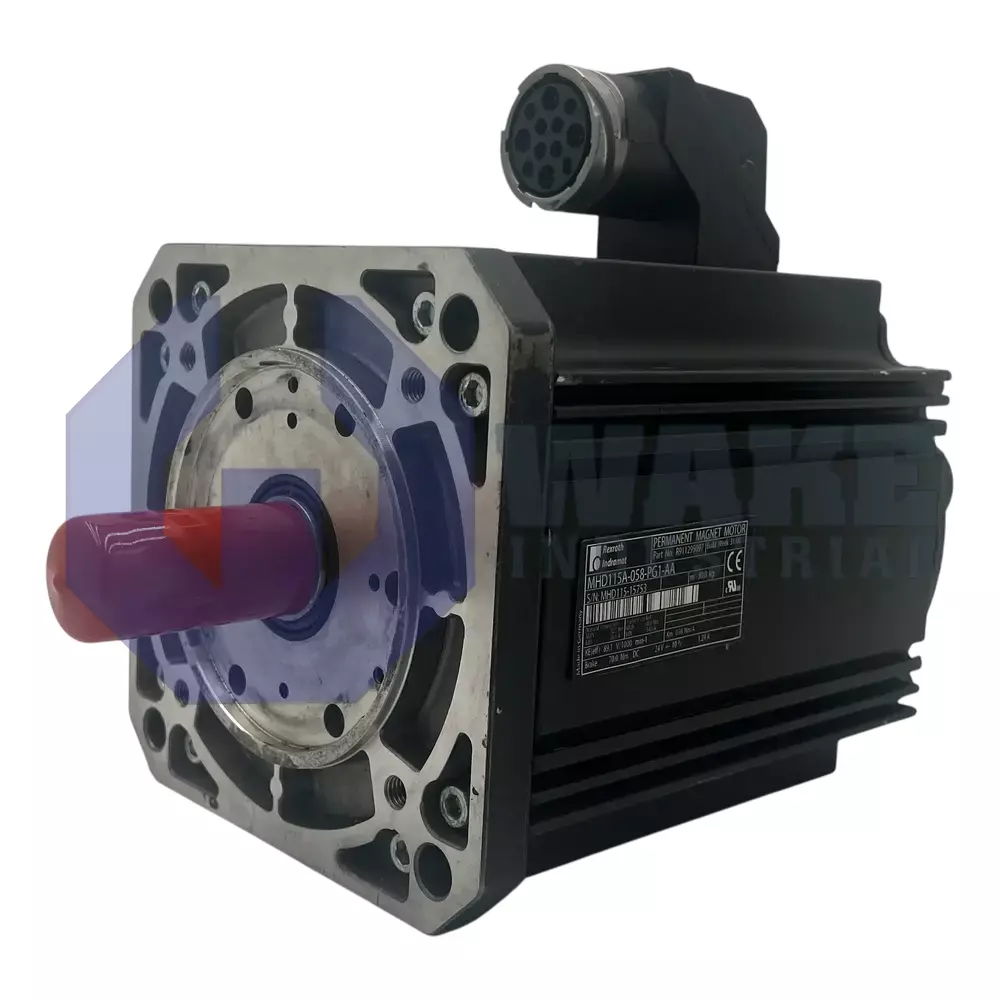

The MHD115A-058-PG1-AA is a servo motor manufactured by Bosch Rexroth Indramat and assigned to the MHD Synchronous Motors series. Designed for tightly controlled industrial axes, the motor combines integrated digital servo feedback with an absolute encoder so a drive controller can monitor shaft position over more than 4,096 revolutions without using external sensors. Its design simplifies line-side wiring when the motor is installed in packaging, printing, and material-handling equipment. This feedback arrangement supports stable positioning during repeated motion and after power cycling.
At standstill, the motor can exert 32.0 Nm of continuous torque, which represents the constant load it may hold without exceeding thermal limits. The housing carries an IP65 rating, blocking dust ingress and low-pressure water jets so separate enclosure panels are unnecessary in many installations. A 192 mm square mounting flange aligns with a 180 mm centering diameter, giving a repeatable reference surface for gearboxes or machine frames. Heat created by copper losses leaves the stator through natural convection, eliminating the need for external blowers. Winding code 058, motor length A, and size 115 establish the motor's electrical and geometric format, while the power leads exit on side A through an output connector. A shaft seal is fitted to limit lubricant escape and help keep contaminants away from the bearing area.
Dynamic holding tasks are supported by an integrated brake that clamps the rotor with 70.0 Nm of torque when power is removed. Position feedback is measured optically, and the closed-loop system delivers ± 0.5 angular minutes of system accuracy for repeatable indexing. Class F insulation allows the windings to reach elevated temperatures while remaining reliable within an operating envelope of 0 to 40 °C. When the machine is idle, the motor may be stored between -20 to +80 °C without damage. A plain shaft and a maximum installation height of 1,000 m above mean sea level broaden application options in automated assembly lines.
Frequently Asked Questions about MHD115A-058-PG1-AA:
Q: What is the shaft design of the MHD115A-058-PG1-AA motor?
A: The MHD115A-058-PG1-AA features a plain shaft with a shaft seal for better protection against contaminants.
Q: Does the MHD115A-058-PG1-AA include a holding brake?
A: Yes, this model is supplied with a holding brake providing a torque of 70.0 Nm.
Q: What level of ingress protection does the MHD115A-058-PG1-AA provide?
A: The degree of protection for this motor is rated at IP65.
Q: What type of encoder feedback does the MHD115A-058-PG1-AA use?
A: The MHD115A-058-PG1-AA utilizes digital servo feedback with an integrated encoder for position detection.
Q: What is the continuous torque at standstill for the MHD115A-058-PG1-AA motor?
A: The continuous torque at standstill for this model is 32.0 Nm.
