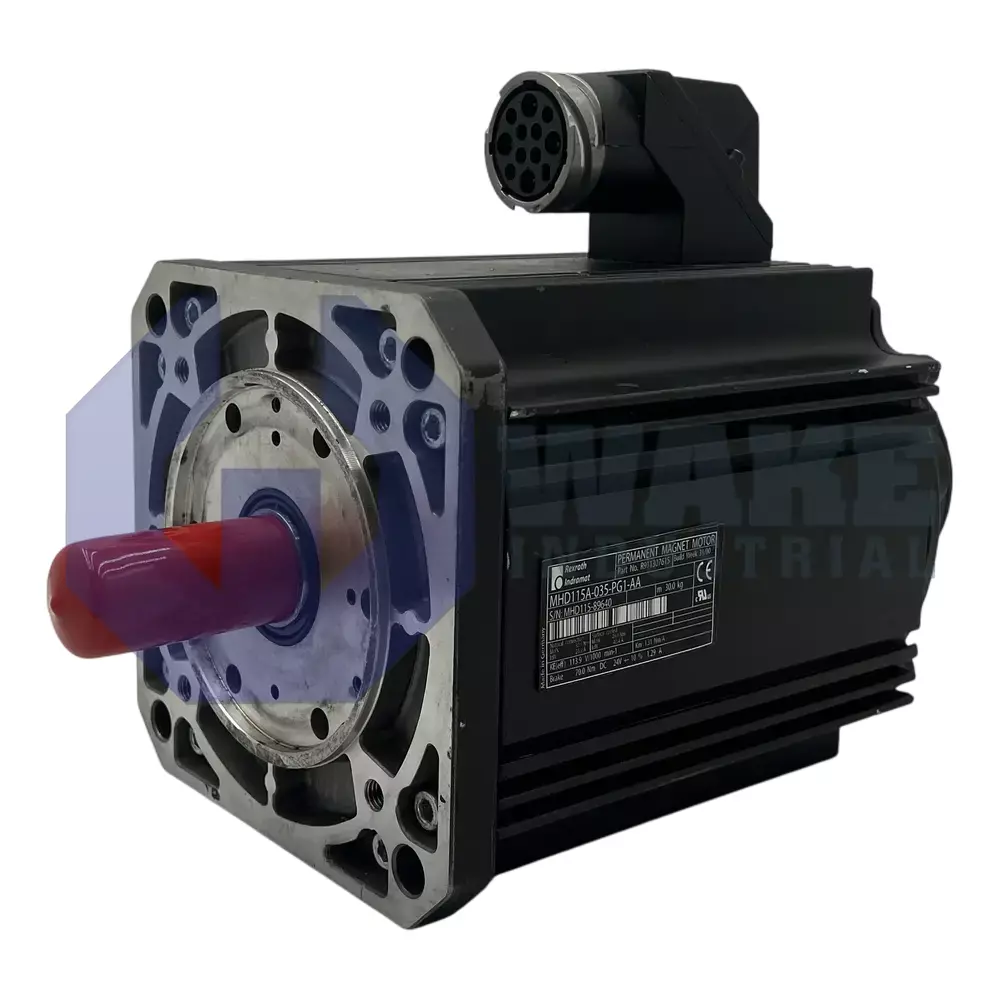

MHD115A-035-PG1-AA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307615
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
59 Seconds
The Bosch Rexroth Indramat MHD115A-035-PG1-AA is a servo motor from the MHD Synchronous Motors series, featuring a 192 mm flange size and a continuous torque at standstill of 32.0 Nm. It is equipped with a digital servo feedback encoder, offers an IP65 degree of protection, and operates with a holding brake torque of 70.0 Nm. The motor uses natural convection for housing cooling and supports absolute position detection for over 4096 revolutions.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD115A-035-PG1-AA is a servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. As a closed-loop actuator, it converts drive current into controlled rotary motion for positioning tasks in automated machinery, material-handling axes, and packaging stations. This motor is intended for applications that require coordinated motion, repeatable positioning, and stable speed control under varying load conditions. It uses a plain shaft with an integrated shaft seal, and its digital servo feedback combines an absolute encoder with optical measurement to report position over more than 4096 revolutions.
The motor has a centering diameter of 180 mm and a flange size of 192 mm, which support accurate mounting on standard machine interfaces. It delivers a continuous standstill torque of 32.0 Nm when energized, allowing the axis to hold load without stalling. The housing is rated IP65, which helps protect internal components from dust and water jets. Cooling is provided by natural convection, so no external blower is required. Insulation class F supports the winding temperature limits associated with this cooling method. Power is connected through an output connector on side A, and the motor uses size 115, motor length A, and winding code 035.
The factory-mounted holding brake provides 70.0 Nm to secure vertical or suspended loads during power loss. The encoder system accuracy is ± 0.5 angular minutes, which supports precise positioning at low speed. The motor can operate in ambient temperatures from 0 to 40 °C. Storage and transport are allowed from -20 to +80 °C without damage. Installation is permitted up to 1000 m above mean sea level, and the absolute feedback system allows multi-turn position tracking without relying on a fresh reference after every shaft rotation.
Frequently Asked Questions about MHD115A-035-PG1-AA:
Q: What type of shaft does the MHD115A-035-PG1-AA motor feature?
A: The MHD115A-035-PG1-AA motor includes a plain shaft with a shaft seal for secure and leak-free operation.
Q: Does the MHD115A-035-PG1-AA motor have a holding brake?
A: This motor is equipped with a holding brake that delivers a braking torque of 70.0 Nm for secure holding when powered off.
Q: What is the continuous torque at standstill for the MHD115A-035-PG1-AA?
A: The MHD115A-035-PG1-AA achieves a continuous torque at standstill of 32.0 Nm, supporting stable and consistent performance.
Q: Which encoder and position detection system is used in the MHD115A-035-PG1-AA motor?
A: A digital servo feedback system with integrated encoder and optical measurement ensures absolute position detection for over 4096 revolutions.
Q: What is the system accuracy of the MHD115A-035-PG1-AA servo motor?
A: The MHD115A-035-PG1-AA provides system accuracy within ±0.5 angular minutes for precise motion control applications.
