MHD115A-035-NG1-BA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911311885
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
49 Seconds

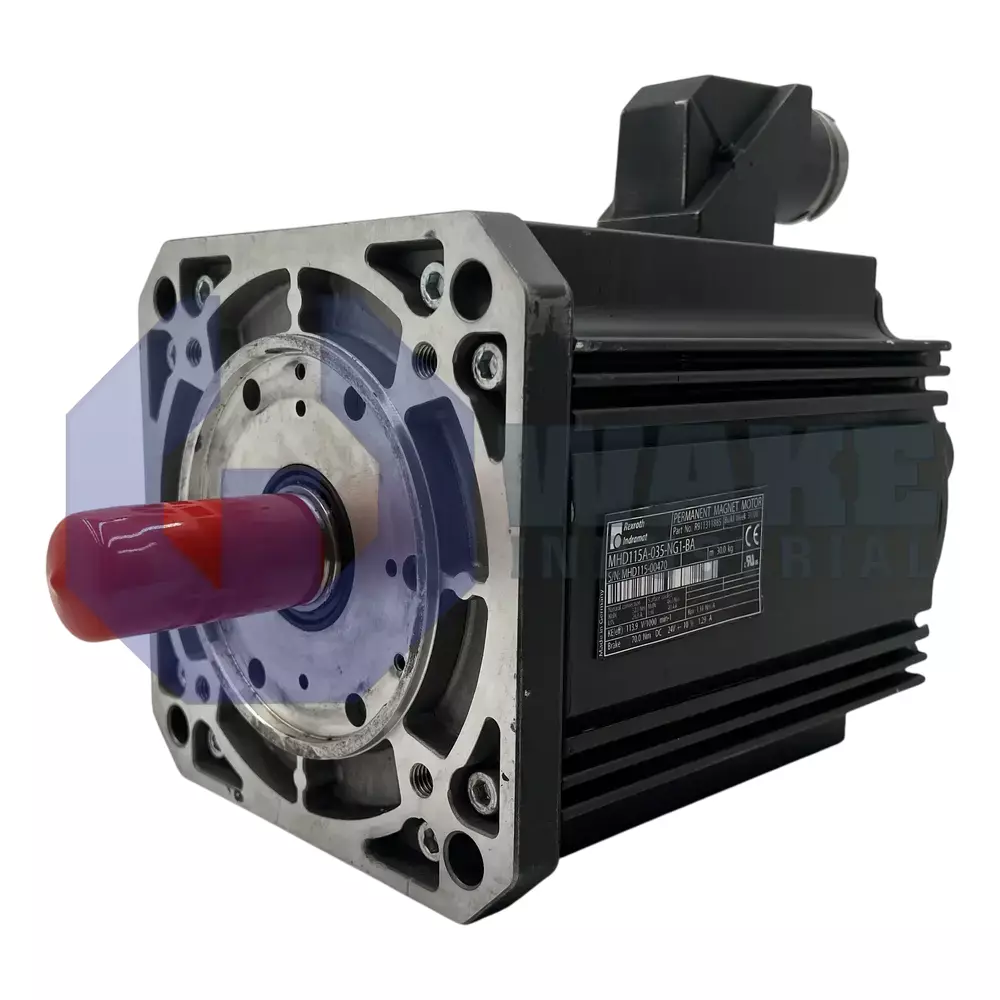

The Bosch Rexroth Indramat MHD115A-035-NG1-BA is a servo motor from the MHD Synchronous Motors series, featuring a flange size of 192 mm and a centering diameter of 180 mm. It comes with digital servo feedback, has a continuous torque at standstill of 32.0 Nm, and holds an IP65 degree of protection. The motor is equipped with a holding brake rated at 70.0 Nm and uses natural convection for housing cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the MHD115A-035-NG1-BA within the MHD Synchronous Motors series. This AC servo motor supplies regulated torque and velocity for positioning axes, pick-and-place modules, and coordinated conveyor drives in automated plants. In these roles, it converts electrical commands from the drive into rotary motion that can start, stop, and reverse with predictable control. Integrated digital feedback supports accurate closed-loop motion, while the sealed housing and plain output shaft allow direct coupling to machine elements in continuous-duty service. This arrangement helps the drive maintain stable speed and position when the load changes during acceleration, transfer, or dwell periods.
At standstill the motor can deliver 32.0 Nm continuously, and a built-in holding brake supplies 70.0 Nm when power is removed. The enclosure is rated IP65, and heat is removed by natural convection, so no external cooling hardware is required. Rotor position is captured by digital servo feedback (HSF), and the motor uses a 192 mm square flange for mounting. The stator uses winding code 035 with class F insulation, power exits through a connector on side B, and the plain shaft includes a shaft seal to limit ingress. The brake is useful where the axis must remain in place after the power stage is shut off, and the sealed shaft area helps reduce contaminant entry at the output end.
Positioning repeatability is held within ± 0.5 angular minutes, and the feedback system uses relative position detection with an optical measurement method. Relative feedback allows the controller to track incremental movement precisely after the reference position has been established. The mechanical interface includes a 180 mm centering pilot and motor length A, which help align the housing on the mating machine surface. The motor is intended for ambient conditions from 0 to 40 °C; installation is permitted up to 1000 m above mean sea level, and stored equipment can withstand -20 to +80 °C. The stated ambient and storage ranges cover powered operation, shutdown storage, and transport between controlled indoor locations.
Frequently Asked Questions about MHD115A-035-NG1-BA:
Q: What type of encoder does the MHD115A-035-NG1-BA motor use?
A: This motor is equipped with a digital servo feedback (HSF) encoder for position detection.
Q: What is the continuous torque at standstill for the MHD115A-035-NG1-BA?
A: The MHD115A-035-NG1-BA provides a continuous torque at standstill of 32.0 Nm.
Q: What is the degree of protection for the MHD115A-035-NG1-BA servo motor?
A: This model achieves IP65 protection, offering substantial resistance to dust and water ingress.
Q: What is the holding brake torque of the MHD115A-035-NG1-BA?
A: The MHD115A-035-NG1-BA features a holding brake with a torque of 70.0 Nm.
Q: How is the housing of the MHD115A-035-NG1-BA cooled?
A: This servo motor utilizes natural convection for housing cooling.
