The Bosch Rexroth Indramat MHD115A-024-PP1-BA is a servo motor from the MHD Synchronous Motors series. It features a continuous torque at standstill of 32.0 Nm, a keyed shaft design, and offers IP65 degree of protection. The motor includes a digital servo feedback encoder for absolute position detection and is equipped with a holding brake rated at 70.0 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

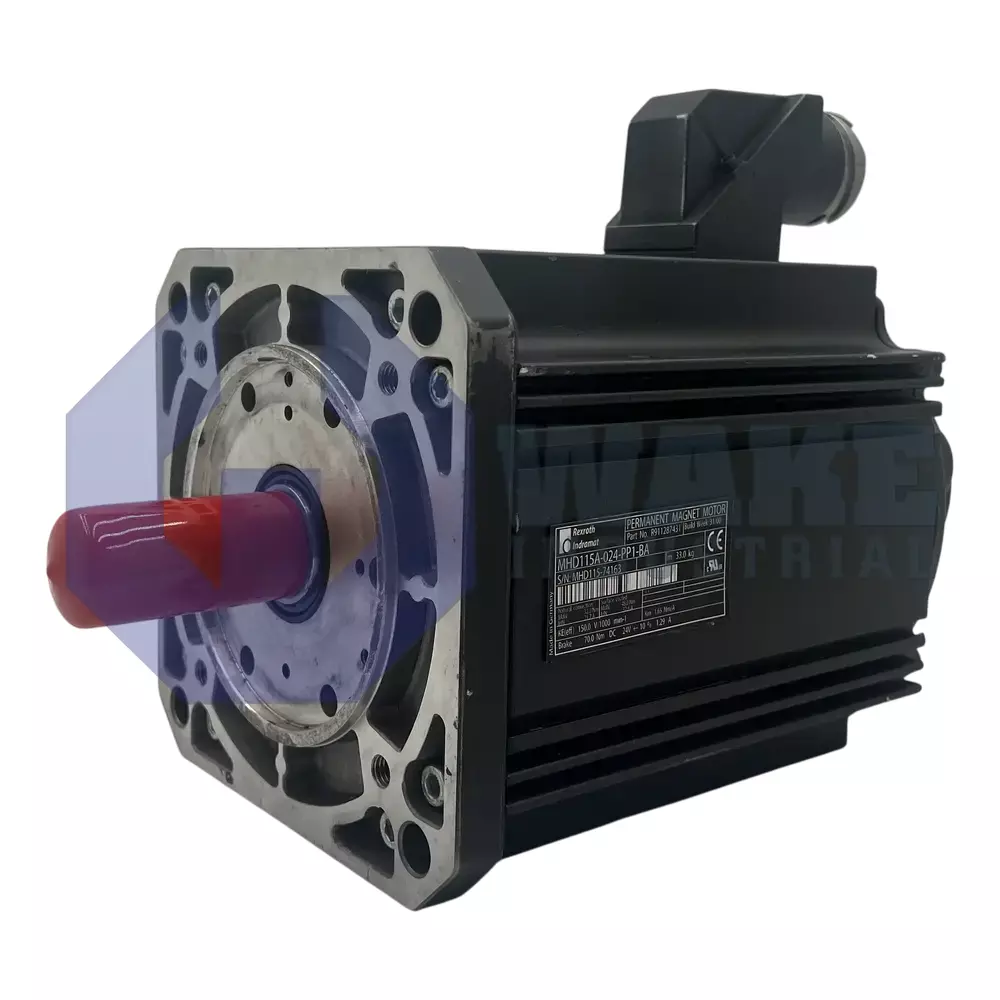

The MHD115A-024-PP1-BA servo motor is produced by Bosch Rexroth Indramat and belongs to the MHD Synchronous Motors series. With a frame size of 115 and a compact A-length housing, the unit is intended for closed-loop automation axes that need consistent torque delivery and accurate position control. It serves as a rotary actuator in material-handling, machine-tool, and packaging equipment where electronic synchronization between multiple shafts is required. The compact housing helps it fit machine layouts where installation space is limited, while synchronous operation supports coordinated motion with other servo axes.
Its mechanical layout uses a centering diameter of 180 mm and a 192 mm square flange for rigid mounting to gearboxes or machine plates. The keyed shaft includes a shaft seal, and the IP65 enclosure helps keep dust and low-pressure water away from internal components. Under continuous duty at standstill, the motor delivers 32.0 Nm, and heat is removed by natural convection, so no external blower is required. The motor is intended for ambient temperatures from 0 to 40 °C, and installation is permitted up to 1000 m above mean sea level. Power is supplied through an output connector on side B of the housing, which can simplify cable routing in tight cabinets.
Position feedback comes from a digital servo encoder with multi-turn absolute feedback of more than 4096 revolutions, and the optical measuring system supports a total accuracy of ±0.5 angular minutes. This arrangement allows the controller to determine rotor position immediately after power-up without a homing cycle. An integrated holding brake supplies 70.0 Nm of static torque so the axis can remain in place during power loss. The motor uses Class F insulation to support thermal endurance during cyclic loading. Storage temperature ranges from -20 °C to +80 °C, and winding code 024 identifies the electrical design used for this version.
Frequently Asked Questions about MHD115A-024-PP1-BA:
Q: What type of encoder is used on the MHD115A-024-PP1-BA motor?
A: This motor uses digital servo feedback with an integrated encoder for precise position detection.
Q: What is the continuous torque at standstill for the MHD115A-024-PP1-BA?
A: The MHD115A-024-PP1-BA provides a continuous torque of 32.0 Nm at standstill.
Q: Does the MHD115A-024-PP1-BA motor include a holding brake?
A: This model is equipped with a holding brake that offers 70.0 Nm of braking torque.
Q: What is the degree of protection rating for the MHD115A-024-PP1-BA?
A: The degree of protection is specified as IP65, which shields the motor from dust and low-pressure water jets.
Q: What type of shaft and sealing does the MHD115A-024-PP1-BA motor have?
A: The shaft design of this motor features a keyed shaft with a shaft seal included.
