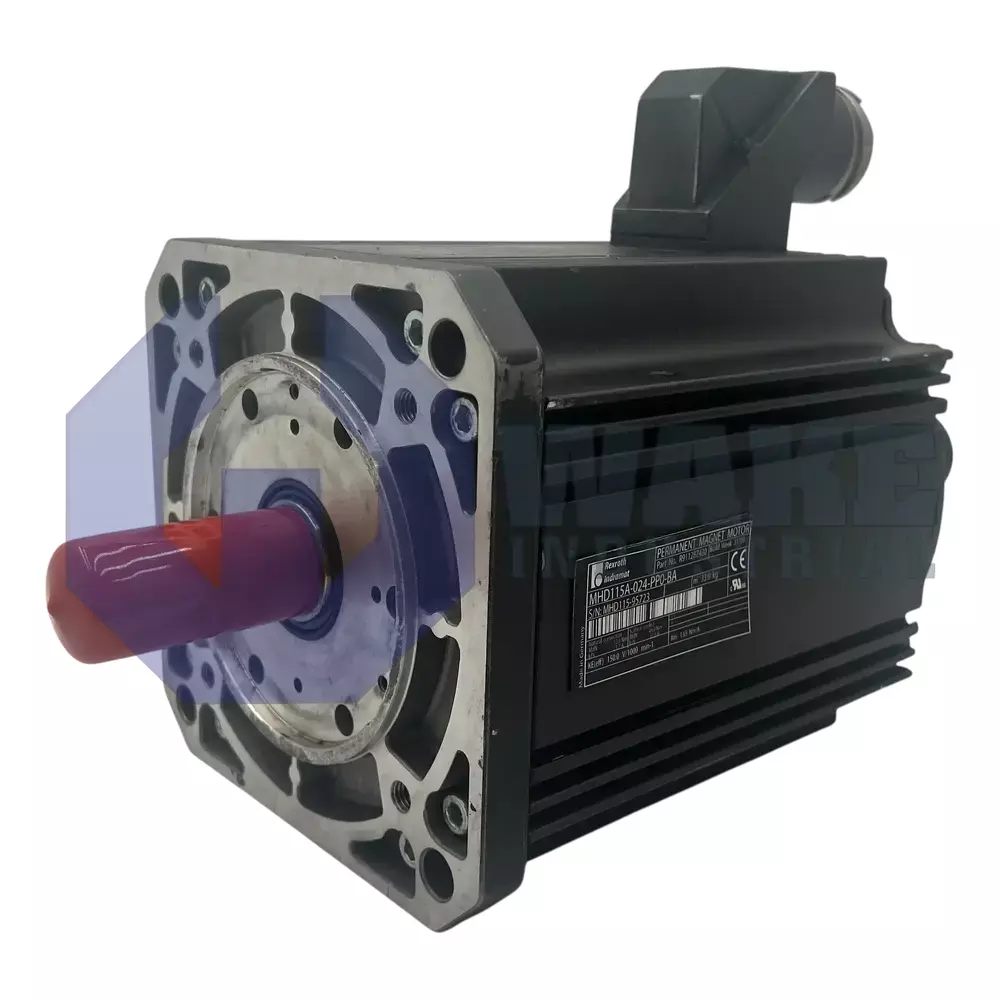

The Bosch Rexroth Indramat MHD115A-024-PP0-BA is a servo motor from the MHD Synchronous Motors series. It features a continuous torque at standstill of 32.0 Nm, a keyed shaft with seal, and comes with natural convection housing cooling. The motor offers IP65 protection, a flange size of 192 mm, and digital servo feedback with integrated encoder for absolute position detection beyond 4096 revolutions.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD115A-024-PP0-BA is a servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It is intended for closed-loop motion axes in industrial automation where repeatable rotary positioning and continuous torque are required. This operating profile suits indexing tables, transfer units, and other machinery that must start, stop, and hold position with consistent accuracy. A keyed shaft delivers mechanical coupling, while an output connector on side B routes power conductors. Absolute position detection across more than 4096 revolutions is handled by an integrated encoder so the drive controller can recover exact rotor angle after power loss. The motor is supplied without a holding brake, relies on class F insulation for winding thermal limits, and can be stored between –20 °C and +80 °C.
The unit provides 32.0 Nm of continuous standstill torque so static loads can be supported without overheating. Its square mounting face follows a 192 mm flange pattern, which supports direct installation on machine interfaces made for this frame size. A sealing system rated at IP65 blocks dust ingress and water jets, allowing cabinet-free installation on machining cells. Rotor position is captured by digital servo feedback, which gives high-resolution angle data for tight velocity loops and accurate position correction during repeated motion. Reliable thermal behavior within the 0 to 40 °C operating range means the motor can deliver rated torque in typical production halls without derating.
A 180 mm centering diameter aligns the stator precisely to drivetrain components and helps limit radial runout during high-speed cycles. System repeatability is maintained because overall positioning error does not exceed ± 0.5 angular minutes, supporting multi-axis interpolation tasks. Installation is approved up to 1000 m above mean sea level, so performance remains predictable in elevated plants. Heat is dissipated through the aluminum frame by natural convection, which keeps the housing free of auxiliary fans and helps preserve a compact motor layout.
Frequently Asked Questions about MHD115A-024-PP0-BA:
Q: What type of shaft and sealing does the MHD115A-024-PP0-BA motor provide?
A: The MHD115A-024-PP0-BA servo motor is made with a keyed shaft and includes a shaft seal for added protection.
Q: What is the continuous standstill torque of the MHD115A-024-PP0-BA?
A: This model achieves a continuous torque of 32.0 Nm at standstill.
Q: What is the IP rating for dust and water protection on the MHD115A-024-PP0-BA?
A: The degree of protection for the MHD115A-024-PP0-BA is rated at IP65.
Q: What type of encoder is integrated in the MHD115A-024-PP0-BA servo motor?
A: Digital servo feedback with an integrated encoder is used for position detection in this model.
Q: How is the housing of the MHD115A-024-PP0-BA cooled?
A: Natural convection cooling is used in the housing of this motor.
