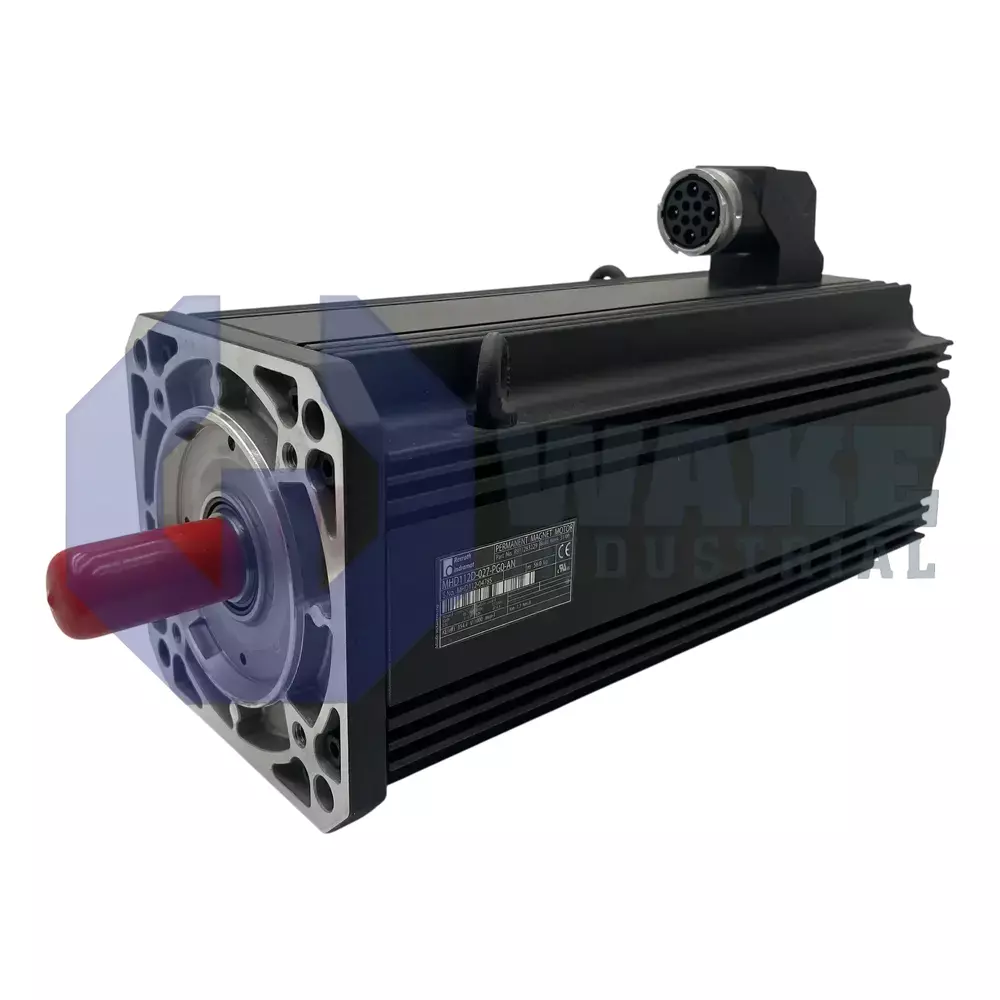

MHD112D-027-PG0-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911283229
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
30 Seconds
The Bosch Rexroth Indramat MHD112D-027-PG0-AN is a servo motor from the MHD Synchronous Motors series with a flange size of 192 mm and a centering diameter of 130 mm. It features a continuous torque at standstill of 48.0 Nm, liquid cooling, and a digital servo feedback encoder with absolute position detection for over 4096 revolutions. This model has a plain shaft design with a shaft seal and lacks a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112D-027-PG0-AN is a servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It drives coordinated motion axes in automated machinery that require rapid acceleration and precise positioning. By coupling directly to the load, the motor supplies controlled torque and speed under electronic drive supervision, forming a compact electromechanical actuator for CNC and assembly equipment. This layout supports responsive servo control in transfer systems, machine tools, and indexing applications.
A centering diameter of 130 mm and a 192 mm square mounting flange set the bolt pattern for rigid installation. The unit belongs to motor size 112 and length code D, giving a stator stack suited for medium continuous duty. At standstill, it can supply 48.0 Nm of continuous torque, so thermal saturation is avoided during static holding or slow indexing. Heat is removed through an internal jacket that provides liquid cooling, enabling higher current density than air-cooled designs. An integrated encoder furnishes digital servo feedback for high-resolution velocity loops and tight synchronous operation. Power enters through an output connector facing side A, which helps simplify cable routing inside the cabinet.
The rotor features a plain shaft so couplings or pulleys can be mounted without keyways. Motion retention during power loss is handled externally because the motor is supplied without a holding brake. A shaft seal limits coolant splash and dust ingress along the journal. Absolute position tracking over more than 4096 revolutions is provided by the encoder’s Absolute (>4096 revolutions) capability, eliminating homing after startup. The winding code 027 identifies the electrical characteristics used with compatible Indramat drives.
Frequently Asked Questions about MHD112D-027-PG0-AN:
Q: What is the continuous torque at standstill for the MHD112D-027-PG0-AN motor?
A: The MHD112D-027-PG0-AN provides a continuous torque of 48.0 Nm at standstill, suitable for demanding applications.
Q: What encoder type is used in the MHD112D-027-PG0-AN servo motor?
A: This motor is equipped with digital servo feedback featuring an integrated encoder for position detection.
Q: What type of housing cooling is utilized by the MHD112D-027-PG0-AN?
A: Liquid cooling is used for the housing of this servo motor, aiding in thermal management during operation.
Q: Does the MHD112D-027-PG0-AN motor include a holding brake?
A: The MHD112D-027-PG0-AN is manufactured without a holding brake.
Q: What shaft design and sealing features does the MHD112D-027-PG0-AN motor have?
A: A plain shaft with a shaft seal is provided on this model for effective power transmission and environmental protection.
