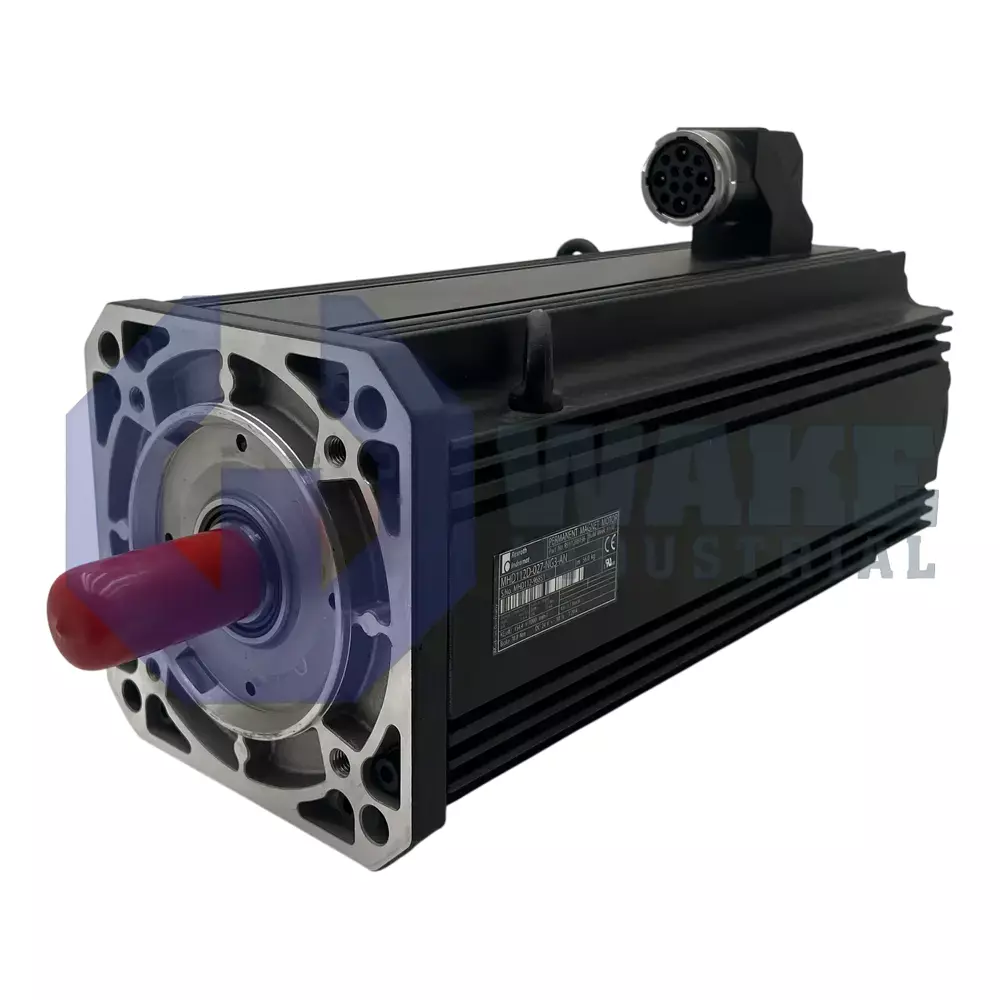

MHD112D-027-NG3-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911286196
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
48 Seconds
The Bosch Rexroth Indramat MHD112D-027-NG3-AN is a servo motor from the MHD Synchronous Motors series with a continuous torque at standstill of 48.0 Nm and a plain shaft design. It features a flange size of 192 mm, a centering diameter of 130 mm, and is equipped with liquid cooling and a holding brake providing 70.0 Nm of torque. The motor uses a digital servo feedback encoder for relative position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112D-027-NG3-AN is a servo motor built by Bosch Rexroth Indramat within the MHD Synchronous Motors series. It converts drive controller current into mechanical rotation for positioning axes, gantries, and transfer stations in automated cells. Through the series’ standardized mechanical interface, the unit integrates readily into liquid-cooled machine modules where continuous torque density and closed-loop feedback are required. Its synchronous motor design also supports accurate speed regulation and repeatable positioning during cyclic machine operation.
Installation geometry includes a centering diameter of 130 mm, which locates the stator concentrically to adjoining housings. A flange size of 192 mm provides the bolt circle for rigid attachment and even load distribution. At standstill, the motor delivers 48.0 Nm of continuous torque, so it can sustain load without excessive heating during slow or static cycles. The housing uses liquid cooling, allowing waste heat to be removed through an external circuit instead of relying on ambient airflow. This cooling method helps the motor operate in enclosed machine sections where free air movement is limited. The series-specific frame code 112 places the motor in a medium-power size range with a predictable inertia and torque envelope.
Dynamic arrest is handled by an integrated brake rated for 70.0 Nm, enabling vertical loads to be secured when the drive is disabled. Output power is transmitted through a plain shaft, so couplings or pulleys can be mounted without key geometry that might concentrate stress. Rotor position is reported through digital servo feedback (HSF), supplying high-resolution incremental data for relative position tracking and stable speed control. Electrical characteristics are matched to winding code 027, which sets resistance and inductance values so the drive can apply appropriate current and voltage limits. This arrangement supports controlled stopping, consistent motion response, and reliable integration with the axis transmission components.
Frequently Asked Questions about MHD112D-027-NG3-AN:
Q: What type of encoder is used in the MHD112D-027-NG3-AN motor?
A: The MHD112D-027-NG3-AN uses a digital servo feedback (HSF) encoder for position feedback.
Q: What cooling method does the MHD112D-027-NG3-AN motor utilize?
A: This model is equipped with liquid cooling for its housing.
Q: What is the holding brake torque of the MHD112D-027-NG3-AN?
A: The holding brake on the MHD112D-027-NG3-AN provides a torque of 70.0 Nm.
Q: What is the flange size of the MHD112D-027-NG3-AN motor?
A: The flange size for this motor is 192 mm.
Q: What is the continuous torque at standstill for the MHD112D-027-NG3-AN?
A: This motor provides a continuous torque of 48.0 Nm at standstill.
