The Bosch Rexroth Indramat MHD112D-024-PP3-BN is part of the MHD Synchronous Motors series and features a liquid-cooled housing with a keyed shaft and IP65 degree of protection. This servo motor provides a continuous torque of 48.0 Nm at standstill, a holding brake torque of 70.0 Nm, and uses digital servo feedback with an integrated encoder for absolute position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

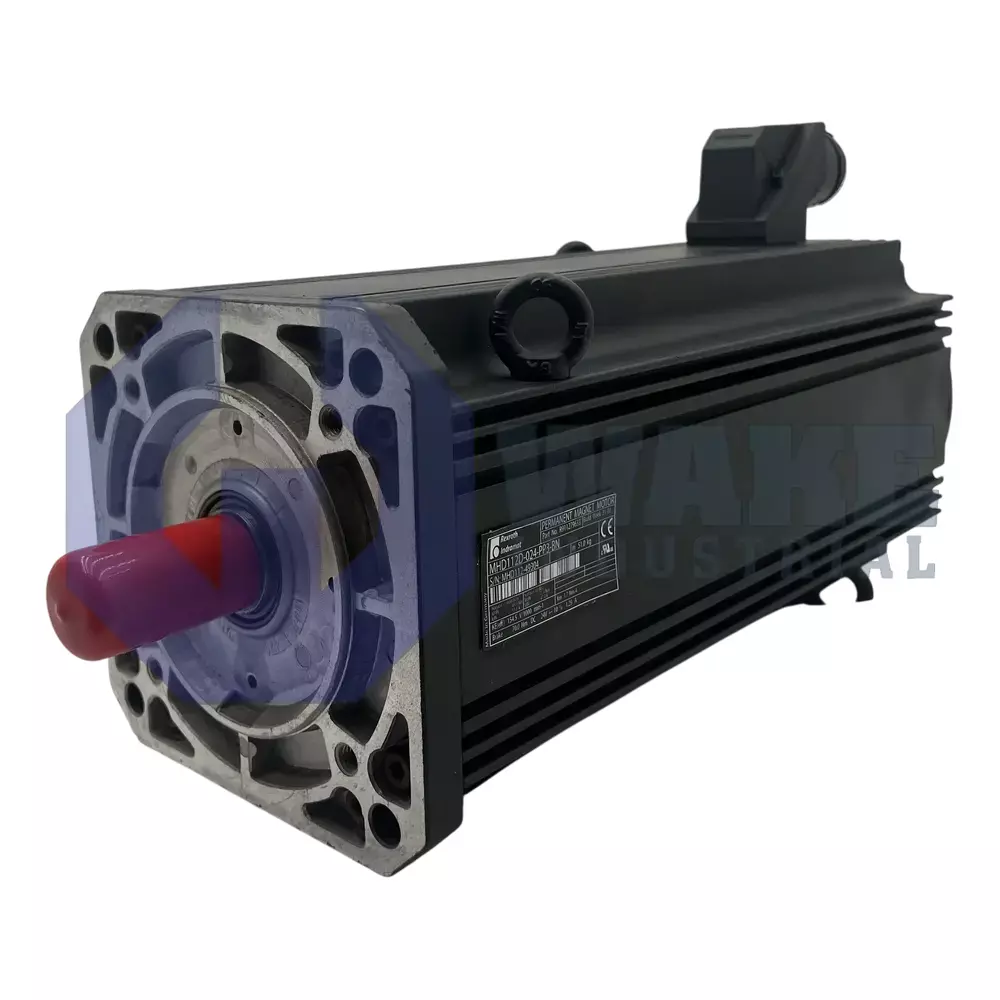

The MHD112D-024-PP3-BN is a servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It integrates a digital servo feedback encoder to supply absolute position data to the drive controller, allowing closed-loop motion of packaging gantries, metal-cutting spindles, and transfer axes. The unit’s keyed shaft, centering shoulder, and flange interface are dimensioned to mate directly with precision gearboxes and couplings, giving machine builders a compact source of regulated rotary torque.
At standstill, the motor delivers 48.0 Nm continuously. Liquid flow through the housing removes copper and stator heat, and the liquid cooling circuit enables full output during operation. An enclosure rating of IP65 blocks dust ingress and water jets so the motor can be mounted outside sealed cabinets. The centering diameter measures 130 mm, while the square flange spans 192 mm, providing a stable seat on machine frames. Class F insulation tolerates winding temperatures up to 155 °C, and the 024 winding code matches drives that supply the required current and voltage. The motor length is coded D, and size code 112 indicates a stator diameter that balances inertia with acceleration capability. A shaft seal protects the internal bearings, and the power leads exit toward side B through an output connector. Optical measurement inside the feedback module enhances resolution during velocity loops.
A holding brake rated at 70.0 Nm prevents back-driving when power is removed, which is useful on vertical or indexing axes. System accuracy is specified at ± 0.5 angular minutes, so commanded moves remain within a narrow positional window. The motor operates in ambient temperatures from 0 to 40 °C and may be stored between −20 and 80 °C without damage. Absolute feedback remains valid over more than 4096 revolutions, reducing homing cycles after shutdown. Installation is permitted up to 1000 m above mean sea level, and the keyed output couples directly to loads without external brakes or clutches.
Frequently Asked Questions about MHD112D-024-PP3-BN:
Q: What kind of encoder does the MHD112D-024-PP3-BN motor have?
A: The MHD112D-024-PP3-BN motor uses digital servo feedback with an integrated encoder for precise positioning.
Q: Does the MHD112D-024-PP3-BN have a holding brake?
A: Yes, this model comes with a holding brake that has a holding torque of 70.0 Nm for secure static positioning.
Q: What is the protection rating of the MHD112D-024-PP3-BN motor?
A: The degree of protection is rated at IP65, meaning it is dust-tight and protected against water jets.
Q: How is the MHD112D-024-PP3-BN motor cooled?
A: This servo motor is equipped with liquid cooling to efficiently dissipate heat during operation.
Q: What are the allowed operating and storage temperature ranges for the MHD112D-024-PP3-BN?
A: The MHD112D-024-PP3-BN can operate in ambient temperatures from 0 to 40 °C and can be stored between -20 and +80 °C.
