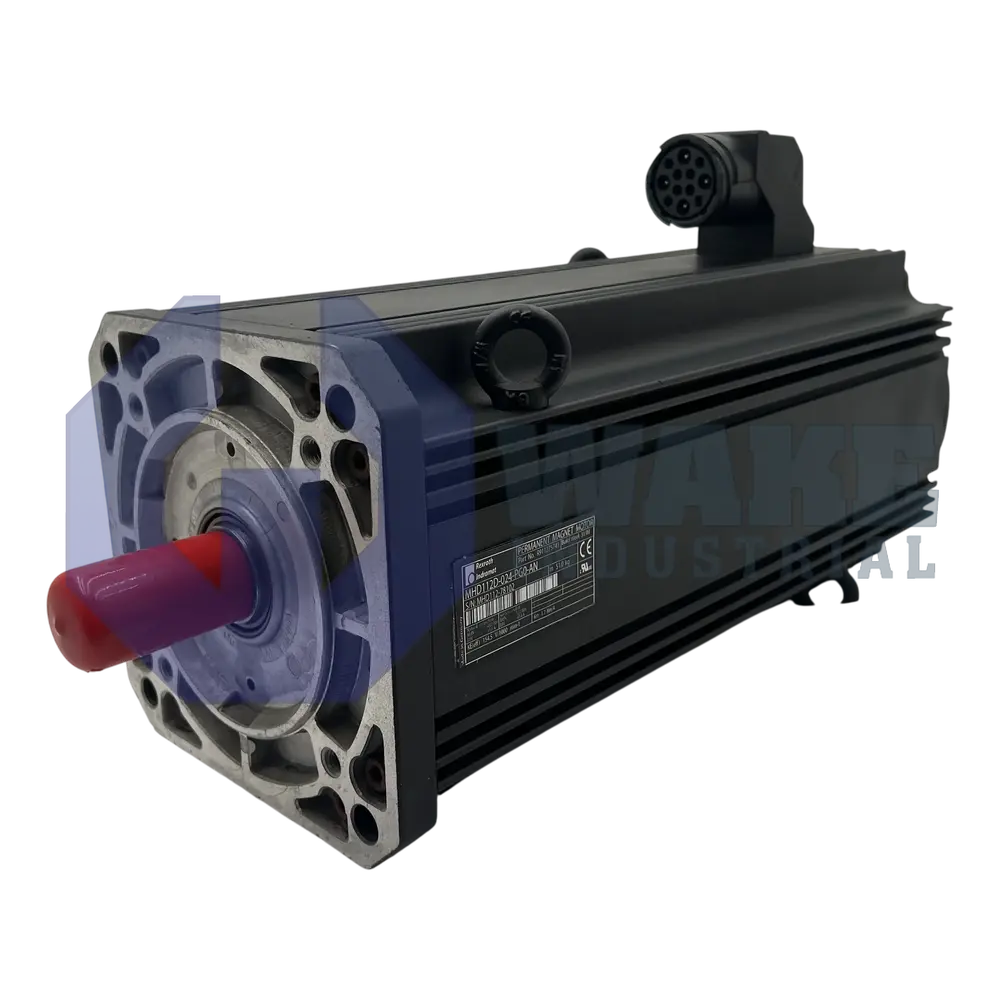

The Bosch Rexroth Indramat MHD112D-024-PG0-AN is a servo motor from the MHD Synchronous Motors series. It features liquid cooling, IP65 protection, and offers a continuous standstill torque of 48 Nm. The motor has a flange size of 192 mm, a centering diameter of 130 mm, and comes with digital servo feedback and an integrated encoder for absolute position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat supplies the MHD112D-024-PG0-AN in the MHD Synchronous Motors series. This servo motor, which has size code 112 and motor length D, is built for closed-loop axis control in assembly lines, packaging equipment, and other automated machinery. Position feedback comes from a digital servo feedback unit with an integrated encoder, so the drive controller can regulate motion without external transducers. The motor uses a plain shaft to transmit torque to the load, and it is supplied without a holding brake, so any static holding force must come from drive torque or external machine hardware when power is removed.
The motor provides a continuous stall torque of 48.0 Nm, which supports heavily loaded rotary axes during energized standstill. Heat from the windings is removed through liquid cooling, which helps the motor maintain stable output during long duty cycles. The housing is rated IP65, so dust and low-pressure water jets are kept away from internal parts. A flange diameter of 192 mm supports mounting to compatible machine interfaces, and insulation class F allows winding temperatures up to 155 °C before derating. Optical measurement in the feedback head improves position resolution and supports accurate closed-loop operation.
A centering diameter of 130 mm helps align the motor concentrically with adjoining machine parts. Feedback accuracy of ± 0.5 angular minutes supports precise positioning, and the permitted operating ambient is 0 to 40 °C. When the motor is not in service, storage is allowed from -20 to +80 °C without damage to the magnets or insulation. Installation is permitted up to 1,000 m above mean sea level, and power is connected on side A through an output connector. Winding code 024 is used for the electrical design paired with absolute position detection exceeding 4096 revolutions.
Frequently Asked Questions about MHD112D-024-PG0-AN:
Q: What is the continuous torque at standstill for the MHD112D-024-PG0-AN motor?
A: This motor features a continuous torque at standstill rating of 48.0 Nm for applications needing constant holding power.
Q: What is the shaft design of the MHD112D-024-PG0-AN motor?
A: The shaft design is a plain shaft with an integrated shaft seal on this model.
Q: What type of housing cooling is used on the MHD112D-024-PG0-AN?
A: The MHD112D-024-PG0-AN uses liquid cooling for housing temperature regulation.
Q: What type of encoder and measurement method does the MHD112D-024-PG0-AN motor use?
A: This motor provides digital servo feedback with an integrated encoder, utilizing optical measuring methods.
Q: What is the IP rating for the MHD112D-024-PG0-AN motor?
A: The degree of protection is rated at IP65, offering resistance to dust and water ingress.
