Product Description:

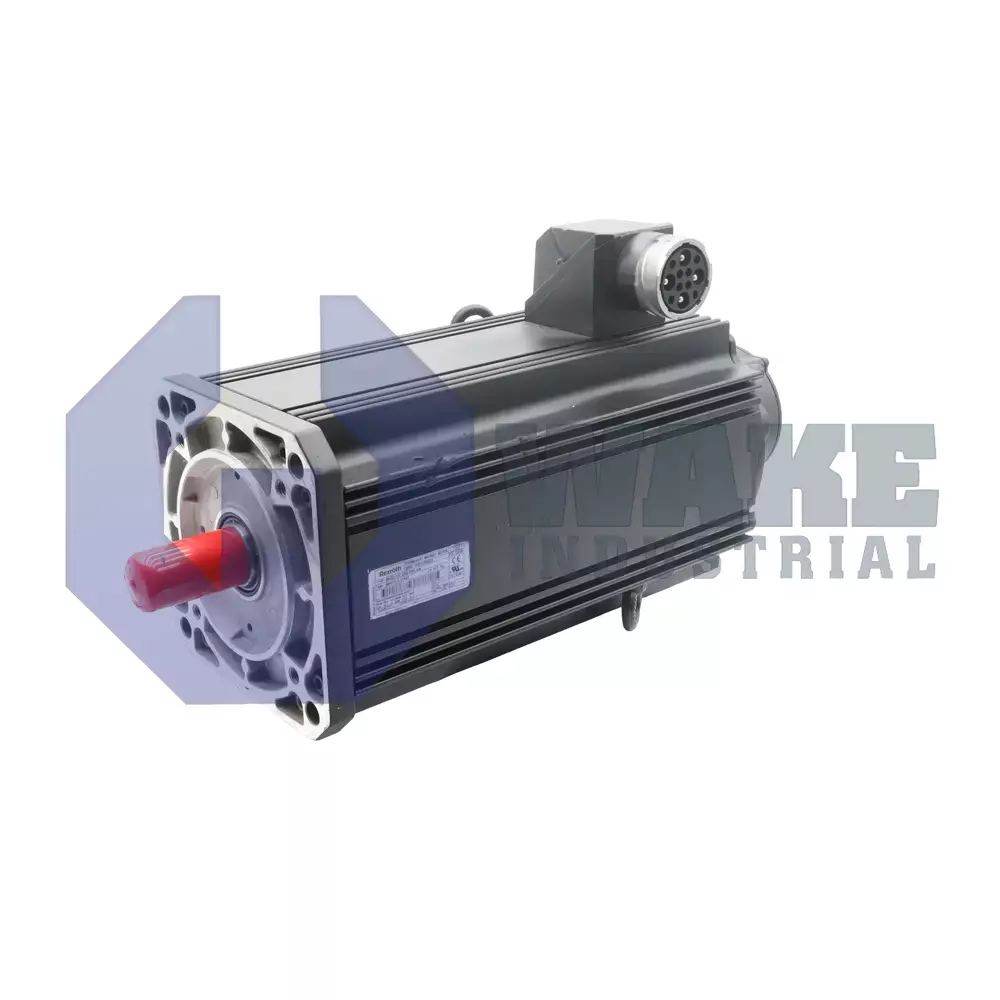

The MHD112C-024-PP0-LN is a servo motor manufactured by Bosch Rexroth Indramat as part of the MHD Synchronous Motors series. The unit uses a 112 frame size with C length to provide controlled rotary motion for positioning axes in automated assembly lines, packaging stations, machining centers, and similar equipment that depends on repeatable axis movement. Its job in industrial automation is to convert drive commands into repeatable torque and speed so that tooling follows commanded paths with consistent accuracy during indexing, feeding, and synchronized transfer motions.

Its continuous stall torque of 38.0 Nm helps the axis hold a stationary load, and a flange pattern measuring 192 mm fits standard machine plates. The rotor is centered by a 130 mm pilot for coaxial alignment with gearboxes, and the housing is rated IP65 to resist dust and water jets. Heat is removed by liquid cooling, while the keyed shaft transmits torque and the shaft seal helps limit lubricant escape. The power connector is oriented to the left side of the stator for straightforward cable routing, and because the motor is supplied without a holding brake, stationary loads must be secured by external clamping or servo torque. Optical measurement verifies rotor position through the integrated digital encoder.

For fine positioning, the motor provides system accuracy of ± 0.5 angular minutes, and digital servo feedback returns absolute feedback for more than 4096 revolutions to the drive. The winding uses Class F insulation, which helps the motor tolerate normal winding heat during sustained duty. The unit operates continuously from 0 to 40 °C and can be stored from -20 to +80 °C. Installation is permitted up to 1000 meters above mean sea level, and the liquid-cooled housing helps control temperature when ambient airflow is limited inside enclosed machine spaces.
