Product Description

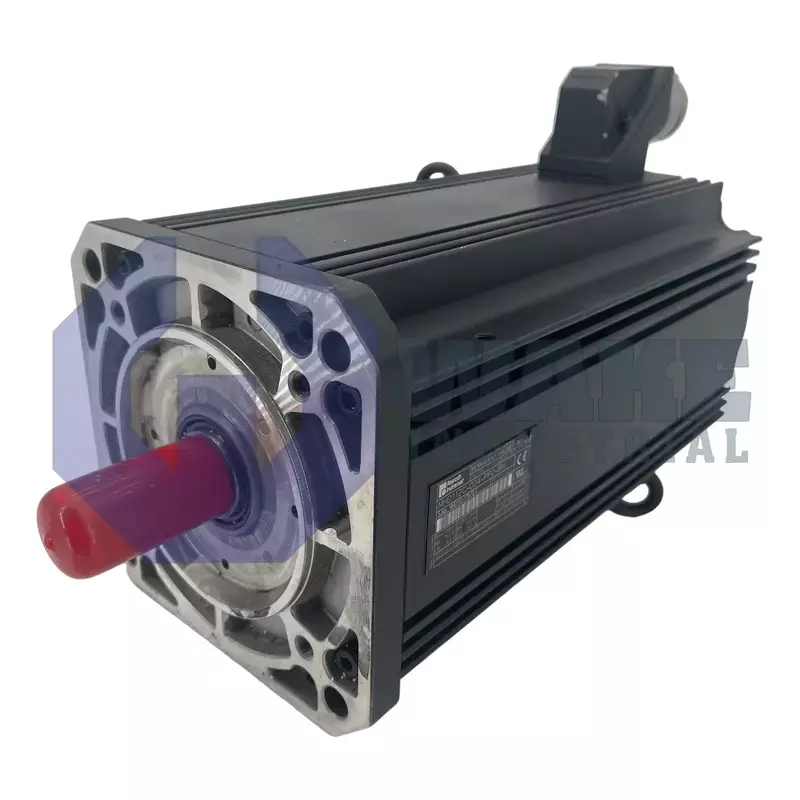

The Bosch Rexroth MHD series MHD112C-024-PP0-BN is a permanent-magnet synchronous motor which features electronic commutation. Salient features of MHD motors include easy cabling, installation in any desired position, quick startup, easy attachment to machines, reliable operation under adverse conditions and overload protection. Typical fields of applications for the MHD112C-024-PP0-BN include handling, machine tools and automation. As per the motor type code, the motor size is 112, the motor length is C and the winding code is 024. Diameter of the motor is 130 millimeters and the length of the motor is 458 millimeters. Output direction of the power connector on the motor is side B. Shaft of the MHD112C-024-PP0-BN is designed with a key as per DIN 6885-1 and includes shaft sealing ring. The motor features digital servo feedback with integrated multiturn absolute encoder.

The MHD112C-024-PP0-BN must be installed, operated and serviced according the guidelines present in the documentation which Bosch provides for the motor. If a received motor is damaged or is defected, then it must not be installed or put into operation. Personnel handling the motor should be trained and qualified for working on it. Any drive which is connected to the MHD112C-024-PP0-BN should be programmed before motor startup to ensure proper motor operation. Degree of protection offered by the motor housing is IP65 and the hosing is coated with black varnish as per RAL 9005. Insulation class of the motor is F. A built-in holding brake is not available on the MHD112C-024-PP0-BN. The motor is cooled through natural convection or surface cooling. The permissible storage temperature range is -20 to 80 degrees Celsius and the permissible ambient temperature for operation is 0 to 40 degrees Celsius. The MHD112C-024-PP0-BN can be shipped to any address globally with a one-year warranty period from Wake Industrial.
