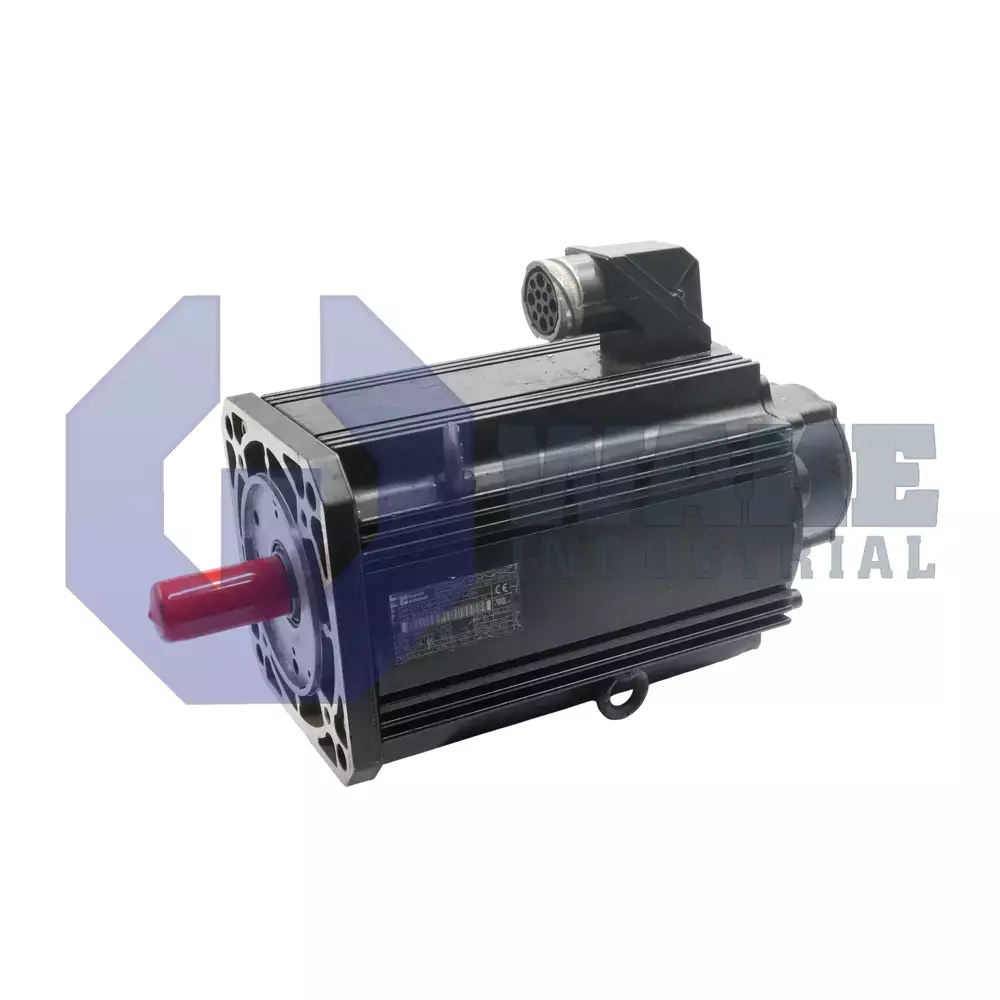

MHD112B-058-PG1-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911276732
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
59 Seconds
The Bosch Rexroth Indramat MHD112B-058-PG1-AN is a servo motor from the MHD Synchronous Motors series, featuring a continuous torque at standstill of 28.0 Nm and equipped with a plain shaft and shaft seal. It uses liquid cooling and comes with a holding brake providing 22.0 Nm of torque. The motor has a flange size of 192 mm and a digital servo feedback system with integrated encoder for absolute position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112B-058-PG1-AN is a servo motor built by Bosch Rexroth Indramat and supplied within the MHD Synchronous Motors series. As a brushless AC drive element, it converts electrical energy from a matched inverter into controlled rotary motion for positioning and feed axes in automated machinery. The motor belongs to size 112 with length code B, and winding code 058 sets the electrical characteristics for mid-range speed and torque demands in production equipment. In closed-loop motion systems, this arrangement helps the connected drive respond smoothly to changing loads and commanded speed changes.
At stall, the rotor can develop a continuous torque of 28.0 Nm, giving the axis solid force for holding and low-speed process work without excessive thermal stress. Mechanical centering during installation is simplified by the 130 mm pilot diameter, and the square mounting face matches a flange of 192 mm, which fits common motor adapter patterns. Thermal loading is controlled by liquid cooling channels in the stator housing, allowing higher continuous current than similarly sized motors that rely only on ambient air. Power conductors terminate in an output connector mounted on side A, which helps keep cable routing orderly inside compact machine frames. A digital servo feedback system is integrated for real-time speed and position data, and the shaft seal helps reduce the risk of coolant or oil entering the bearing area.
The integral holding brake supplies 22.0 Nm of mechanical holding torque to keep the axis in place when drive power is removed. The feedback system stores an absolute (>4096 revolutions) reference, so multi-turn position information remains available after shutdown and restart. Torque is transmitted through a plain shaft, which works well with precision hubs and other backlash-conscious coupling elements. The shaft seal also supports use in machine areas where moisture, coolant mist, or light oil exposure is common.
Frequently Asked Questions about MHD112B-058-PG1-AN:
Q: What shaft design does the MHD112B-058-PG1-AN servo motor have?
A: The MHD112B-058-PG1-AN features a plain shaft design for precise rotational movement.
Q: What type of housing cooling does the MHD112B-058-PG1-AN servo motor use?
A: This model is equipped with a liquid cooling housing, supporting efficient temperature control in demanding applications.
Q: What is the continuous standstill torque rating for the MHD112B-058-PG1-AN motor?
A: The MHD112B-058-PG1-AN provides a continuous standstill torque of 28.0 Nm.
Q: What type of encoder and position detection does the MHD112B-058-PG1-AN feature?
A: This servo motor has a digital servo feedback system with an integrated encoder capable of absolute position detection over more than 4096 revolutions.
Q: Does the MHD112B-058-PG1-AN include a holding brake, and what is its torque rating?
A: A holding brake is included with this model, offering a holding brake torque of 22.0 Nm.
