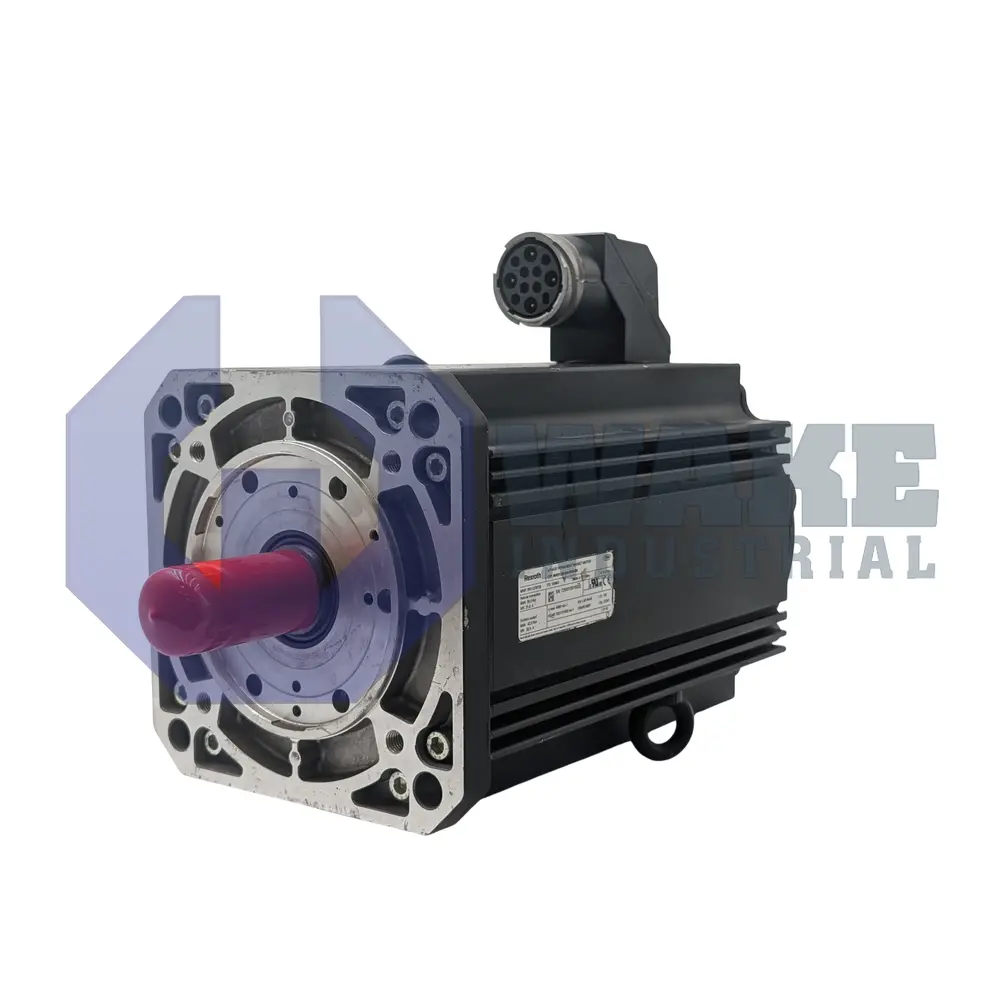

MHD112B-024-PG1-RN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911298585
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
35 Seconds
The Bosch Rexroth Indramat MHD112B-024-PG1-RN is a servo motor from the MHD Synchronous Motors series. It provides a continuous torque at standstill of 28 Nm, features liquid cooling, and comes with a holding brake rated at 22 Nm. The motor has a flange size of 192 mm, a centering diameter of 130 mm, and an IP65 degree of protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112B-024-PG1-RN is a servo motor engineered by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It provides electrically commutated rotary motion for industrial automation axes that need stable torque, high positional fidelity, and direct feedback to a drive controller. The motor is well suited for positioning systems that require repeatable motion during frequent starts, stops, and load changes. Position and velocity signals exit through the feedback channel so the connected drive can monitor rotor motion during closed-loop operation.
This motor belongs to size 112 with a B-length stator and uses winding code 024. It mounts to a machine frame through a 192 mm flange and centers on a 130 mm pilot. A plain shaft with an installed shaft seal couples the load, while the power connector is oriented to the right for simpler cable routing. Continuous stall torque reaches 28.0 Nm, and thermal balance is maintained by liquid cooling that circulates through the housing. The enclosure carries a IP65 rating, and insulation is class F for 155 °C winding protection. A digital servo feedback unit with an integrated optical encoder delivers position data, and overall system accuracy is rated at ±0.5 angular minutes.
An internal holding brake supplies 22.0 Nm of static torque, allowing the axis to remain fixed during power loss or when the drive is disabled. Environmental limits include a storage range of -20 to +80 °C, an operating window of 0 to 40 °C, and a maximum installation altitude of 1000 m above mean sea level. Position detection is absolute (>4096 revolutions), so homing after startup is unnecessary. The encoder uses an optical measurement principle, and the shaft seal helps block fluid ingress during liquid-cooling operation.
Frequently Asked Questions about MHD112B-024-PG1-RN:
Q: What type of encoder does the MHD112B-024-PG1-RN motor have?
A: The MHD112B-024-PG1-RN uses digital servo feedback with an integrated encoder for position detection.
Q: Does the MHD112B-024-PG1-RN have a holding brake, and what is its torque?
A: This motor includes a holding brake that provides a holding torque of 22.0 Nm for secure load retention.
Q: What is the degree of protection offered by the MHD112B-024-PG1-RN?
A: The degree of protection on the MHD112B-024-PG1-RN is rated IP65, making it resistant to dust and low-pressure water jets.
Q: How is the housing of the MHD112B-024-PG1-RN motor cooled?
A: The MHD112B-024-PG1-RN features liquid cooling for its housing, which improves thermal management during operation.
Q: What type of position detection capability does the MHD112B-024-PG1-RN servo motor provide?
A: This model can accurately detect absolute positions over more than 4096 revolutions due to its built-in position detection system.
