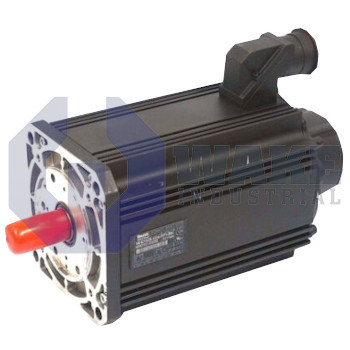

MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Factory Assigned along with a Motor Frame Size number of 192mm Flange Size, 130mm Centering Diameter.

MHD112B-024

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Factory Assigned along with a Motor Frame Size number of 192mm Flange Size, 130mm Centering Diameter.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MHD112B-024 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth Indramat is well known for their MHD series of synchronous motors which have some of the most advanced technical features to cater to the user requirements. To this effect, they have a number of MHD series motors that present the safest and cost-effective options to be used in all kinds of applications.

The MHD112B-024 is a part nomenclature which describes only the most basic common characteristics of this sub-group of five motors with a different type of windings made under the basic part name MHD112B (these are the winding types 024, 027, 035,048 and 058). As such, this The MHD112B-024 describes 112 motor sizes that come with the winding of type 24, as shown in the base code. They have a Motor Frame Length 28.0 Nm with a Centering Diameter of 130mm and Flange Size of 192mm. This motor has a mass of 23.0kg and has a rated speed of 2,500rpm. The electrical characteristic motor indicates a speed of 2000 rpm and its mechanical parameters specify the theoretical maximum torque as 54 Nm at the maximum speed of 4000 rpm. The ambient working conditions of this motor are - a temperature range 0-40 C and the maximum setup height for optimum performance as 1000 MSL.

These are just the common features of this group of motors. A full description would include a few more digits and numerals suffixed to MHD112B-024 that would give out more parameters like the characteristics of the holding brake (which can range from no brake to brakes of 22 Nm/32Nm or 70Nm capacity), the motor encoder output shaft (with or without multi-turn absolute encoder), the type of housing (natural surface cooling with/without protection code IP68), and output direction of connectors, etc.

  • MHD 112B 024
  • MHD 112B-024
  • MHD-112B-024
  • MHD112B-O24
  • MHD112B024
  • MHDII2B-024

MHD112B-024 Technical Specifications

Product Group: MHD
Motor Frame Size: 192mm Flange Size, 130mm Centering Diameter
Motor Frame Length: 28.0 Nm
Winding Code: 024
Motor Encoder: Factory Assigned
Output Shaft: Factory Assigned
Holding Brake: Factory Assigned
Output Direction of Power Connector: Factory Assigned
Housing Type: Factory Assigned
