The Bosch Rexroth Indramat MHD112A-058-NG0-BN is a servo motor from the MHD Synchronous Motors series, featuring a continuous torque at standstill of 15.0 Nm and liquid cooling for the housing. It has a flange size of 192 mm, an IP65 degree of protection, and uses digital servo feedback with optical measurement for position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

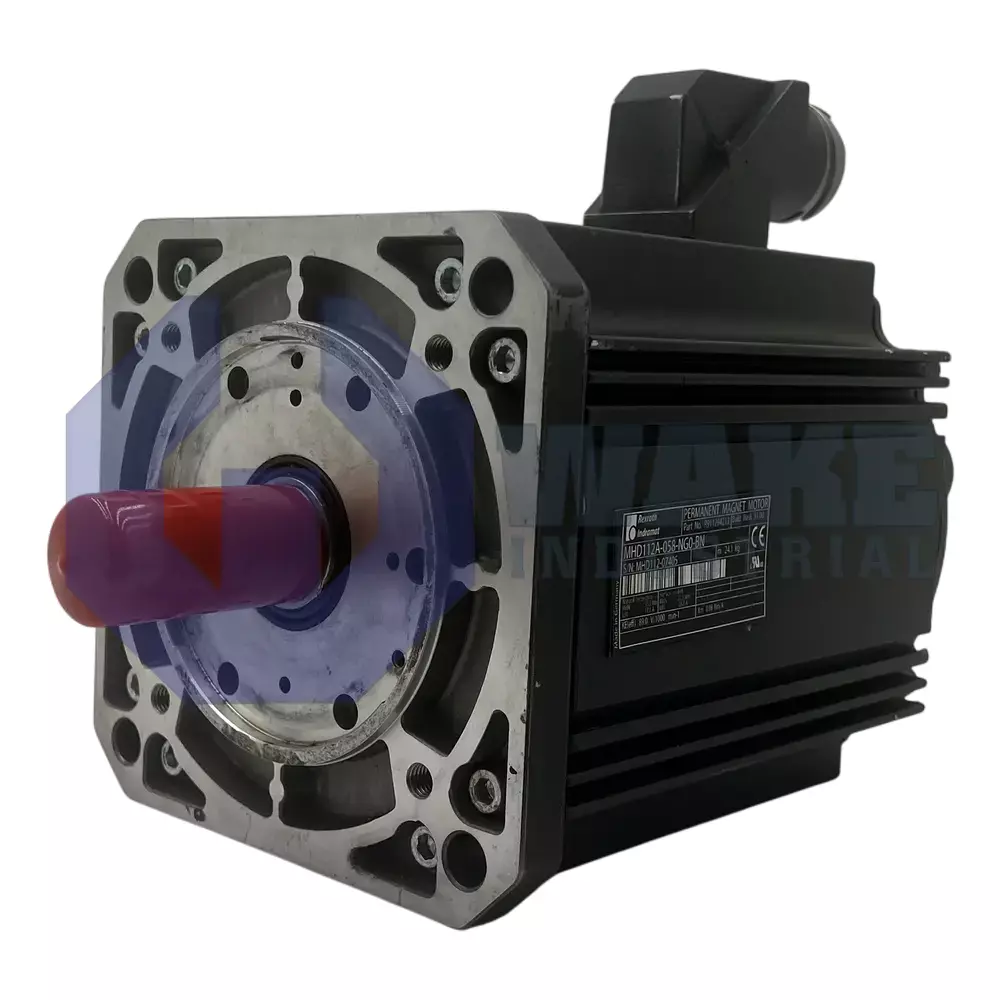

The MHD112A-058-NG0-BN is a servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. Designed for closed-loop industrial axes, the unit converts electrical drive energy into precise mechanical rotation for positioning, feed, or spindle functions. As a servo element, it integrates with drive controllers that monitor feedback to deliver repeatable motion in automated machinery. Its construction follows DIN flange patterns, allowing installation in machining centers, packaging lines, and material-handling equipment across diverse production cells. This layout supports accurate speed regulation and consistent positioning during repeated machine cycles.
The motor delivers a continuous standstill torque of 15.0 Nm, allowing position holding under static load without thermal overload. Heat generated in the stator is removed through liquid cooling, which maintains winding temperature during sustained duty cycles and supports higher power density than air-cooled designs. Rotor position is monitored by a digital servo feedback (HSF) encoder that supplies high-speed data to the drive for precise current control. A centering diameter of 130 mm aligns the housing to gearboxes or couplings, reducing runout during installation. The aluminum enclosure carries an IP65 rating, which helps protect the interior against dust and water jets found on factory floors.
The motor uses a 192 mm square flange and an A-length frame within the 112 size class, offering a compact envelope while preserving torsional stiffness. It operates in ambient temperatures from 0 to 40 °C and can be stored between -20 and +80 °C; operation is permitted up to 1000 m above mean sea level without derating. Its optical relative measurement system provides a system accuracy of ±0.5 angular minutes when integrated with the drive. Winding code 058 matches the drive parameter set, and the motor uses class F insulation. A plain shaft with an integral seal prevents lubricant escape, and power exits toward side B through an output connector. This arrangement keeps the connection area compact and helps with cable routing. The model is supplied without a holding brake.
Frequently Asked Questions about MHD112A-058-NG0-BN:
Q: What type of shaft configuration does the MHD112A-058-NG0-BN feature?
A: This motor is equipped with a plain shaft design and includes a shaft seal for additional protection.
Q: What cooling method does the MHD112A-058-NG0-BN use?
A: The MHD112A-058-NG0-BN motor uses a liquid cooling system for effective heat dissipation during operation.
Q: Does the MHD112A-058-NG0-BN have a holding brake?
A: This model does not include a holding brake as part of its standard configuration.
Q: What is the continuous torque at standstill for the MHD112A-058-NG0-BN?
A: The continuous torque at standstill for this motor is 15.0 Nm.
Q: What encoder type and position detection method are used in the MHD112A-058-NG0-BN?
A: The encoder type is digital servo feedback (HSF) with optical measurement method, providing relative position detection.
