MHD112A-058-NG0-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911289764
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
8 Seconds

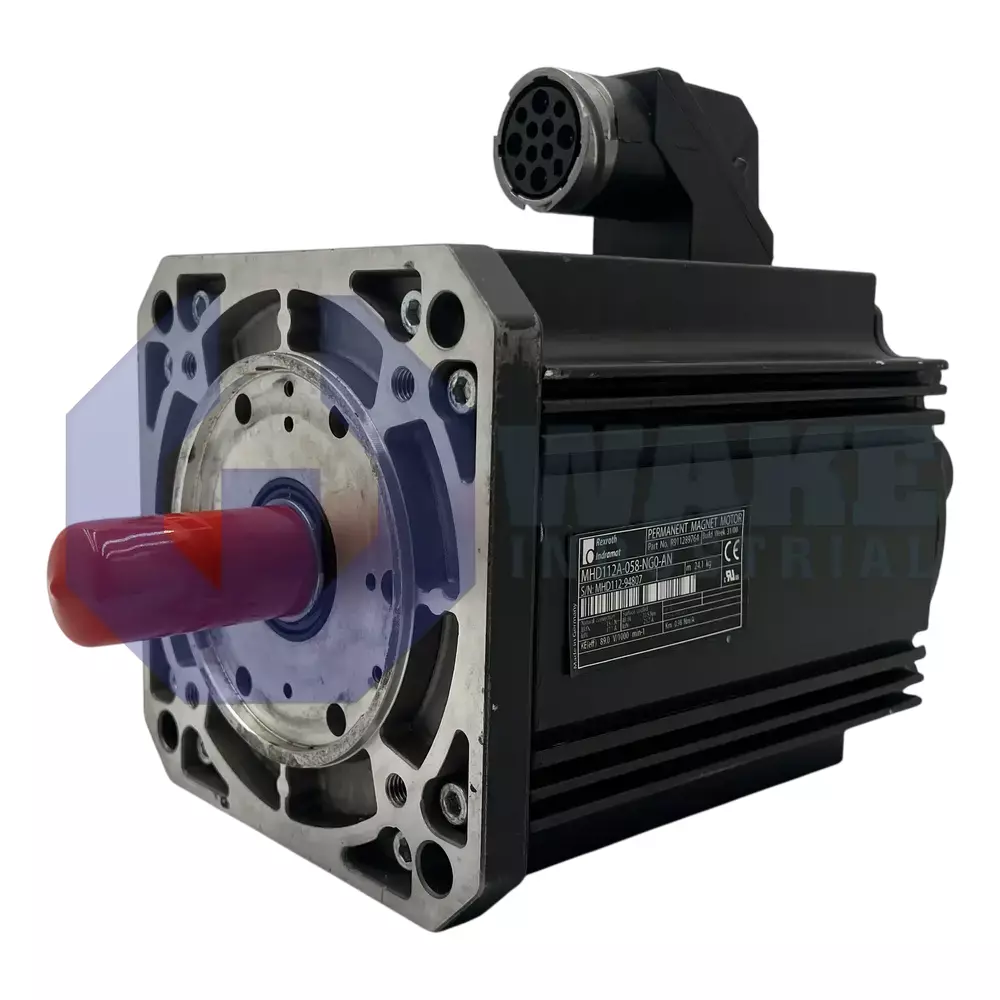

The Bosch Rexroth Indramat MHD112A-058-NG0-AN is a servo motor in the MHD Synchronous Motors series. It features a continuous torque at standstill of 15.0 Nm and uses liquid cooling with a protection rating of IP65. The motor has a 192 mm flange size, a plain shaft with seal, and uses digital servo feedback for relative position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112A-058-NG0-AN is a servo motor manufactured by Bosch Rexroth Indramat and supplied within the MHD Synchronous Motors series. It is intended for closed-loop axis control where precise torque and speed regulation are needed in industrial automation cells, gantries, and packaging equipment. The synchronous design supports quick response and repeatable positioning of mounted loads commanded by an Indramat drive controller. This type of motor is commonly used on feed axes, indexing stations, and transfer systems where smooth motion and repeatable stopping points are required.
The motor produces a continuous standstill torque of 15.0 Nm, providing stable holding force for axes that dwell under load. Its housing carries an IP65 rating, so dust and low-pressure water jets do not interfere with operation when the unit is installed on open machine frames. Heat is removed through liquid cooling, allowing the stator to maintain stable operating temperature during high duty cycles without increasing frame size. Rotor position is monitored by digital servo feedback (HSF), which sends high-resolution increments to the drive controller for tight velocity control. The winding is rated for ambient temperatures from 0 to 40 °C. The motor is supplied without a holding brake, so static load retention must be handled by external mechanisms or drive torque.
A flange diameter of 130 mm aligns the motor concentrically on precision gearboxes, and the mounting interface spans 192 mm on each side to suit the 112 frame size. System repeatability is supported by an optical measurement chain that limits cumulative error to ± 0.5 angular minutes, which helps multi-axis interpolation remain consistent over repeated cycles. For storage, the unit tolerates ambient temperatures from -20 to +80 °C without degrading the Class F insulation. The motor has a plain shaft with a shaft seal, and power conductors exit on side A. The sealed shaft arrangement helps protect internal bearing areas in installations exposed to splash or airborne debris. Relative position detection supports axis startup after power is restored.
Frequently Asked Questions about MHD112A-058-NG0-AN:
Q: What kind of shaft and sealing configuration does the MHD112A-058-NG0-AN feature?
A: This motor features a plain shaft design with a shaft seal, offering smooth operation and protection against contaminants.
Q: What cooling method is used for the housing of the MHD112A-058-NG0-AN motor?
A: The MHD112A-058-NG0-AN is equipped with liquid cooling for its housing, supporting efficient heat dissipation.
Q: What is the continuous torque at standstill for the MHD112A-058-NG0-AN motor?
A: This model provides a continuous torque at standstill of 15.0 Nm.
Q: What type of encoder and position detection method does the MHD112A-058-NG0-AN use?
A: The encoder type is digital servo feedback (HSF) with optical measurement for position detection.
Q: What is the degree of protection for the MHD112A-058-NG0-AN motor?
A: The MHD112A-058-NG0-AN has a degree of protection rated at IP65, which guards against dust and low-pressure water jets.
