The Bosch Rexroth Indramat MHD112A-024-PP2-AN is a servo motor from the MHD Synchronous Motors series with keyed shaft design and IP65 degree of protection. It features liquid cooling, a holding brake with 32.0 Nm torque, and digital servo feedback with integrated encoder. The motor has a continuous torque at standstill of 15.0 Nm and uses Class F insulation.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

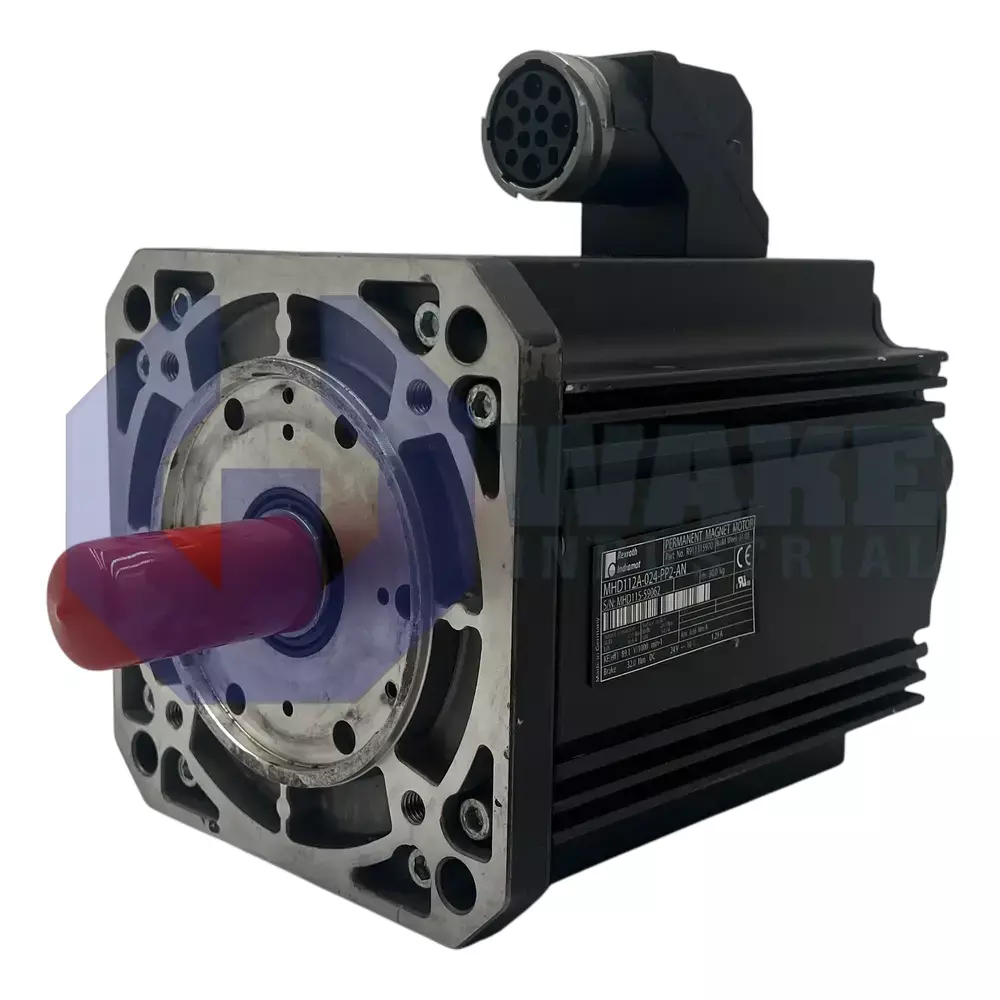

The MHD112A-024-PP2-AN is a servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. It provides rotary motion for automated machinery and is suited to controlled axis applications that require accurate position feedback. This model uses motor size 112 with a 192 mm mounting flange and length code A, giving it a compact axial length with a large mounting face. That combination supports installation on machine axes where flange stiffness and repeatable alignment are important. The shaft is keyed and fitted with a shaft seal, while power is routed to side A through an output connector. Position feedback comes from a digital servo encoder with an optical measuring method that provides absolute data over more than 4096 revolutions. The allowed installation altitude is 1000 m above mean sea level.
During operation, the motor delivers a continuous torque of 15.0 Nm for steady-duty use. Heat from the stator is removed by liquid cooling, which removes heat directly from the housing and helps maintain output in enclosed machines. The IP65 housing blocks dust and water jets, and Class F insulation permits winding temperatures up to 155 °C. The unit operates in ambient air from 0 to 40 °C, and storage is permitted from -20 °C to +80 °C. An integrated holding brake engages when power is removed.
A centering pilot of 130 mm aligns the flange with gearboxes or direct-drive loads and helps reduce runout in precision applications. The spring-applied brake supplies 32.0 Nm of static torque to lock the shaft when control power is removed. Encoder interpolation and machine tolerances yield a total system accuracy of ±0.5 angular minutes, supporting tight positioning loops. Winding code 024 matches the motor to compatible Indramat drives for the expected current, voltage, and speed values.
Frequently Asked Questions about MHD112A-024-PP2-AN:
Q: What type of shaft design does the MHD112A-024-PP2-AN have?
A: This model uses a keyed shaft design for direct mechanical coupling.
Q: What is the continuous torque at standstill for this motor?
A: The MHD112A-024-PP2-AN provides a continuous torque of 15.0 Nm at standstill.
Q: What cooling method is used for the MHD112A-024-PP2-AN motor?
A: This servo motor features liquid cooling for its housing.
Q: Does the MHD112A-024-PP2-AN motor come with a holding brake?
A: A holding brake is included with a holding torque of 32.0 Nm.
Q: What type of position feedback does the encoder on this motor offer?
A: The encoder provides digital servo feedback with absolute position detection exceeding 4096 revolutions.
